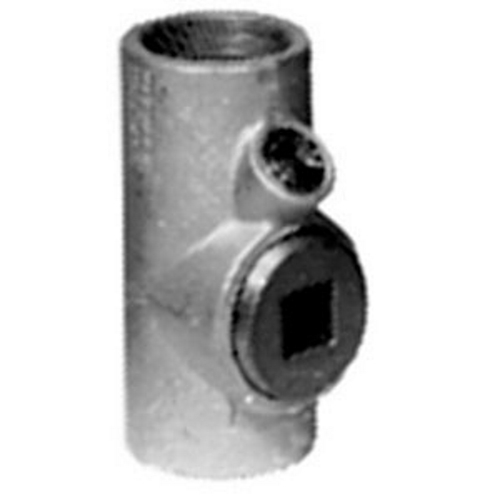

EYF200-AL Unilets Dust-Ignitionproof Explosionproof Raintight Conduit Sealing Fitting, 2 in, For Use With IMC/Threaded Rigid Metallic Conduit, Almag 35 Aluminum, Epoxy Powder Coated
- MFR:
- Appleton Electric
- MFR #:
- EYF200-AL
- UPC:
- 781381600033
- Item #:
- 353026
EYF200-AL Unilets Dust-Ignitionproof Explosionproof Raintight Conduit Sealing Fitting, 2 in, For Use With IMC/Threaded Rigid Metallic Conduit, Almag 35 Aluminum, Epoxy Powder Coated
- MFR #:
- EYF200-AL
- UPC:
- 781381600033
- Item #:
- 353026
UNILETS EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting, Size: 2 IN, Material: Almag 35 Aluminum, Finish: Epoxy Powder Coat, Connection: Female Threaded, Turning Radius: 2.31 IN, Length: 6.13 IN, Width: 2.88 IN, St
Manuals & Documentation
| Catalog Number | EYF200-AL |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Rigid Metal Conduit and IMC |
| Connection | Female Threaded |
| Finish | Epoxy Powder Coat |
| Material | Almag 35 Aluminum |
| Special Features | For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub; Close radius type for sealing vertical or horizontal con |
| Standard | UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181 |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381600033 |
| GTIN | 00781381600033 |
| Item Type | EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting |
| Length | 7.5000 |
| Length UOM | Inch |
| Width | 4.6000 |
| Width UOM | Inch |
| Height | 3.6000 |
| Height UOM | Inch |
| Weight | 4.030 |
| Weight UOM | Pounds |
| Size | 2 |
