SolaHD

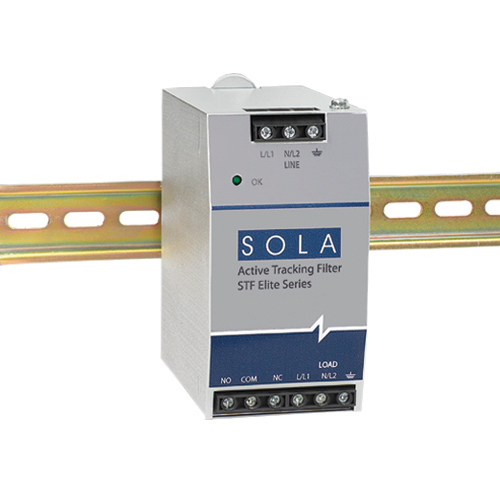

STFE100-10N STFE Elite Active Tracking Filter, 10 A at 120 V AC, 100 kHz to 50 MHz Bandwidth, 2 Wires, Metal

MFR:
SolaHD
MFR #:
STFE100-10N
UPC:
783472029129
Item #:
352159
Manuals & Documentation
Catalog Number STFE100-10N
Manufacturer SolaHD
Brand SolaHD
Country of Origin Mexico
Made in USA No
Application Control Panels, Factory Automation Installations, Point of Use Industrial Equipment, Programmable Logic Controllers, Dedicated Industrial and Machine Tools Equipment
Connector Screw Terminal Connections, 10-16 AWG, IP20
Enclosure Metal
Frequency Rating 47-63 HZ
Input 240, Single Phase V
Mounting Din Rail
Special Features Series connected DIN Rail mounted filter, Durable metal mount clip, UL Listed surge current capacity -45,000 Amps, Transient protection in all modes (L-N, L-G, and N-G), Single phase applications up to 20 Amp, Operating temperature from -40 DEG C to +50 DEG C, Screw terminal connections, Reliable and convenient screw clamp connections accept 10-16 AWG wire and meet IP20 specifications for ingress protection, LED status indication, Form C contact for remote monitoring
Standard cULus Recognized Component: UL 1449, 3rd Edition, Type 4 locations, UL 1283, CSA C22.2 No. 8; CE rated: EN 61643-11:2002, RoHS Compliant
UPC 783472029129
GTIN 00783472029129
Item Type STFE Elite Series - Active Tracking Filters with Surge Protection
Length 4.56
Width 2.56
Height 4.88
