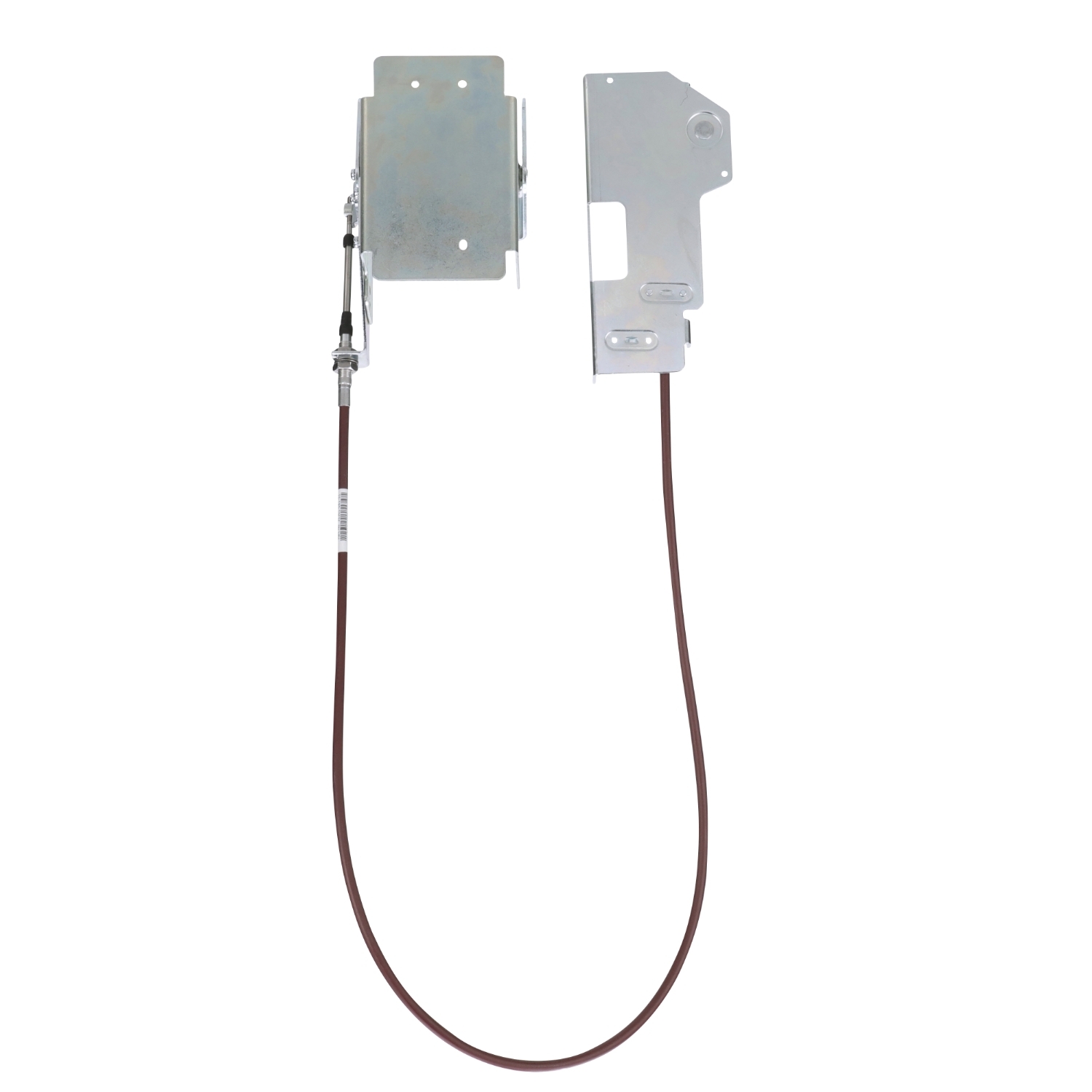

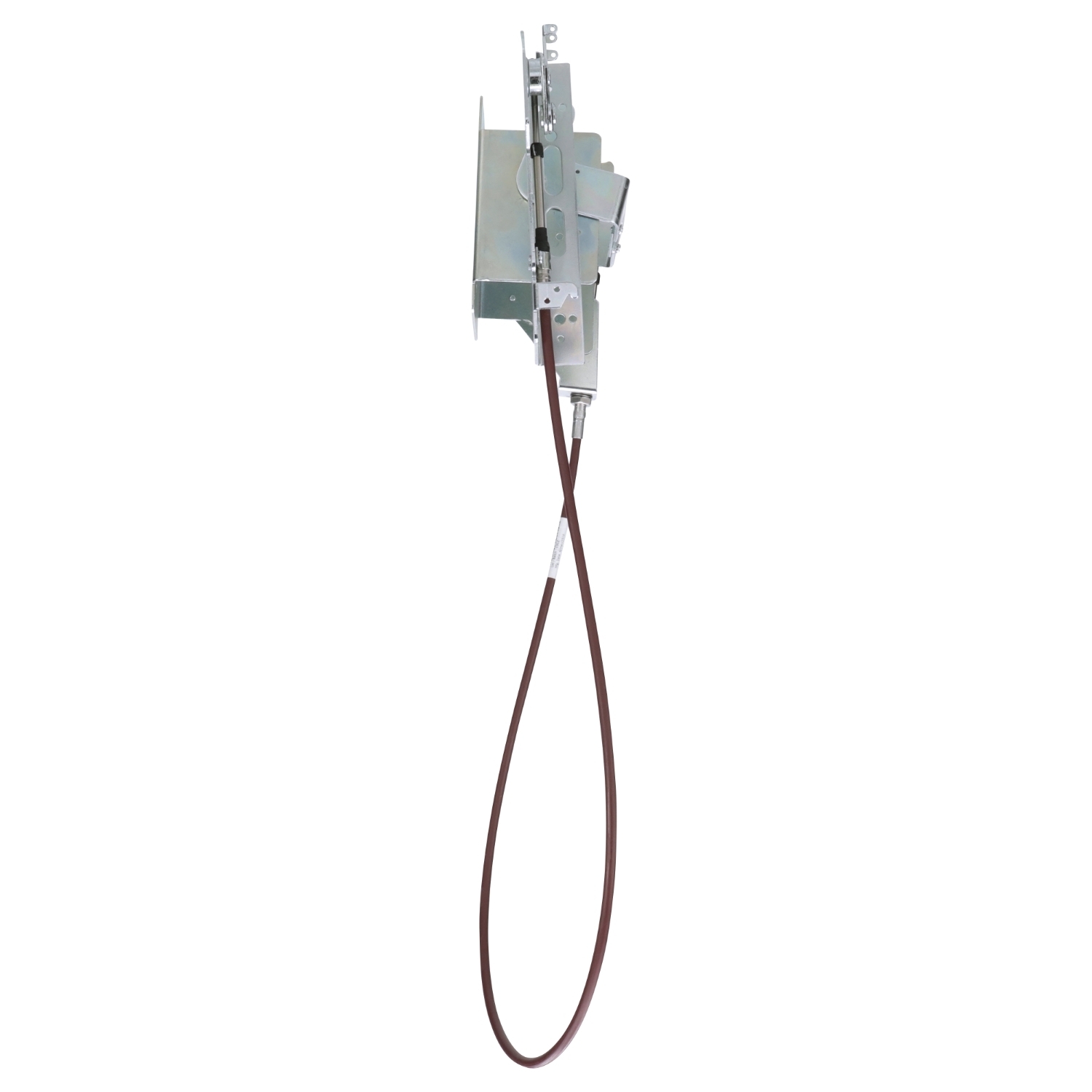

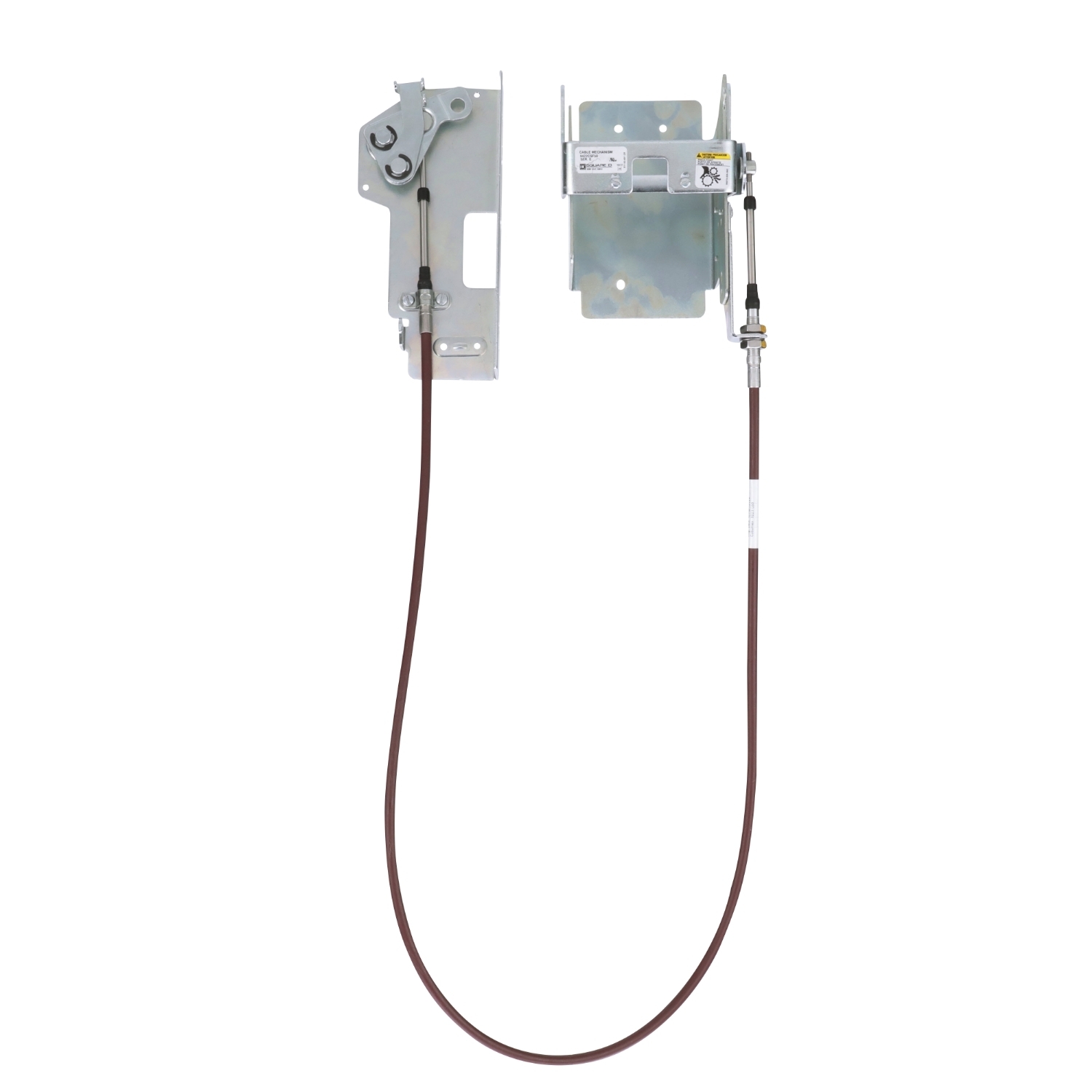

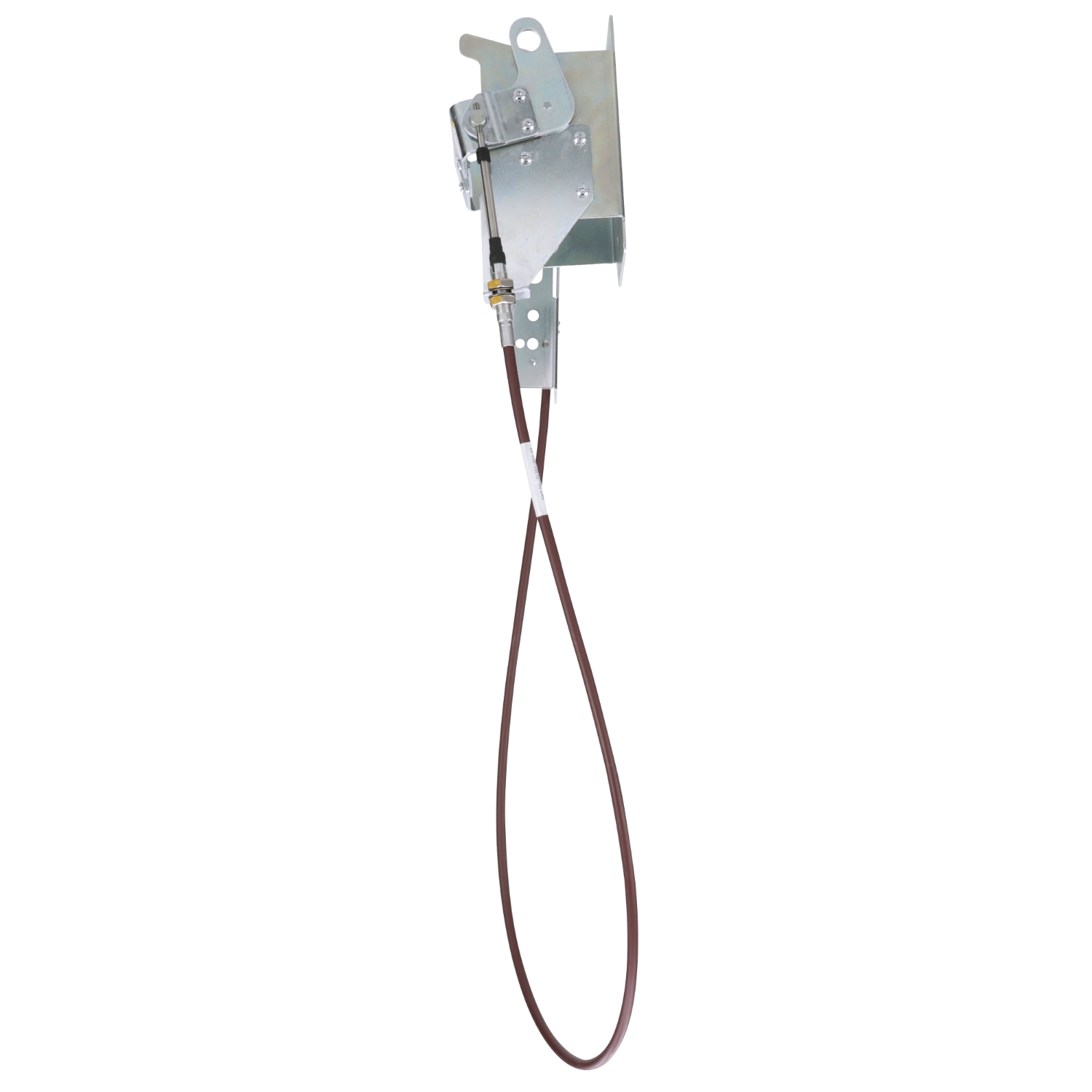

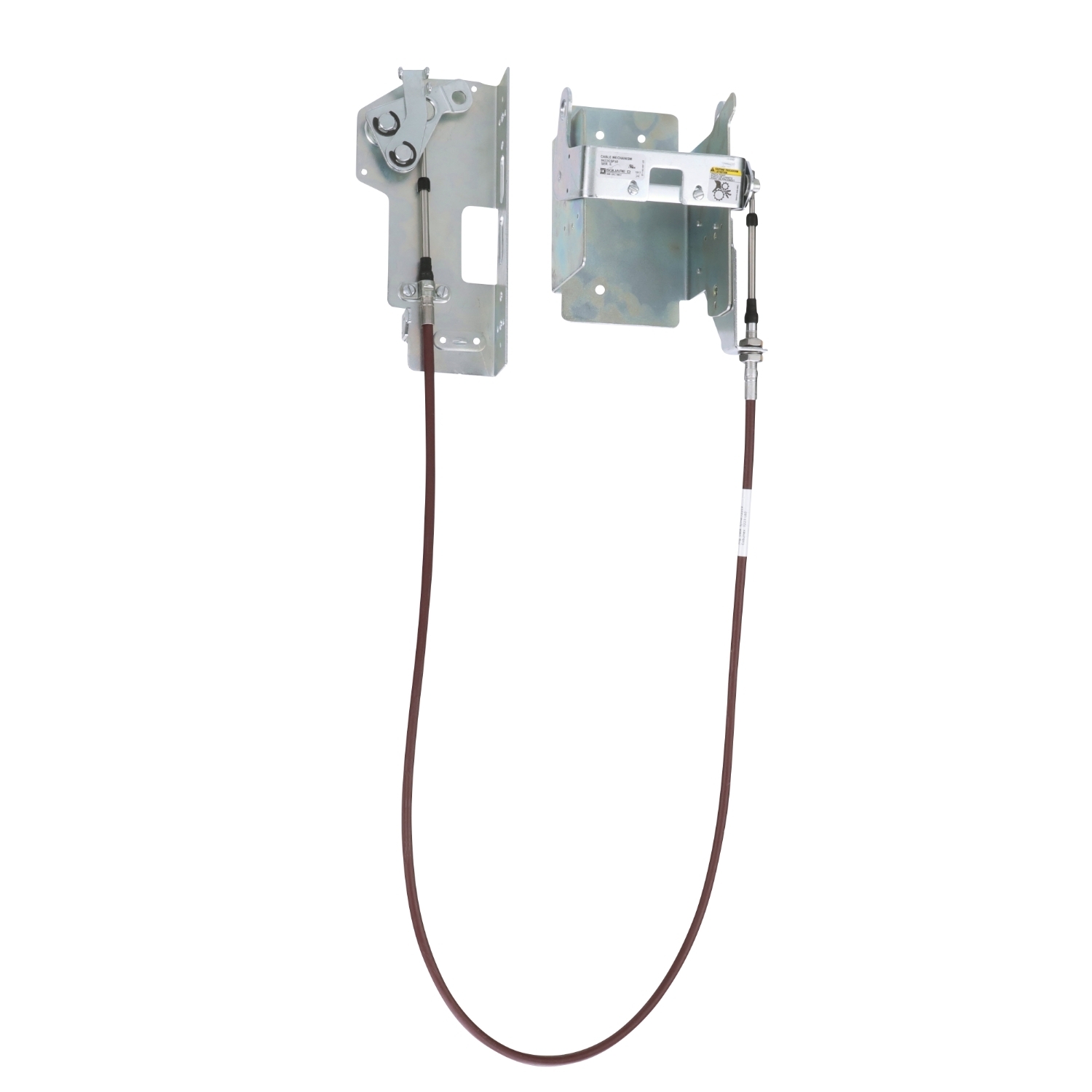

9422CSF50 Single Cable Operated Circuit Breaker Disconnect Operating Mechanism, Direct Mount Handle Mounting, For Use With 2/3-Pole MG-NSF or PowerPact 250 A 60 in H, J Frame Circuit Breaker
- MFR:
- Schneider Electric
- MFR #:
- 9422CSF50
- UPC:
- 785901104124
- Item #:
- 35206
9422CSF50 Single Cable Operated Circuit Breaker Disconnect Operating Mechanism, Direct Mount Handle Mounting, For Use With 2/3-Pole MG-NSF or PowerPact 250 A 60 in H, J Frame Circuit Breaker
- MFR #:
- 9422CSF50
- UPC:
- 785901104124
- Item #:
- 35206
Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with Compact NSF, PowerPacT H and PowerPacT J circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 250 A. This mechanism has a 60 inch long cable. A 9422A operating handle is ordered separately. Cable operated mechanism is UL Component Recognized and CSA certified
Manuals & Documentation
| Catalog Number | 9422CSF50 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=565805&lang=en-us |
| UPC | 785901104124 |
| GTIN | 00785901104124 |
