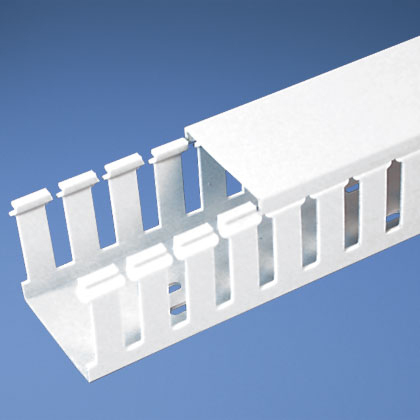

The G.5X2WH6 Panduct Lead-Free PVC Wide Slot Wiring Duct features a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122F (50C). Mounting holes provided. 0.5 x 2.0 (12.7 mm x 50.8 mm) and 6' (1.8 m) long. Cover sold separately. Color White.
Manuals & Documentation
| Catalog Number | G.5X2WH6 |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wide Slot Wiring Duct for use in Control Panel and Machine Builder applications |
| Color | White |
| Connection | Mounting Holes |
| Material | PVC |
| Slot Pitch | 0.31 IN |
| Slot Style | Slotted |
| Standard | RoHS Compliant, UL Recognized, CE Compliant |
| UPC | 074983814626 |
| GTIN | 00074983814626 |
| Item Type | Base Wiring Duct |
| Width | 0.69 |
| Width UOM | Inch |
| Size | 0.69 x 2.03 |
