GUBC500-6 StructuredGround Universal Beam Grounding Clamp, 6 AWG to 500 kcmil Conductor, Copper
- MFR:
- Panduit
- MFR #:
- GUBC500-6
- UPC:
- 074983009619
- Item #:
- 350954
GUBC500-6 StructuredGround Universal Beam Grounding Clamp, 6 AWG to 500 kcmil Conductor, Copper
- MFR #:
- GUBC500-6
- UPC:
- 074983009619
- Item #:
- 350954

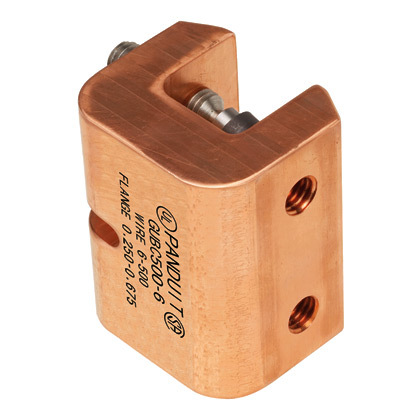

The GUBC500-6 Universal beam grounding clamp fits on a wide range of standard (angled) and wide flange (parallel) structural steel beams providing a mounting pad suitable for a two-hole compression lug. Install quickly and easily with standard 1/4 key hex wrench tooling. Designed to enhance the crimp process using technology that meets IEEE STD 837 - 2002 and REV 2014.
Manuals & Documentation
| Catalog Number | GUBC500-6 |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Utility/Ground Grid |
| Material | Copper |
| Standard | Meets - IEEE 837-2002, Meets IEEE 837-2014 for up to 250 kcmil, UL 467 & DB rated, CSA 22.2, complies with vibration tests per MIL-STD-202G (METHOD 201A). |
| UPC | 074983009619 |
| GTIN | 00074983009619 |
| Item Type | Beam Grounding Clamp |
| Length | 3.15 |
| Length UOM | Inch |
| Cross Reference Products | ABBInstall BG2040|ABBInstall IBG2-10|Burndy YGIBS28-338-2N|Burndy YGIBS28-400-2N|Burndy YGIBS28-462-2N|Burndy YGIBS28-550-2N|Burndy YGIBS28-613-2N|Burndy YGIBS28-675-2N|Burndy YGIBS34-338-2N|Burndy YGIBS34-400-2N |
