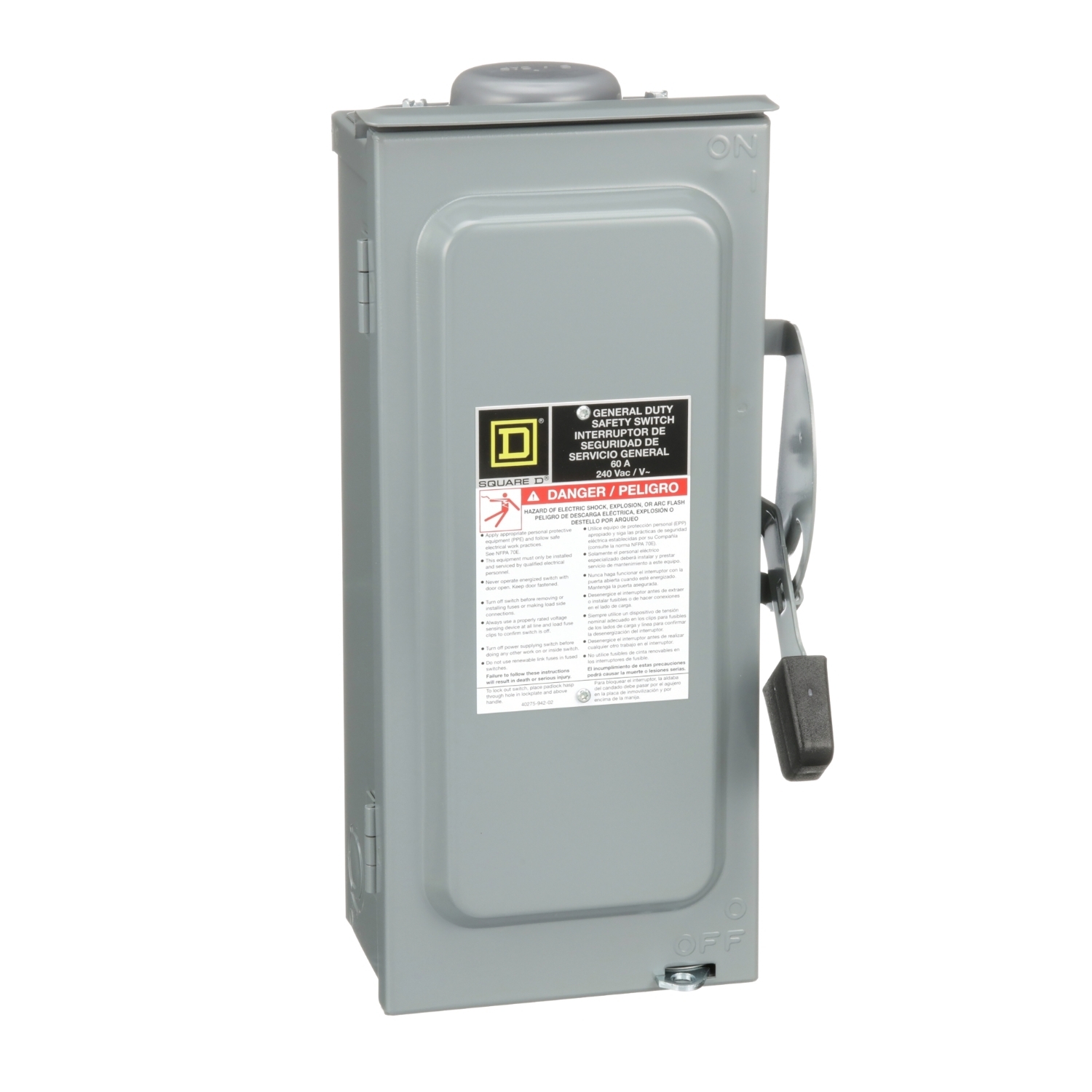

D222NRBCP F1 Fusible General Duty Safety Switch With Bolt-On Hub Provision, 240 V AC, 60 A, 10 hp at 240 V AC 1-Phase, 15 hp at 240 V AC 3-Phase, 2 Poles

MFR:
Schneider Electric
MFR #:
D222NRBCP
UPC:
047569521621
Item #:
350503

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1. This Single Throw Safety Switch which has a rated current of 60A with a NEMA 3R degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 2-pole, 240VAC has a short curcuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 12 AWG 3, aluminium & AWG 14 AWG 3, copper. This switch is certified to UL standards Dinemsions for this product are 14.88 in (H), 7.45 in (W), 4.88 in (D). General Duty safety switchs come with an 18 months warranty.

Catalog Number D222NRBCP
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Fuse Type H, K or R
Phase 1
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458067&lang=en-us
UPC 047569521621
GTIN 00047569521621
Width 7.45
Width UOM Inch
Height 14.88
Height UOM Inch
Depth 4.88 IN
