4230 Afterset, For Use With Walkerduct Pro Underfloor Duct System, PSRC9 Power and Communication Styles, Aluminum
- MFR:
- Legrand-Wiremold
- MFR #:
- 4230
- UPC:
- 786564075257
- Item #:
- 350409
4230 Afterset, For Use With Walkerduct Pro Underfloor Duct System, PSRC9 Power and Communication Styles, Aluminum
- MFR #:
- 4230
- UPC:
- 786564075257
- Item #:
- 350409

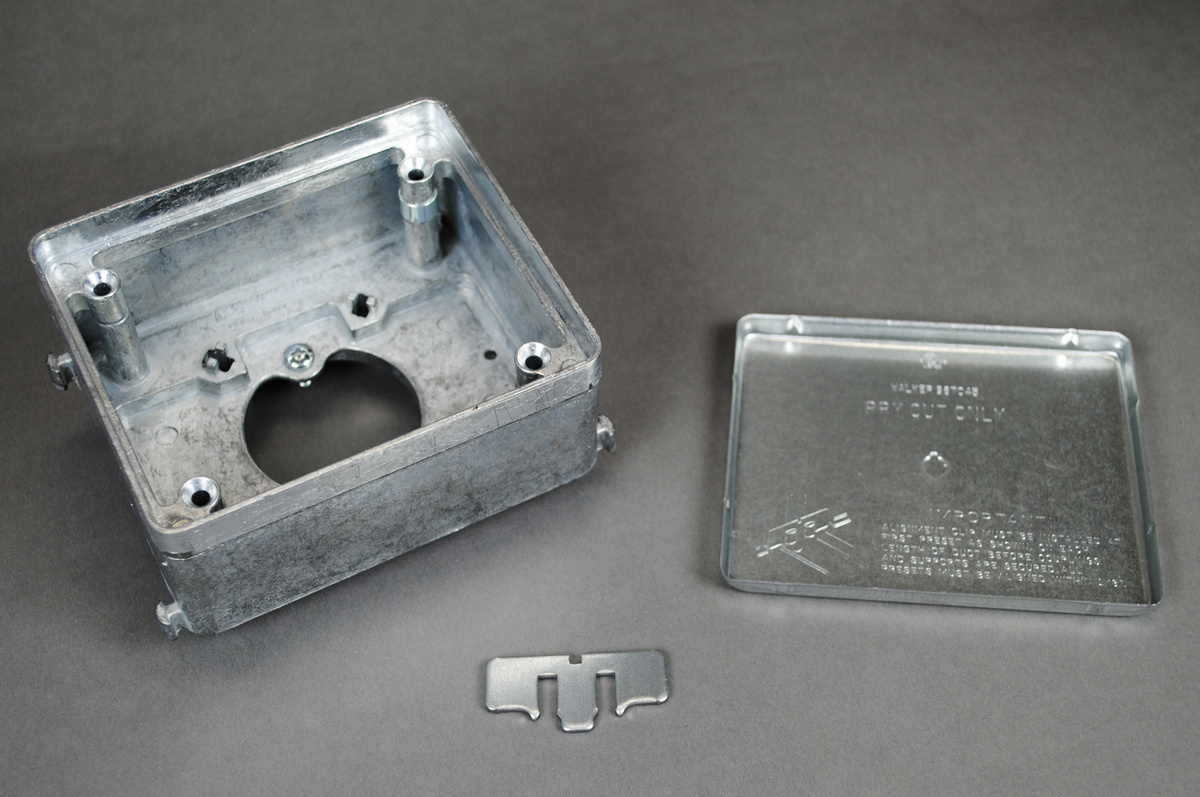

3 (76mm) afterset. Installed either before or after concrete pour to create activation from duct (minimum concrete depth of 2 1/2 (64mm)). Requires 6 1/2 (165mm) core drilled hole in concrete and 2 1/2 (64mm) diameter hole in duct. Grout fill required around afterset once installed to fill voids and support fitting flange. Attaches to duct using locking tabs. Extensions can be attached to increase height. Aftersets include alignment clip and mudcap.
Manuals & Documentation
| Catalog Number | 4230 |
| Manufacturer | Legrand-Wiremold |
| Brand | Legrand-Wiremold |
| Country of Origin | United States |
| Made in USA | Yes |
| RoHS URL | http://www.ideadigitalcontent.com/files/11311/ROH_Legrand_ROHS_statement.pdf |
| UPC | 786564075257 |
| GTIN | 00786564075257 |
