BLACKBURN MECHANICAL

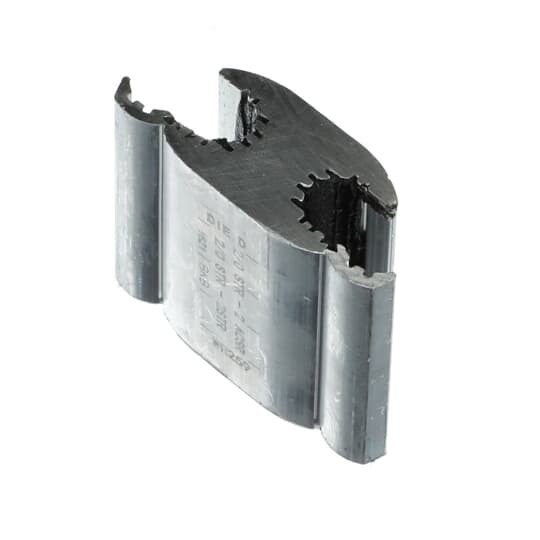

WR259 Blackburn Type WR Wide Range Compression H-Tap Connector, H Shape, 2 to 1/0 AWG ACSR, 2/0 to 1 AWG Stranded Main/Run, 2 to 1/0 AWG ACSR, 2 to 2/0 AWG Stranded Tap, Aluminum

MFR:
ABB - Installation Products
MFR #:
WR259
UPC:
783786100040
Item #:
349927
Manuals & Documentation
Catalog Number WR259
Manufacturer ABB - Installation Products
Brand BLACKBURN MECHANICAL
Country of Origin Mexico
Made in USA No
Application For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Connection Compression
Material Aluminum
Number of Conductors 2
Special Features Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area
Standard RUS Accepted. Complies with ANSI C119.4 Specifications
UPC 783786100040
GTIN 00783786100040
Item Type H-Type Compression Tap Connector
Size Length 1-7/8 inch
Environmental Conditions All Seasons / Conditions
Temperature Rating up to 90 C
Wire Size Main: 1/0 to #2 ACSR or 2/0 to #1 STR AWG , Tap: 1/0 to #2 ACSR or 2/0 to #2 STR AWG
Cross Reference Products ABBInstall 63125|ABBInstall DB2020|ABBInstall OB1010|ABBInstall OB1010D|ABBInstall OB201|ABBInstall OB202|ABBInstall S989154|ABBInstall WR1010|ABBInstall WR1010TB|ABBInstall WR259
