Discontinued
SCHNEIDER ELECTRIC

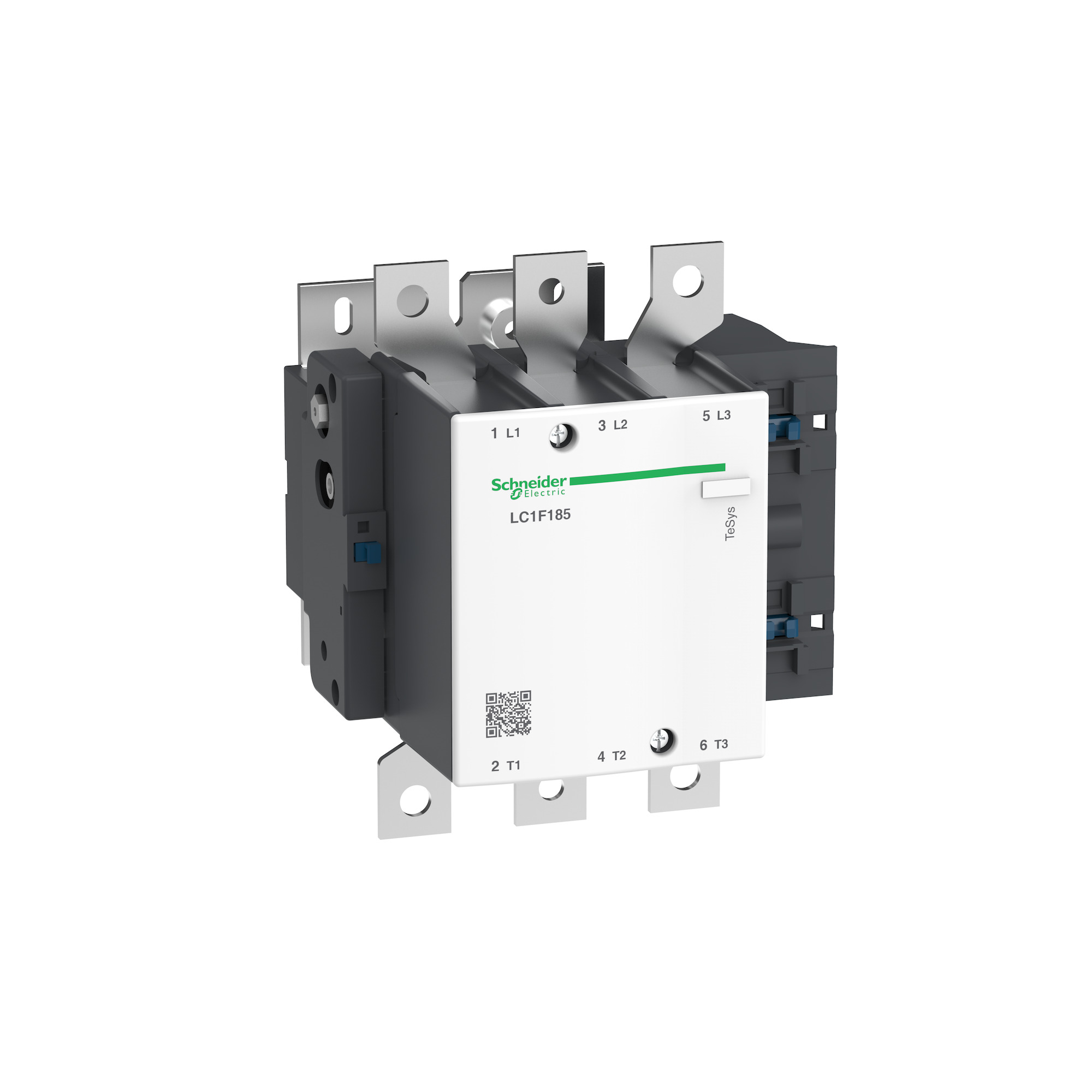

LC1F185 TeSys F 3-Phase IEC Contactor, 690 VAC V Coil, 185/275 A, 3NO Contact, 3 Poles

MFR:
Schneider Electric
MFR #:
LC1F185
Item #:
34956

TeSys F contactor, 3 poles (3NO), 185A/690V AC-3, for motor applications up to 90kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Manuals & Documentation
Catalog Number LC1F185
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Czech Republic
Made in USA No
Application Resistive load;motor control
Coil Voltage 24...575 V AC 40...400 Hz with LX9 coil;24...460 V DC with LX4 coil;100...250 V AC 50/60 Hz with LXE coil;100...380 V DC with LXE coil
Standard ABS;LROS (Lloyds register of shipping);RINA;CSA;CB;UL;BV;RMRoS;DNV;UKCA
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=621144&lang=en-us
GTIN 03389110122381
Item Type Contactor;LC1F
