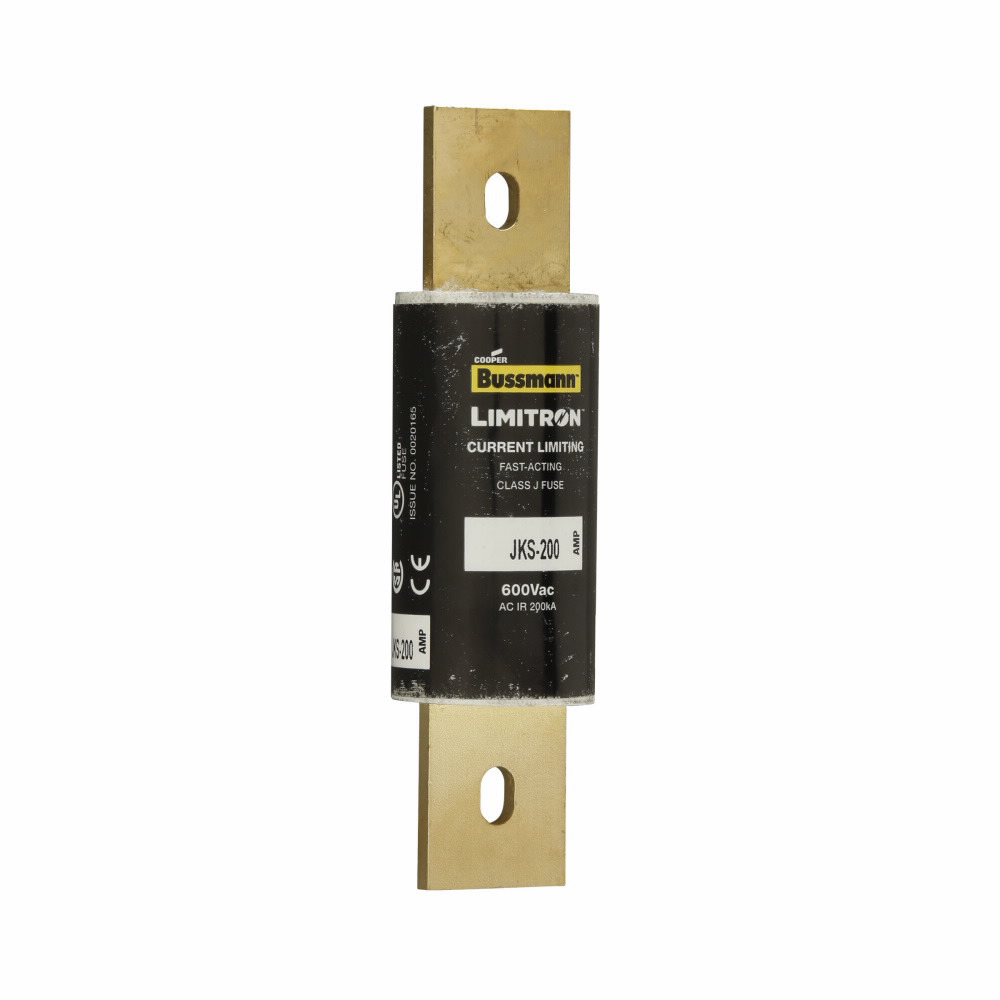

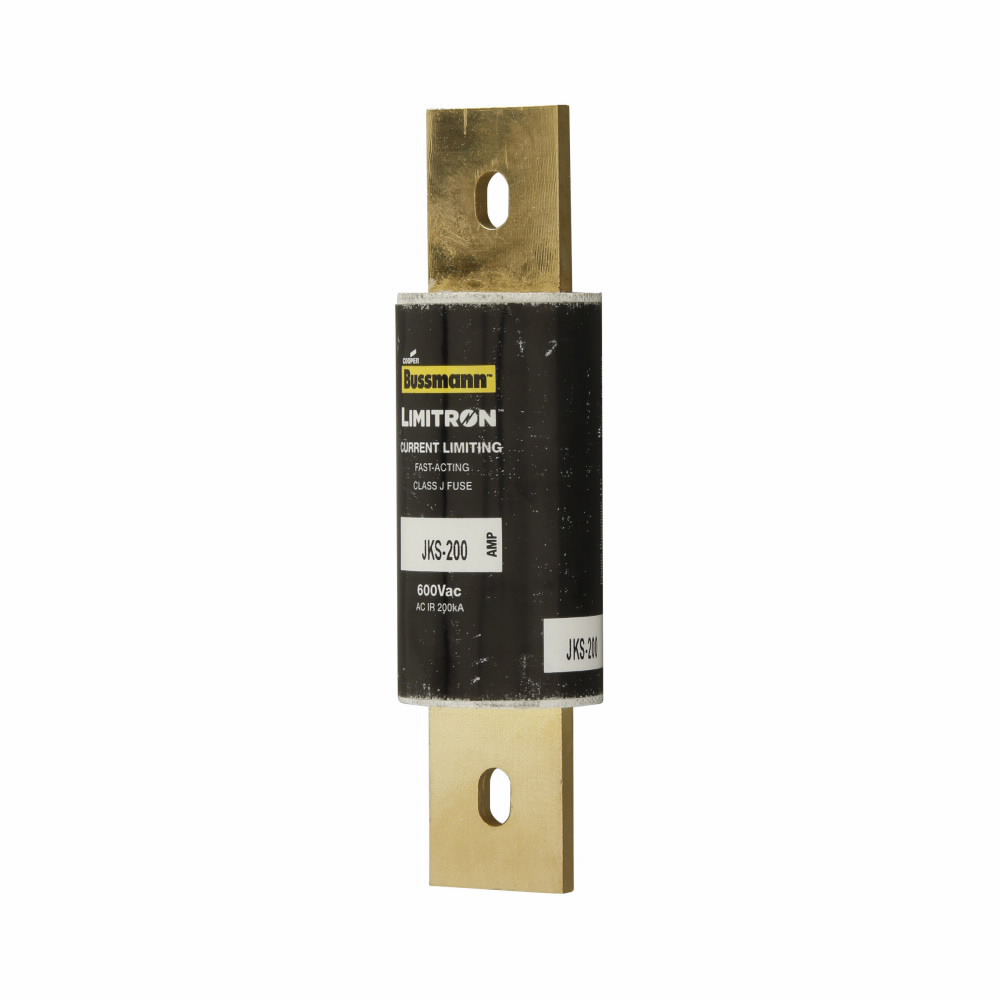

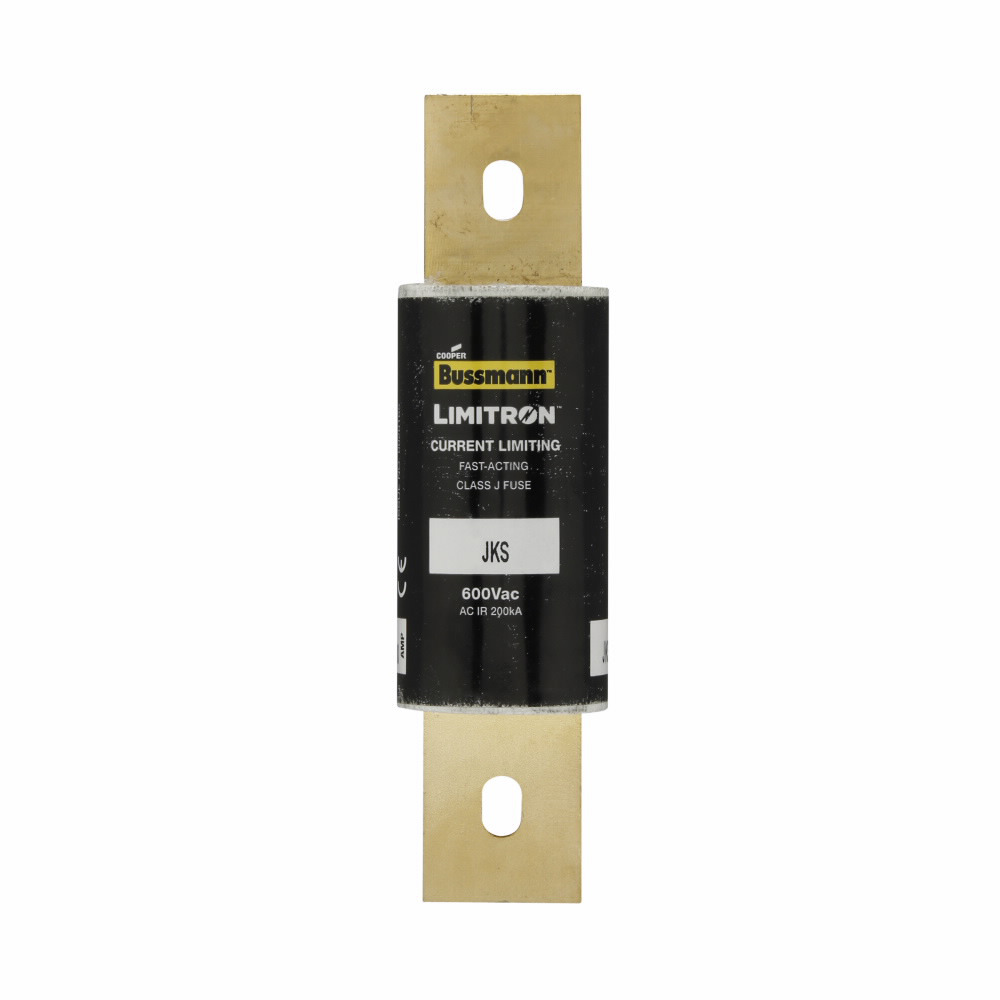

JKS-175 Limitron Current Limiting Fast Acting Fuse, 175 A, 600 V, 200 kAIC Interrupt, J Class, Cartridge Body
- MFR:
- Eaton Bussmann
- MFR #:
- JKS-175
- UPC:
- 051712631754
- Item #:
- 349421
JKS-175 Limitron Current Limiting Fast Acting Fuse, 175 A, 600 V, 200 kAIC Interrupt, J Class, Cartridge Body
- MFR #:
- JKS-175
- UPC:
- 051712631754
- Item #:
- 349421
Bussmann's UL Class J fuse products extend both our Low-Peak family of products with our LPJ_SP and LPJ_SPI dual-element, time-delay fuses as well as our Limitron line offering fast-acting JKS fuses. The LPJ fuses provide industry leading 300,000 amp interrupting rating at 600Vac RMS Sym and 100kA Vdc while delivering a minimum of 10 seconds of 500 percent rated current ride-through performance which is ideal for sizing of high inrush loads. The LPJ products are available with optional permanent replace fuse indication. These UL Class J products in sizes 1 to 600 amps provide exceptional performance at 600 Vac and 300 Vdc (see spec sheets for specific details) in a compact size rejecting footprint
Manuals & Documentation
| Catalog Number | JKS-175 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 175 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Bolted blade end x bolted blade end |
| Interrupt Rating | 200 kAIC at 600 Vac |
| Special Features | Non-indicating |
| Standard | RoHS Compliant |
| UPC | 051712631754 |
| GTIN | 00051712631754 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Size | 1.50 In Diameter X 5.75 In Length |
| Voltage Rating | 600 V |
