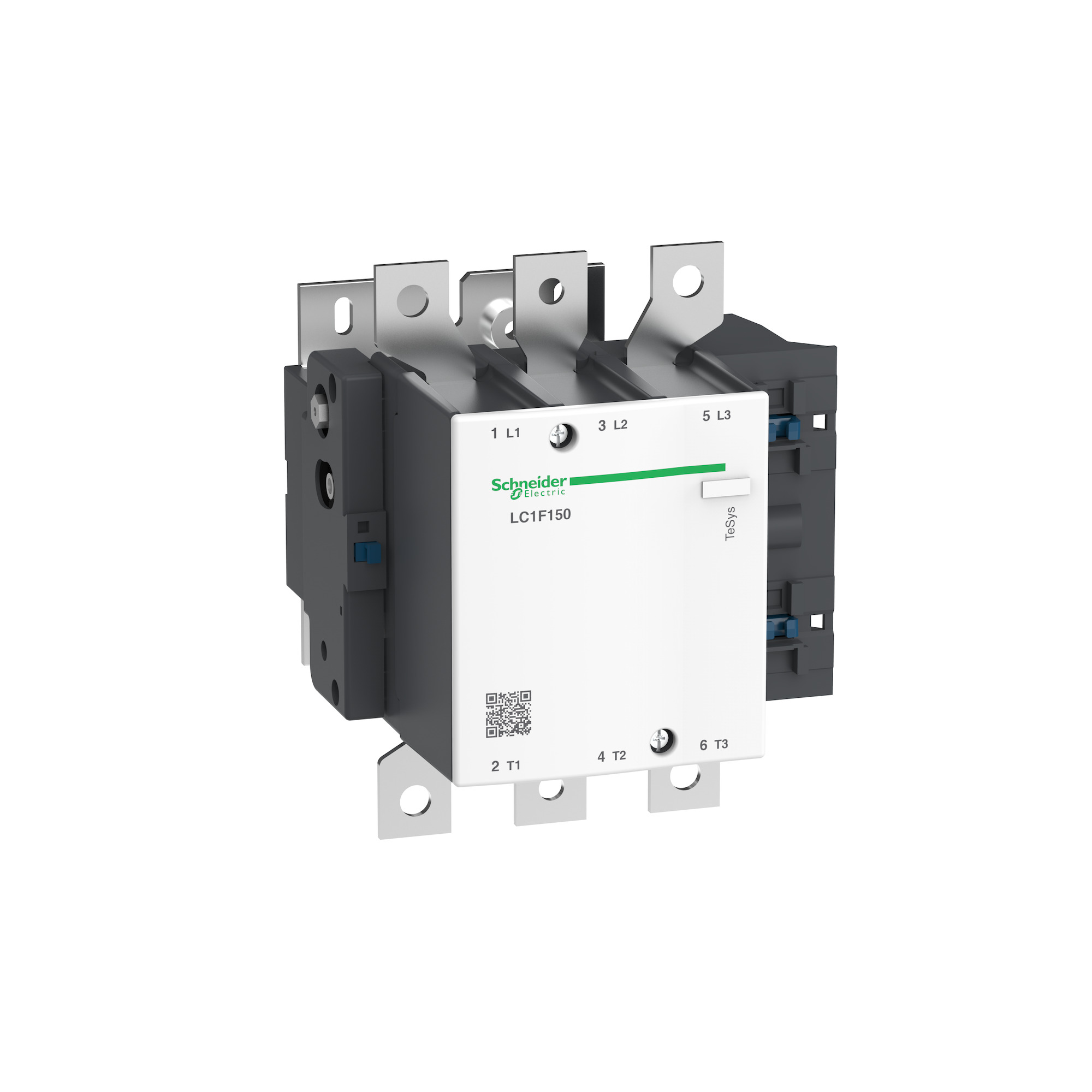

LC1F150 TeSys 3-Phase IEC Contactor With Coil, 600 VAC V Coil, 150 A, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1F150
- Item #:
- 34941
Discontinued
LC1F150 TeSys 3-Phase IEC Contactor With Coil, 600 VAC V Coil, 150 A, 3NO Contact, 3 Poles
- MFR #:
- LC1F150
- Item #:
- 34941
TeSys F contactor, 3 poles (3NO), 150A/690V AC-3, for motor applications up to 75kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Manuals & Documentation
| Catalog Number | LC1F150 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Application | Resistive load;motor control |
| Coil Voltage | 24...575 V AC 40...400 Hz with LX1/LX9 coil;24...460 V DC with LX4 coil;100...250 V AC 50/60 Hz with LXE coil;100...380 V DC with LXE coil |
| Connection | Power circuit lugs-ring terminals 1 120-120 mm² 25 x 3 mm;power circuit connector 1 120-120 mm²;power circuit bar 2 ;power circuit bolted connection;control circuit screw clamp terminals 1 1-4 mm²flexible without cable end;control circuit screw clamp terminals 2 1-4 mm²flexible with cable end;control circuit screw clamp terminals 1 1-4 mm²flexible with cable end;control circuit screw clamp terminals 2 1-2.5 mm²solid without cable end;control circuit screw clamp terminals 1 1-4 mm²;control circuit screw clamp terminals 2 1-4 mm²;control circuit screw clamp terminals 1.0 0.2-2.5 mm²flexible without cable end;control circuit screw clamp terminals 1.0 0.25-2.5 mm²flexible with cable end;control circuit screw clamp terminals 1.0 0.2-2.5 mm²solid without cable end |
| Contact Configuration | 3 NO |
| Mounting | Mounting Plate |
| Standard | RINA;CSA;BV;RMRoS;LROS (Lloyds register of shipping);DNV;ABS;UL;CB;UKCA;IEC 60947-4-1;EN 60947-4-1;IEC 60947-1;EN 60947-1;JIS C8201-4-1 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=621024&lang=en-us |
| GTIN | 03389110122244 |
| Item Type | Contactor |
