SQUARE D

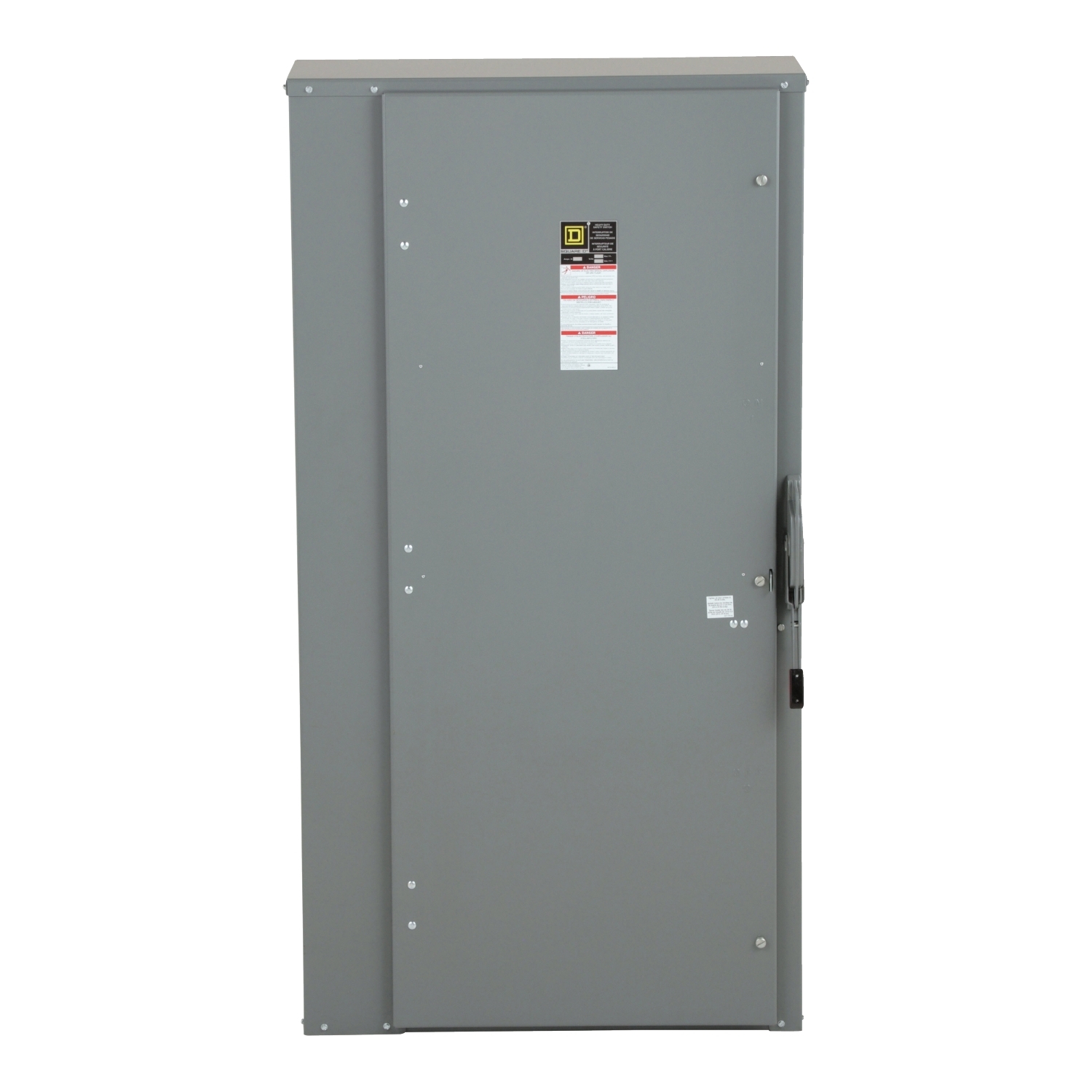

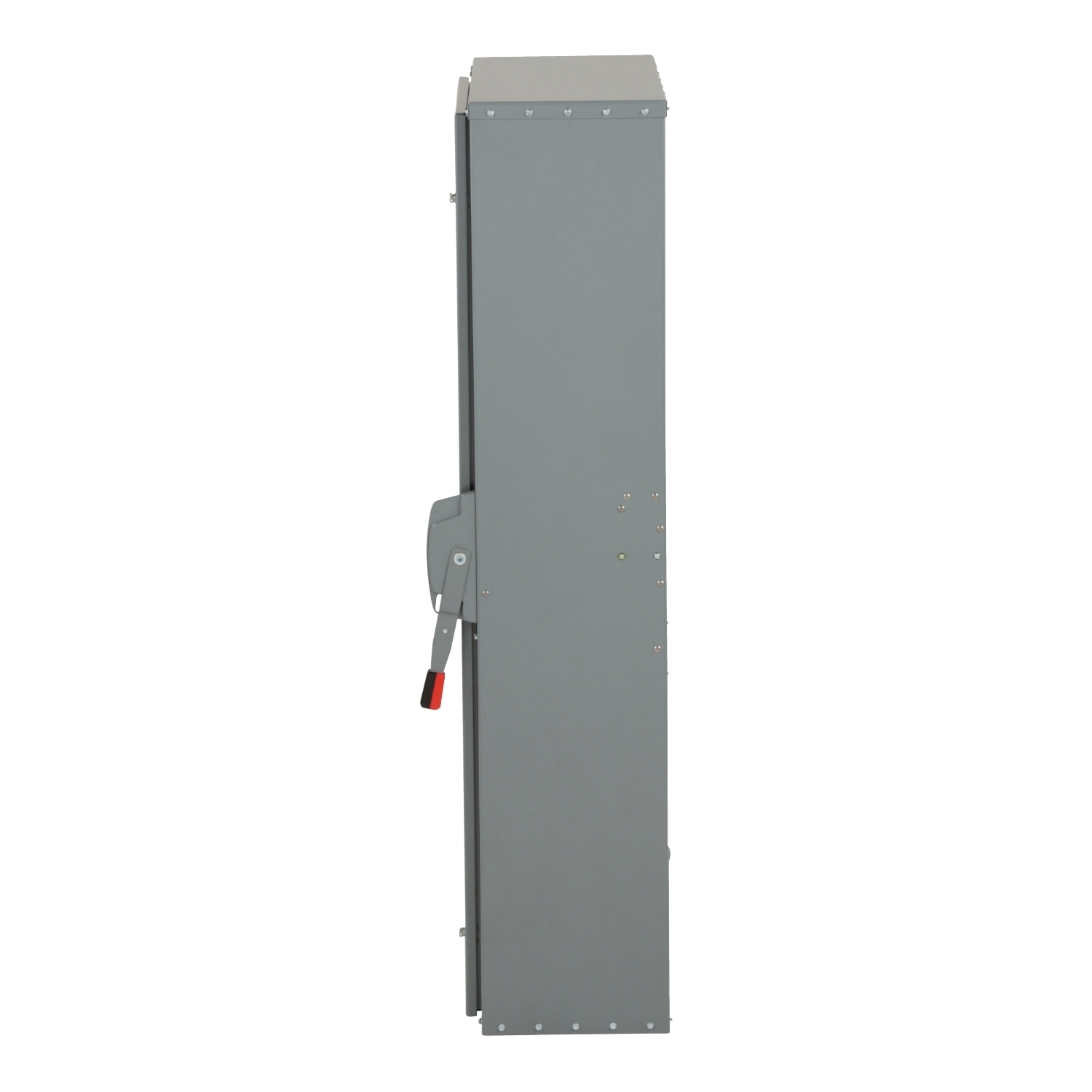

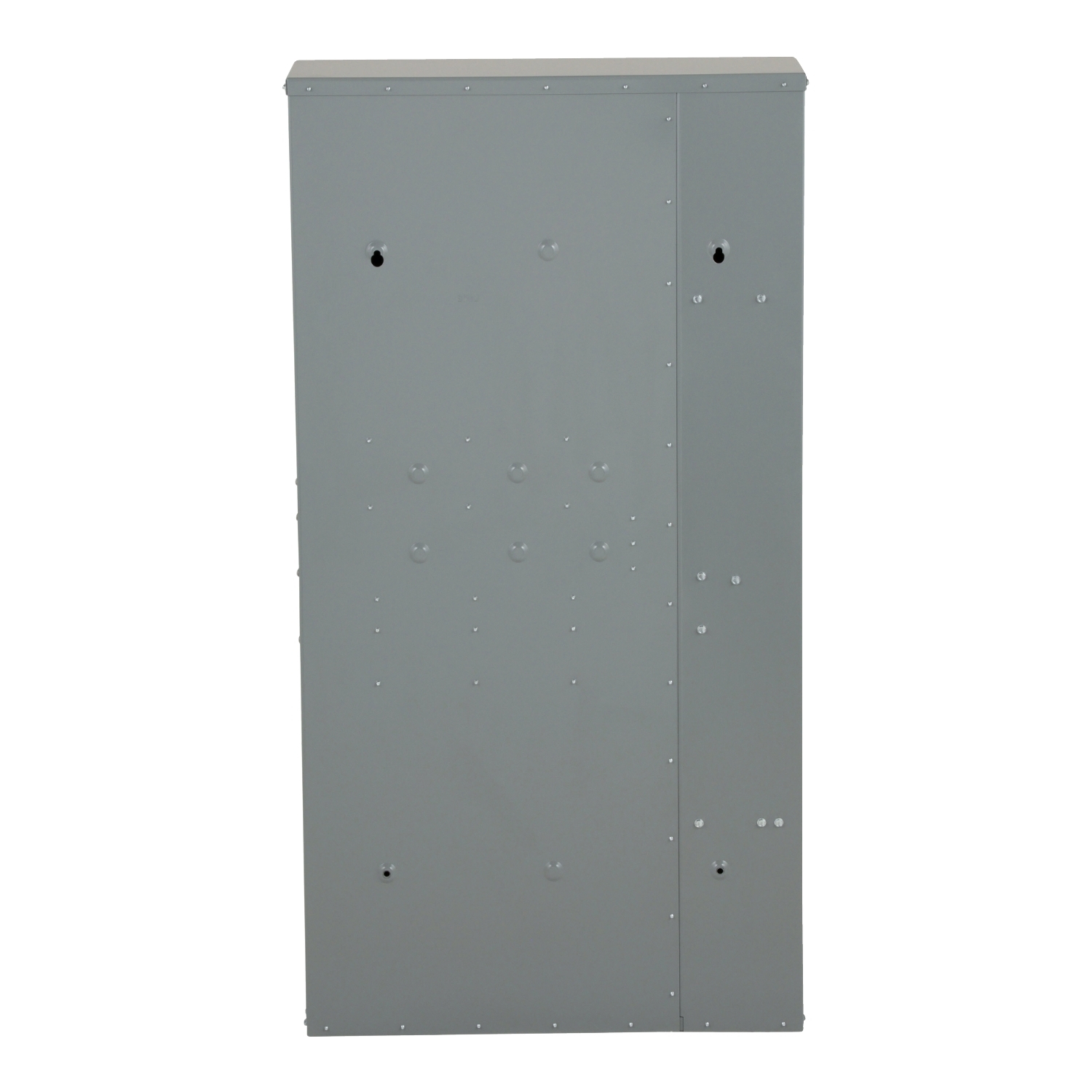

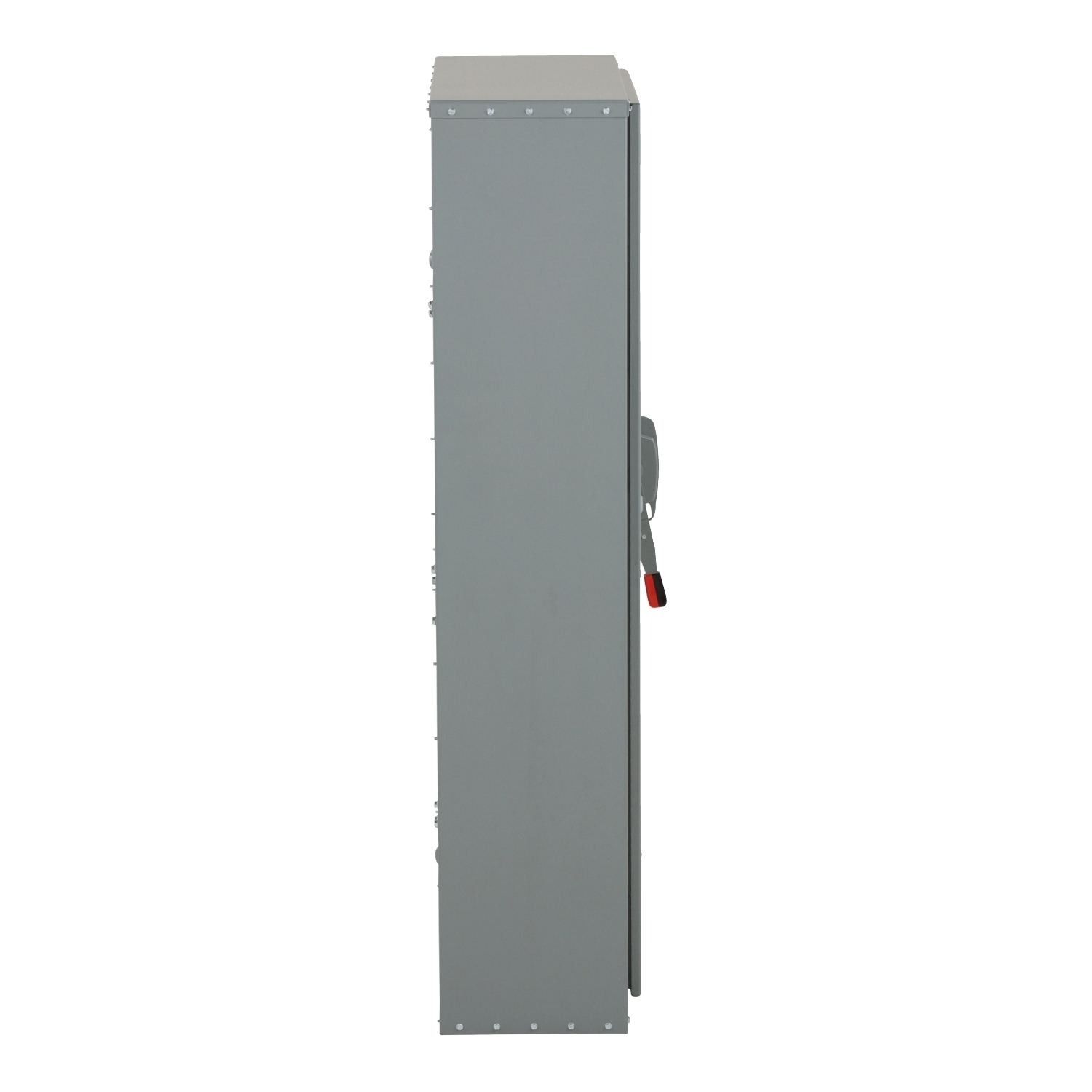

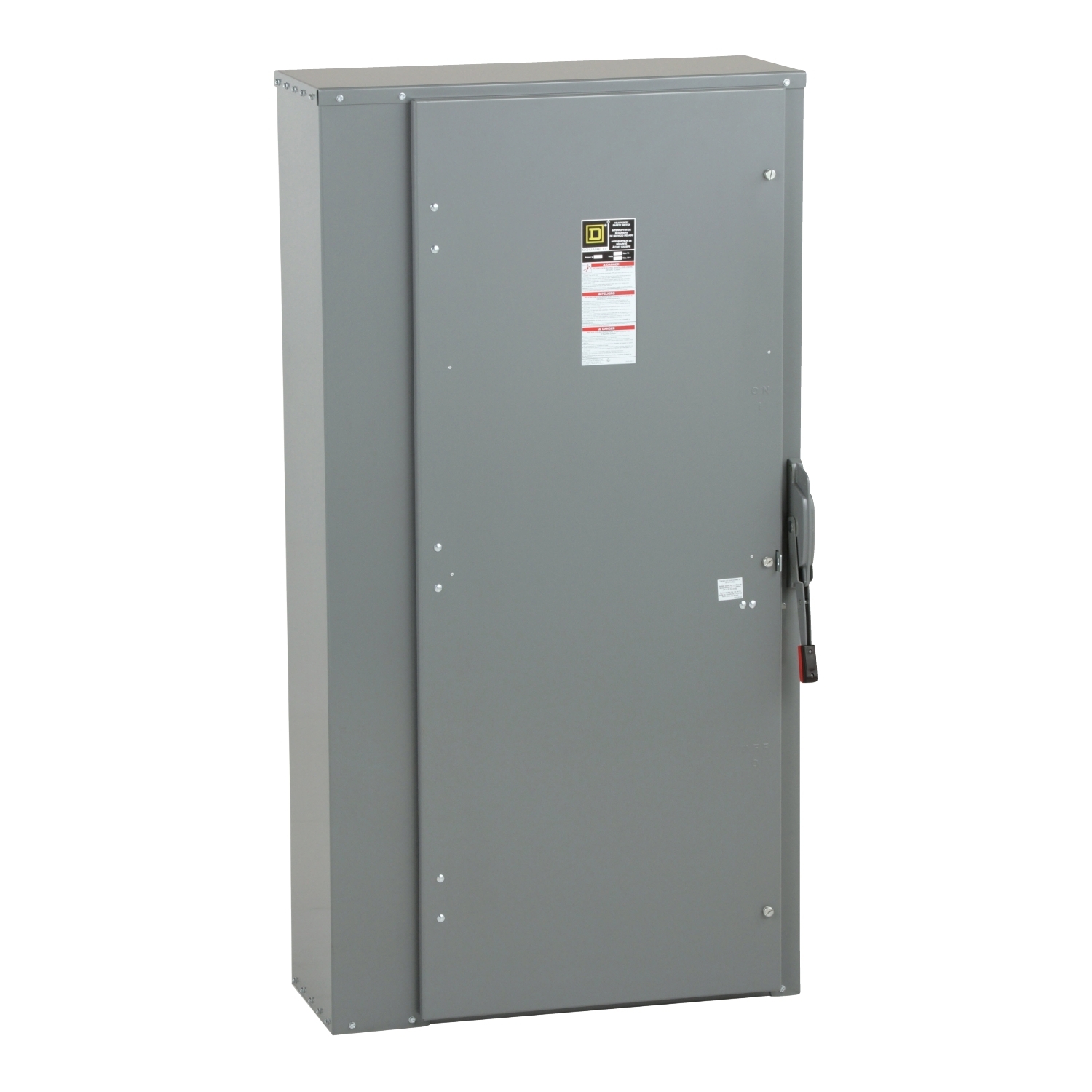

H368N Heavy Duty Fusible General Purpose Safety Switch With Factory Installed Neutral, 600 V AC/DC, 1200 A, 500 hp at 600 VAC, 50 hp at 600 VDC, 3NO 3 Form A Contact, 3 Poles

MFR:
Schneider Electric
MFR #:
H368N
UPC:
785901442462
Item #:
3493

The Square D by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. Heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 1200A with voltage of 600VAC and 600VDC. This switch is rated at 200hp for 1 phase and 500hp for 3 phase with standard fuses. For time delay fuses, this switch is also rated at 250hp for 1 phase and 500hp for 3 phase. For 600VDC, it also is rated at 50hp. This unit is in a Type 1 enclosure includes a factory installed neutral. It is UL listed with the file E2875.

Manuals & Documentation
Catalog Number H368N
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Fuse Type L
Phase 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=364811&lang=en-us
UPC 785901442462
GTIN 00785901442462
Width 36.62
Width UOM Inch
Height 69.13
Height UOM Inch
Depth 17.75 IN
