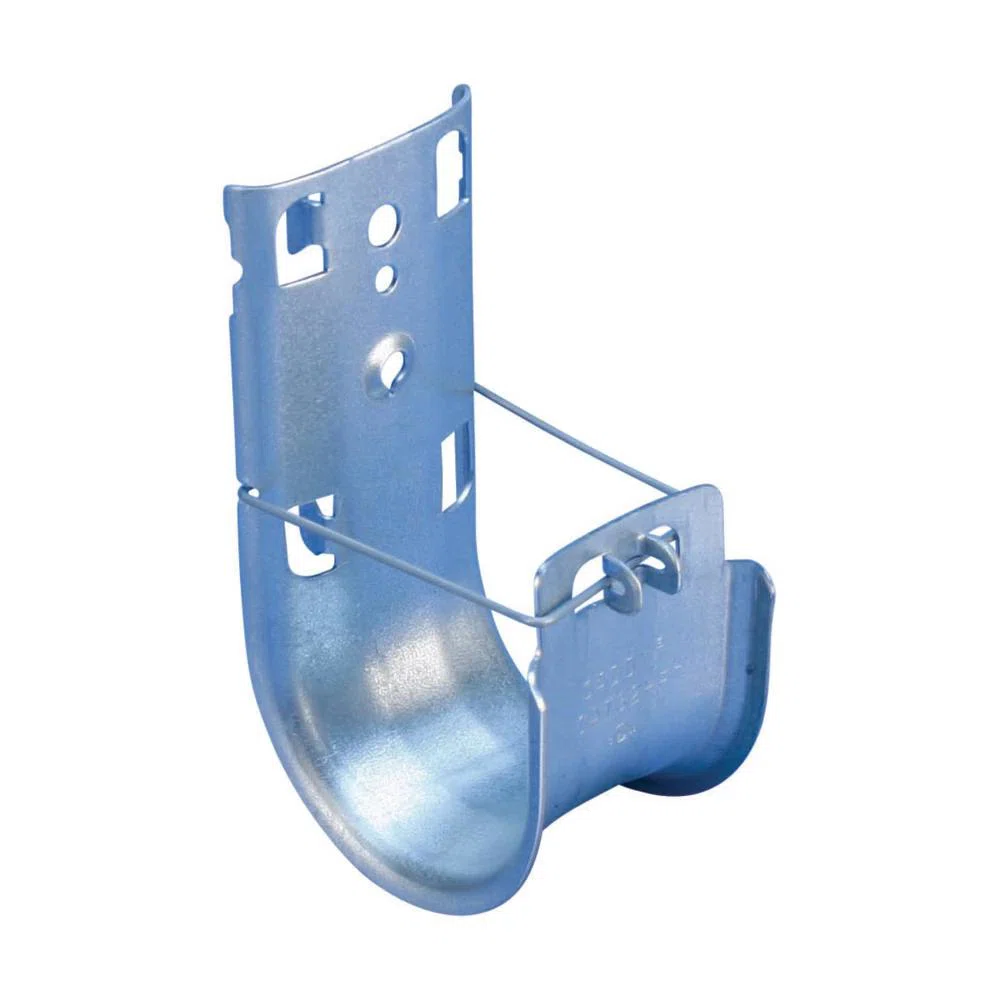

nVent CADDY Cat HP J-Hooks are the foundation of the nVent CADDY Cat HP System. The revamped nVent CADDY Cat HP J-Hook offers contractors three unique, UL-certified attachment methods out of the box—wall, ceiling, and threaded rod installations. This added functionality enables contractors to reduce SKU inventory while maintaining efficiency and continued progress on the jobsite with the most common structural attachment methods.

Manuals & Documentation

Features

  • One through-hole for easier installation of threaded rod
  • Improved design allows for optimized inventory, reducing job site scheduling risks associated with multiple SKUs
Manufacturer Part Number CAT21HP
Brand nVent CADDY
Manufacturer nVent
UPC 782856848547
EAN 8711893143126
Country Of Origin US
Finish Pre-Galvanized
Material Steel
Series CAT HP
Specifications 2.29 sq-in Area
Suitable For Use With High Performance Cable Support System
Size 1-5/16 in Dia
Alternative Part Number 14850378
Manufacturer Item Status Active
Country USA/Canada
Standards Approvals BABA Compliant | UL 2043 | cULus Listed | EN 50174-2 | ISO/IEC 14763-2 | ANSI/TIA 568/569 | DIN 4102-12 E30/E60/E90 | RoHS Compliant
Application Datacom, Low Voltage, Electrical Fixing and Fastening Applications
Load Capacity 60 lb Static
