Intermatic

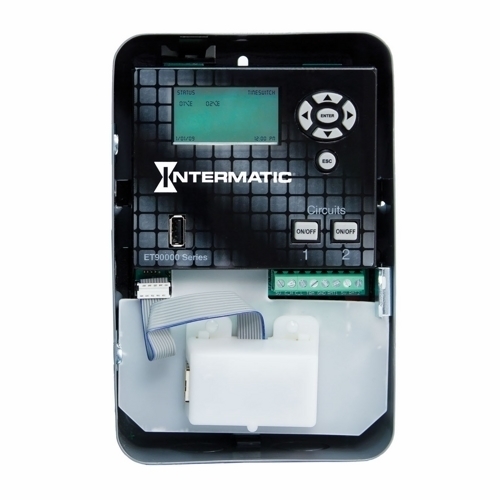

ET90215CE ET90000 Astronomic Electronic Timer Switch, 1 sec to 365 days Setting, 120/277 V AC, 1, 2 hp, 1CO 1 Form C SPDT Contact, 1 Poles

MFR:
Intermatic
MFR #:
ET90215CE
UPC:
078275124899
Item #:
348941

The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience and included capability of a 2 hour override. The PC App and Mobile App provide real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates. These products can be used to help meet Title 24 requirements.

Manuals & Documentation
Catalog Number ET90215CE
Manufacturer Intermatic
Brand Intermatic
Country of Origin Mexico
Made in USA No
Action 2 x SPDT
Amperage Rating 20
Application General Purpose, Lighting, HVACR
Connection Wire Lead
Contact Configuration 1 NO/1 NC
Contact Rating 30 AMP @ 12 - 240 VAC (General Purpose and Resistive NO Only), 20 AMP @ 12 - 240 VAC (General Purpose and Resistive NO), 10 AMP @ 12 - 240 VAC (General Purpose and Resistive NC), 20 AMP @ 28 VDC (General Purpose and Resistive NO), 10 AMP @ 28 VDC (General Purpose and Resistive NC), 20 AMP @ 120 - 277 VAC (Ballast NO), 3 AMP @ 120 - 277 VAC (Ballast NC), 5 AMP @ 12 - 240 VAC (Tungsten NO Only)
Enclosure Type 1 Steel
Mounting Wall
Number of Poles 1
Special Features Features: Automatically Detects Input Voltages between 120 and 277 VAC, Up to 4000 Events Plus Holidays Scheduling, Ethernet Capable for Upgrading Firmware and Networking Time Switches and PC Tools, Easy-to-Follow on-Screen Menu, Password Protection, Firmware Upgradeable, Schedule Review Mode, Saved Activity Log, 3 Year Warranty
Standard cULus Listed, cCSAus Certified, California TITLE 24 Compliant, HVACR, Title CA 20 Listed
UPC 078275124899
GTIN 00078275124899
Item Type Astronomic Electronic
Size 7.8 HEIGHT X 5.1 WIDTH X 3.0 DEPTH IN, 198 HEIGHT X 128 WIDTH X 76 DEPTH CM
Operating Temperature -40 to +120 DEG F, -40 to +50 DEG C
Timing Range 1 S - 365 DAYS
Voltage Rating 120 - 277
