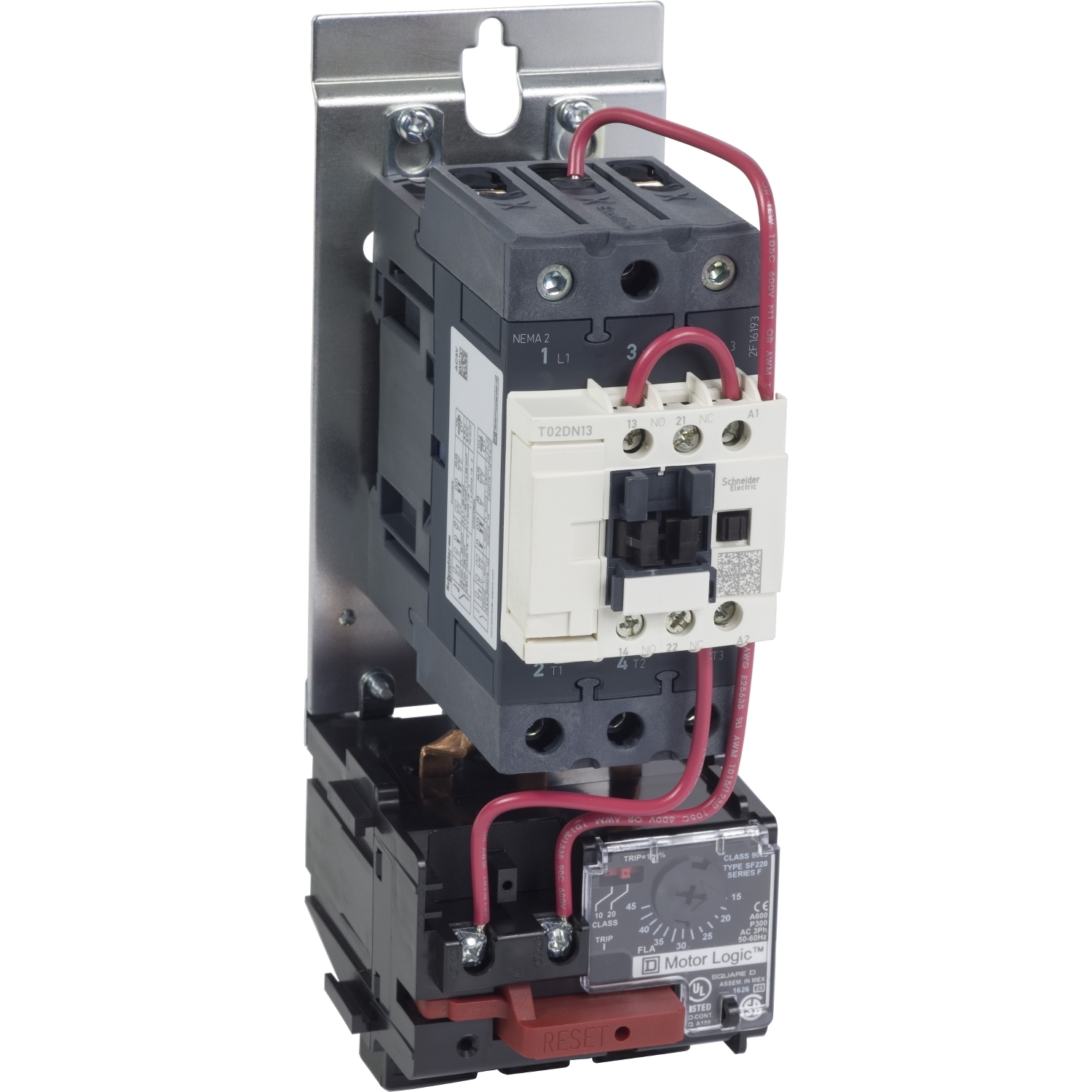

T36DN13G7 TeSys Motor Starter, 120 VAC V Coil, Non-Reversing Action, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- T36DN13G7
- UPC:
- 785901958123
- Item #:
- 347275
T36DN13G7 TeSys Motor Starter, 120 VAC V Coil, Non-Reversing Action, 3 Poles
- MFR #:
- T36DN13G7
- UPC:
- 785901958123
- Item #:
- 347275
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 2 motor starter has a 45 amperage continuous current rating. It also has ratings of 10 HP at 200 VAC, of 15 HP at 230 VAC, of 25 HP at 460 and 575 VAC poly phase. This motor starter has a Motor Logic solid state overload relay with a Class 10/20 rating. The overload is adjustable from 15 to 45 amperes. The starter has a 120 VAC replaceable coil with common control. Starter has 1 normally open and 1 normally closed auxiliary contact. This starter is not in an enclosure. Motor starter is UL listed and CSA Certified.
Manuals & Documentation
| Catalog Number | T36DN13G7 |
| Manufacturer | Schneider Electric |
| Brand | Schneider Electric |
| Country of Origin | United States |
| Made in USA | Yes |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465372387&lang=en-us |
| UPC | 785901958123 |
| GTIN | 00785901958123 |
