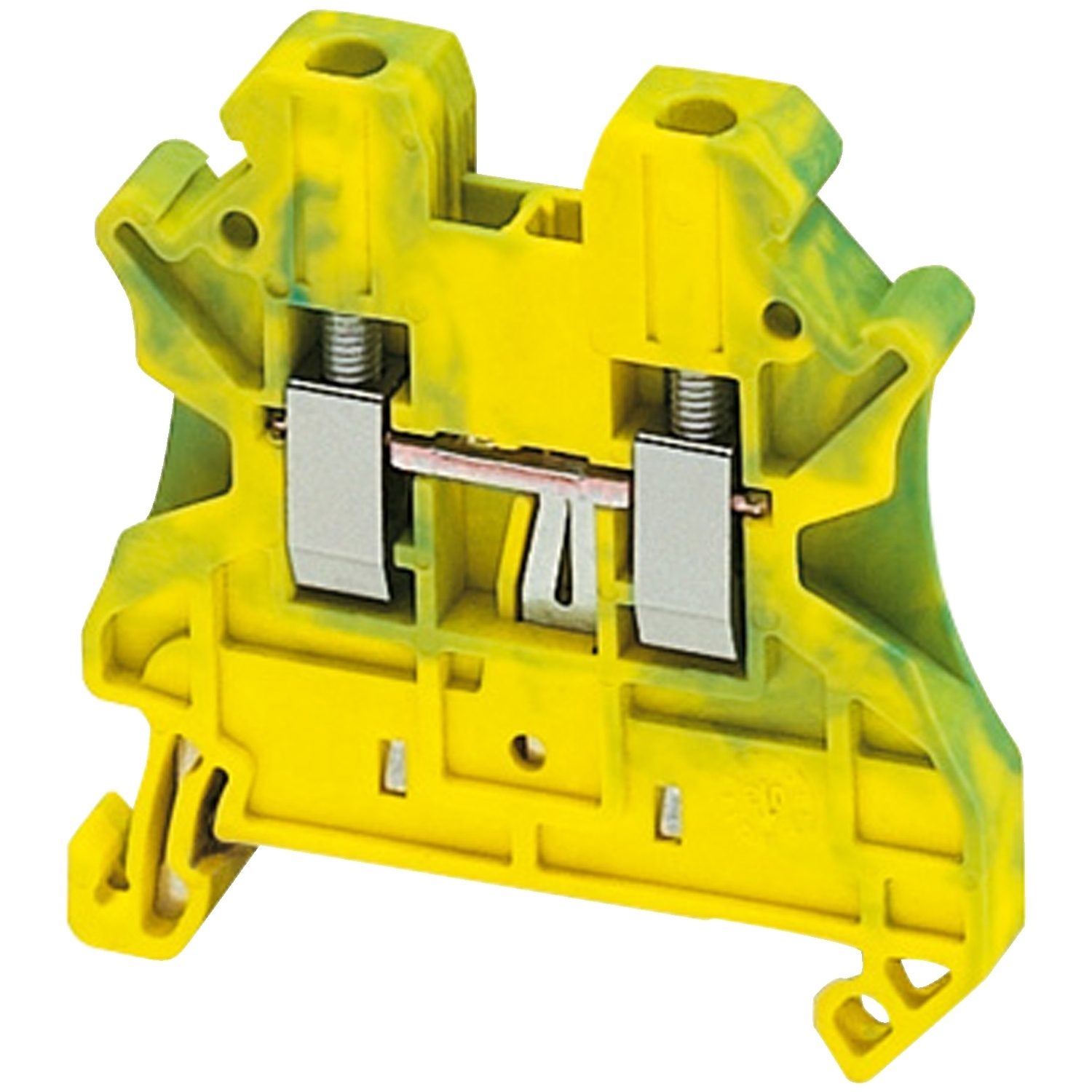

NSYTRV22PE Linergy TRV 1-Level 2-Point Terminal Block, 600 V AC, 20 A, 26 to 12 AWG Wire, 1 Poles, Clip-Fit Mount
- MFR:
- Schneider Electric
- MFR #:
- NSYTRV22PE
- Item #:
- 347214
NSYTRV22PE Linergy TRV 1-Level 2-Point Terminal Block, 600 V AC, 20 A, 26 to 12 AWG Wire, 1 Poles, Clip-Fit Mount
- MFR #:
- NSYTRV22PE
- Item #:
- 347214
Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 2.5 mm nominal cross section. It has green-yellow surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC).
Manuals & Documentation
| Catalog Number | NSYTRV22PE |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Germany |
| Made in USA | No |
| Color | Green;yellow |
| Connection | 1 x screw terminal upstream;1 x screw terminal downstream |
| Material | Polyamide 6/6: insulating case |
| Mounting | Clip |
| Standard | V0 0.8 mm UL 94 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403761295&lang=en-us |
| GTIN | 03606480531842 |
| Item Type | Protective earth;Terminal block;Spacial enclosures |
