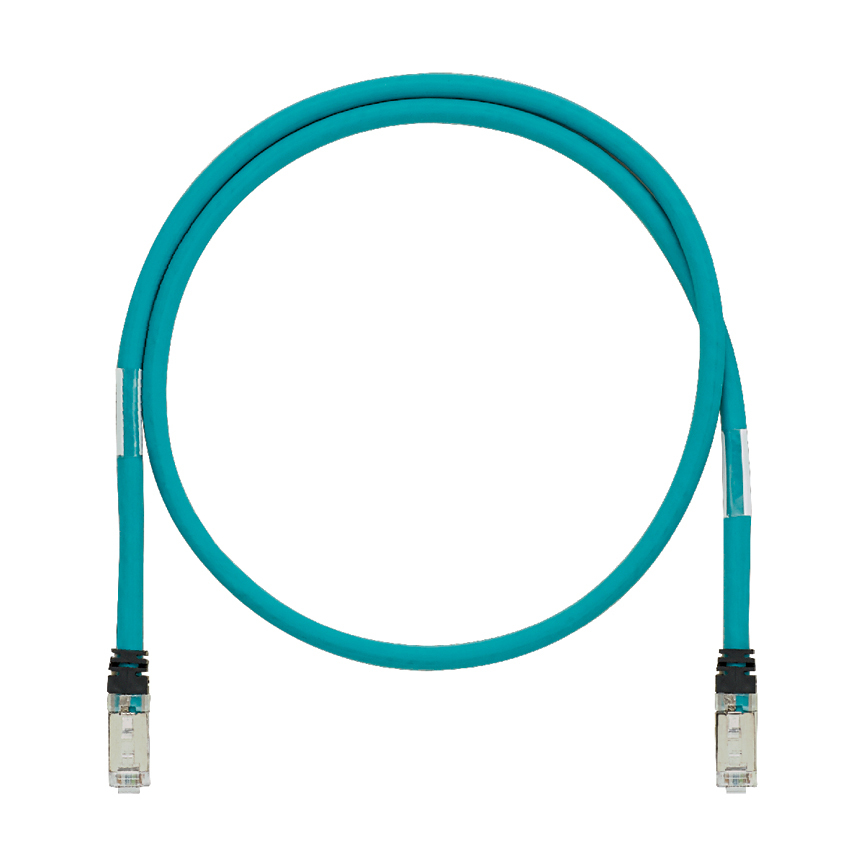

The IndustrialNet Cat 5e Shielded Patch Cord is constructed of industrial grade, 24 AWG, SF/UTP, twisted pair, stranded, CM cable with industrial bulkhead shielded modular plugs with black strain relief boots. It is designed to support high-flex applications and is rated for 600 V panel or on-machine applications where space is shared with high voltage power cables. The patch cord is 3 meters in length and teal.
Manuals & Documentation
| Catalog Number | ISTPHCH3MTL |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Costa Rica |
| Made in USA | No |
| Application | (1) 10BASE-T (Ethernet) (2) 100BASE-T (Fast Ethernet) (3) 1000BASE-T (Gigabit Ethernet) (4) Industrial Ethernet (5) Ethernet/IP (6) Control Panel deployments featuring power source voltages (7) Uplinks featuring gigabit data transmission from the control |
| Color | Teal |
| Jacket Material | Thermoplastic Elastomer |
| Plug Type | Modular Plug |
| Standard | Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D standards at swept frequencies up to 100MHz; Meets ODVA Ethernet/IP electrical and mechanical performance requirements; Meets all applicable ANSI/TIA-968-A r |
| UPC | 074983848683 |
| GTIN | 00074983848683 |
| Item Type | Patch Cord |
| Length | 9.84 |
| Outside Diameter | 0.28 |
| Temperature Rating | 158 |
| Wire Size | 24 |
