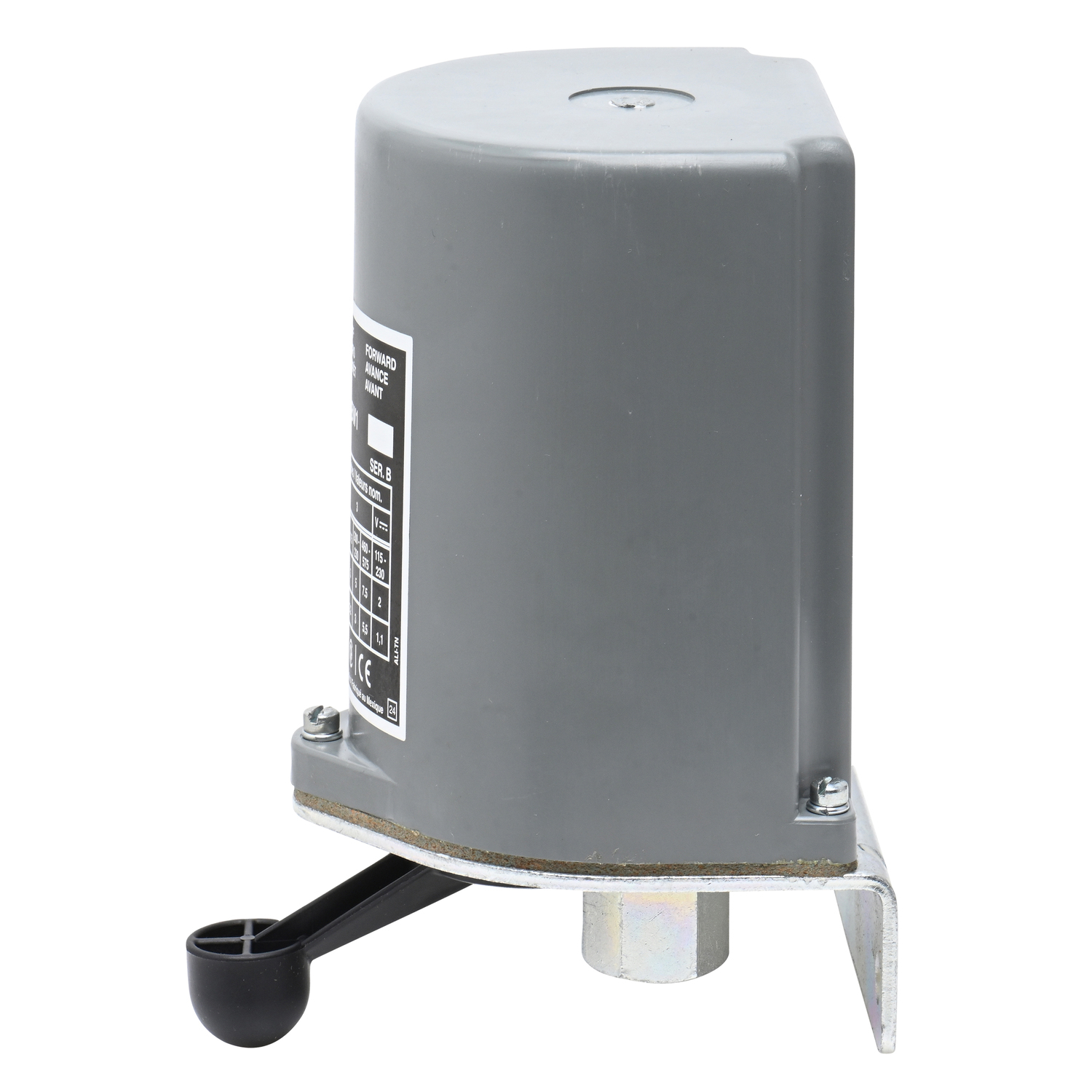

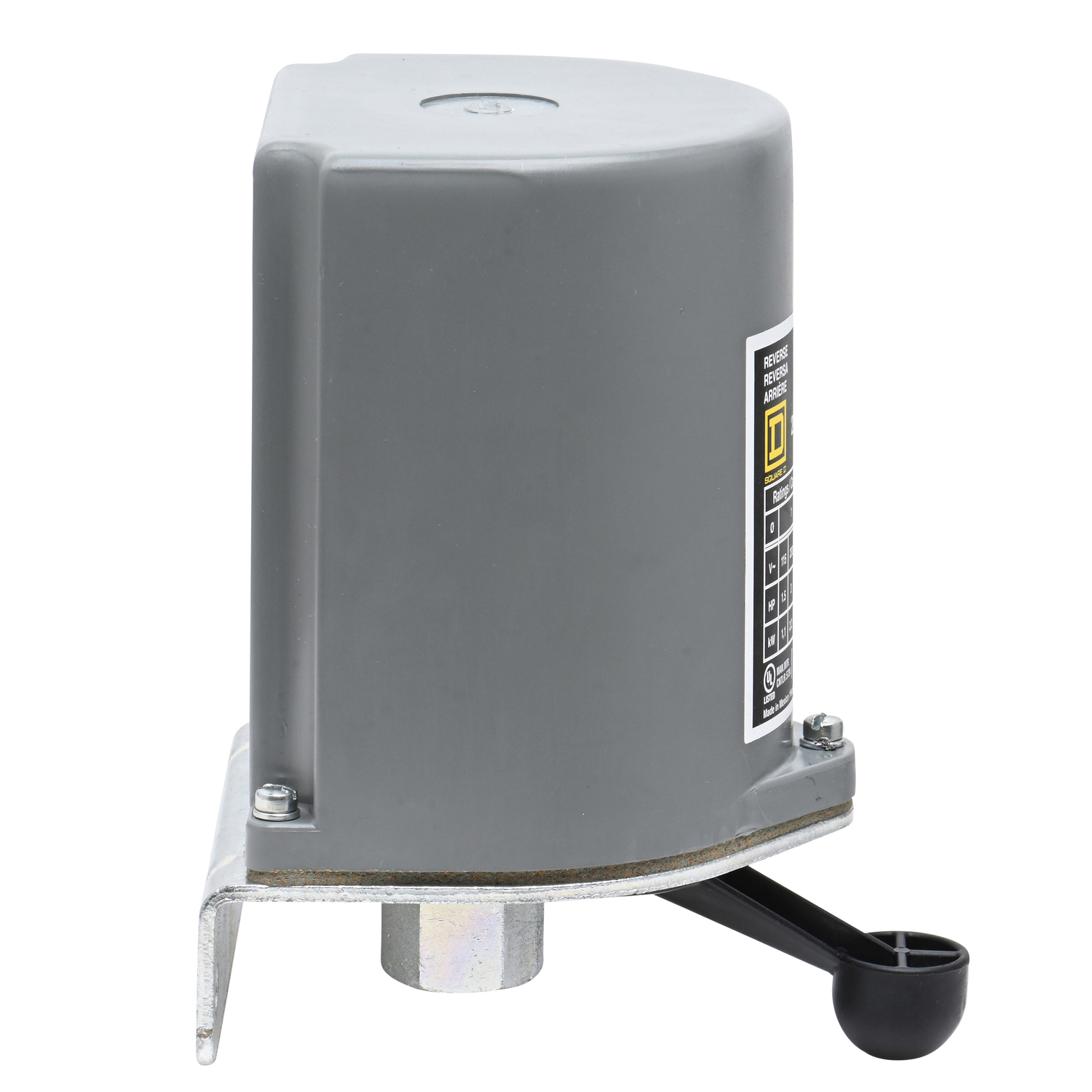

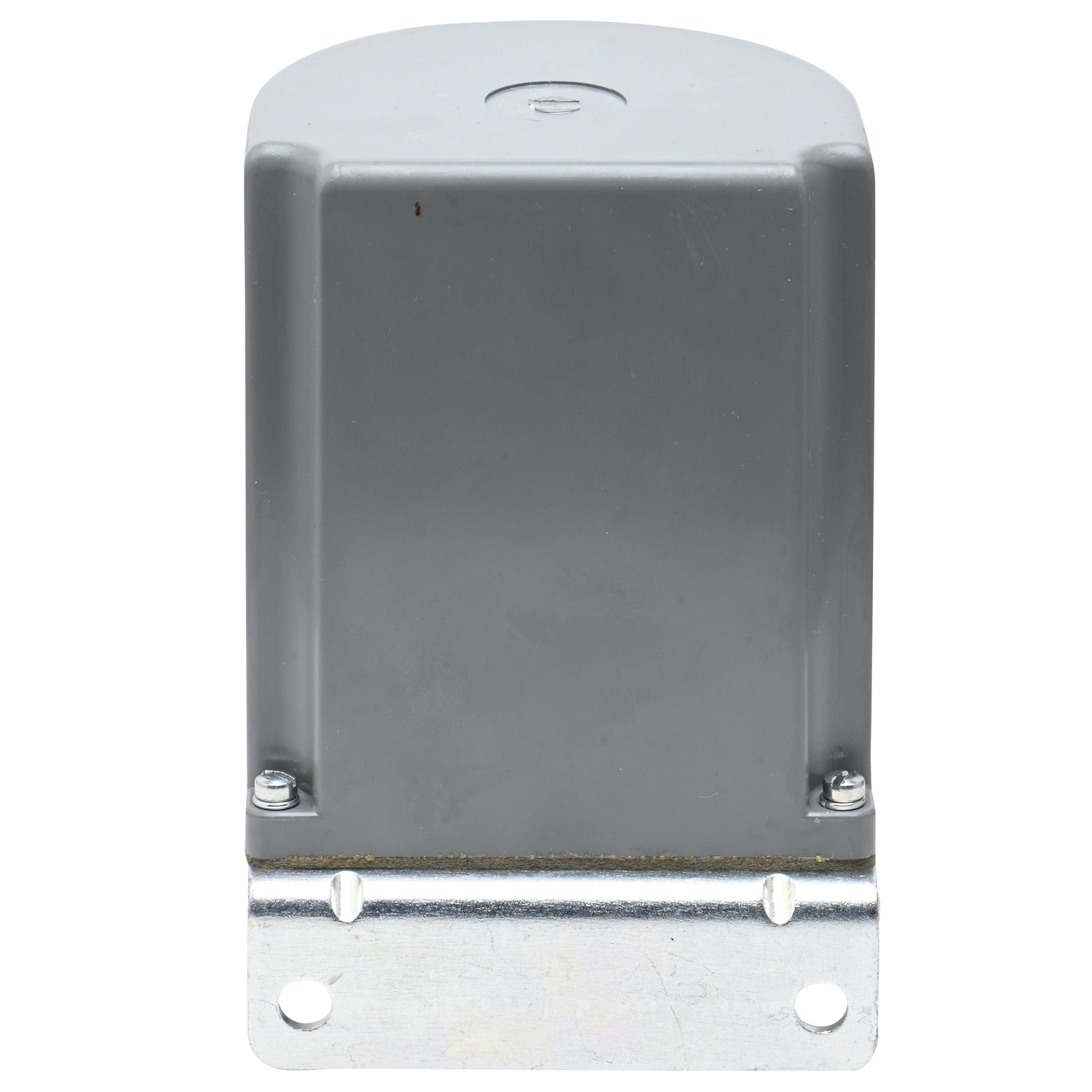

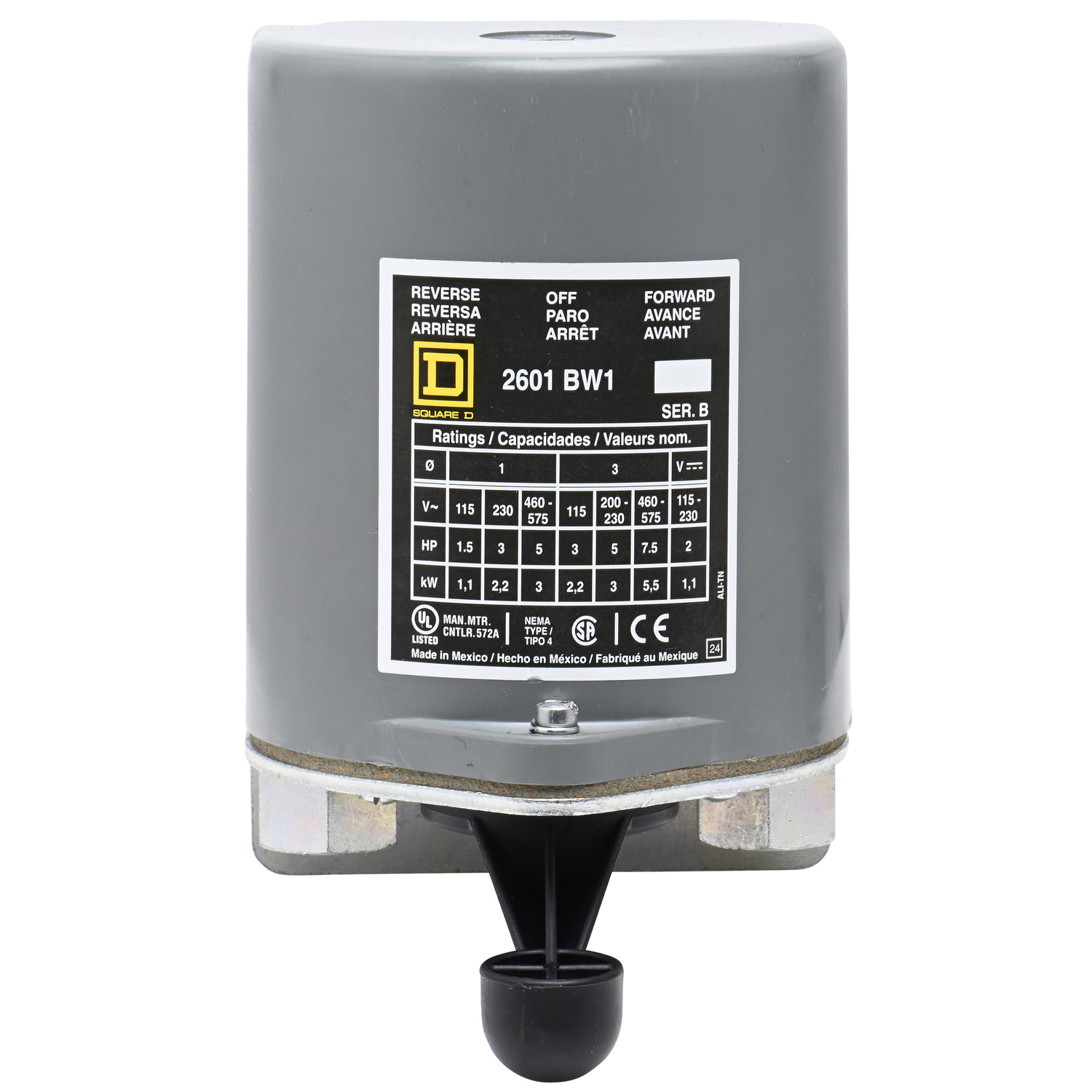

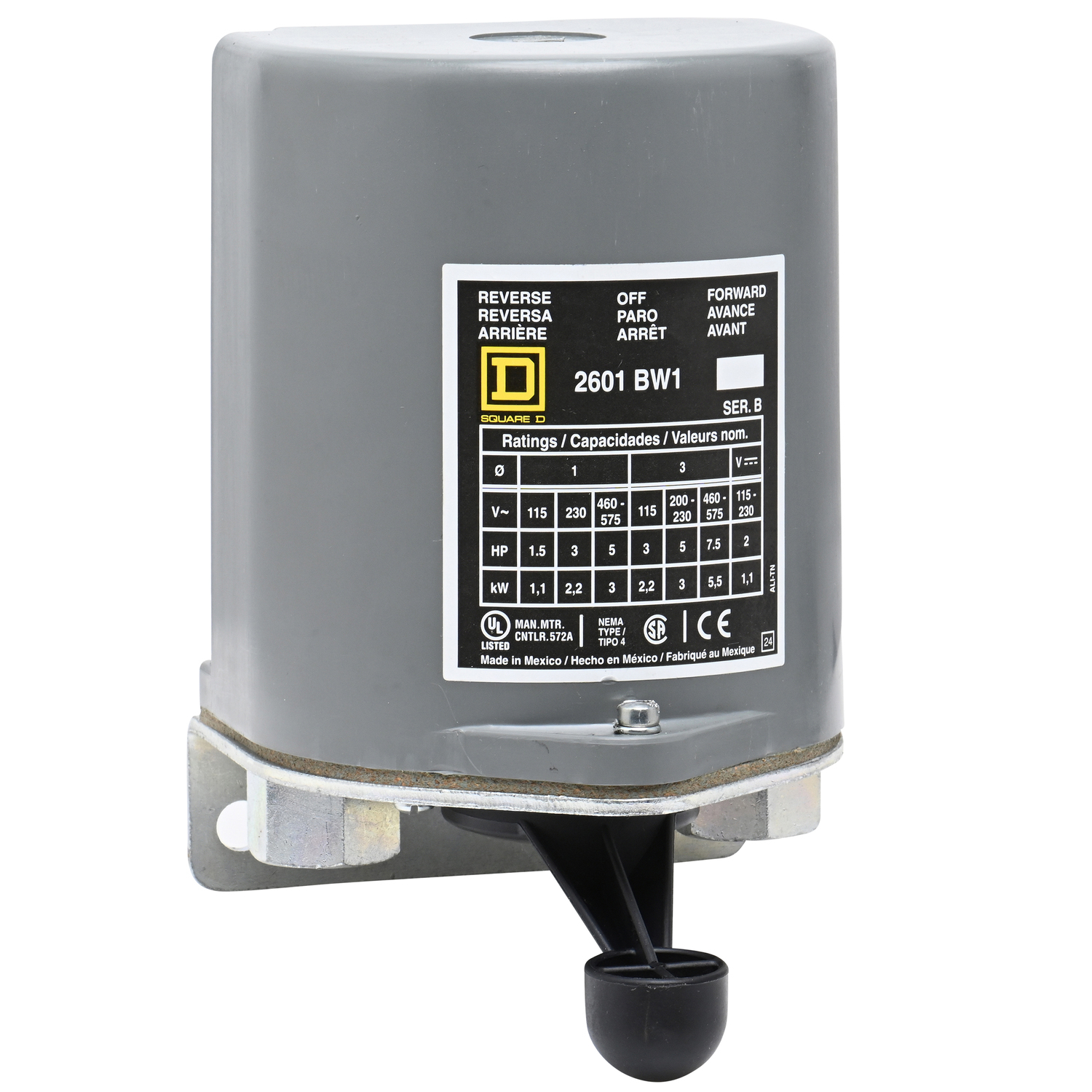

2601BW1 B Series Type BW Class 2601 Dust/Watertight Drum Switch, 600 V AC/250 V DC, 7-1/2 hp Power Rating, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- 2601BW1
- UPC:
- 785901784449
- Item #:
- 34365
2601BW1 B Series Type BW Class 2601 Dust/Watertight Drum Switch, 600 V AC/250 V DC, 7-1/2 hp Power Rating, 3 Poles
- MFR #:
- 2601BW1
- UPC:
- 785901784449
- Item #:
- 34365
2601 reversing drum switches are designed to starting and reversing motors by connecting them directly across the line. The devices can be used with squirrel cage and single-phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. A variety of enclosures are available. A NEMA 4 watertight and dusttight enclosure is used to protect this switch. Enclosure is 6.89 inches tall, 4.40 inches wide and 5.50 inches deep. Drum switches are UL listed and CSA certified.
Manuals & Documentation
| Catalog Number | 2601BW1 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| UPC | 785901784449 |
| GTIN | 00785901784449 |
| Width | 4.4 |
| Width UOM | Inch |
| Height | 6.89 |
| Height UOM | Inch |
| Depth | 5.5 IN |
