Square D

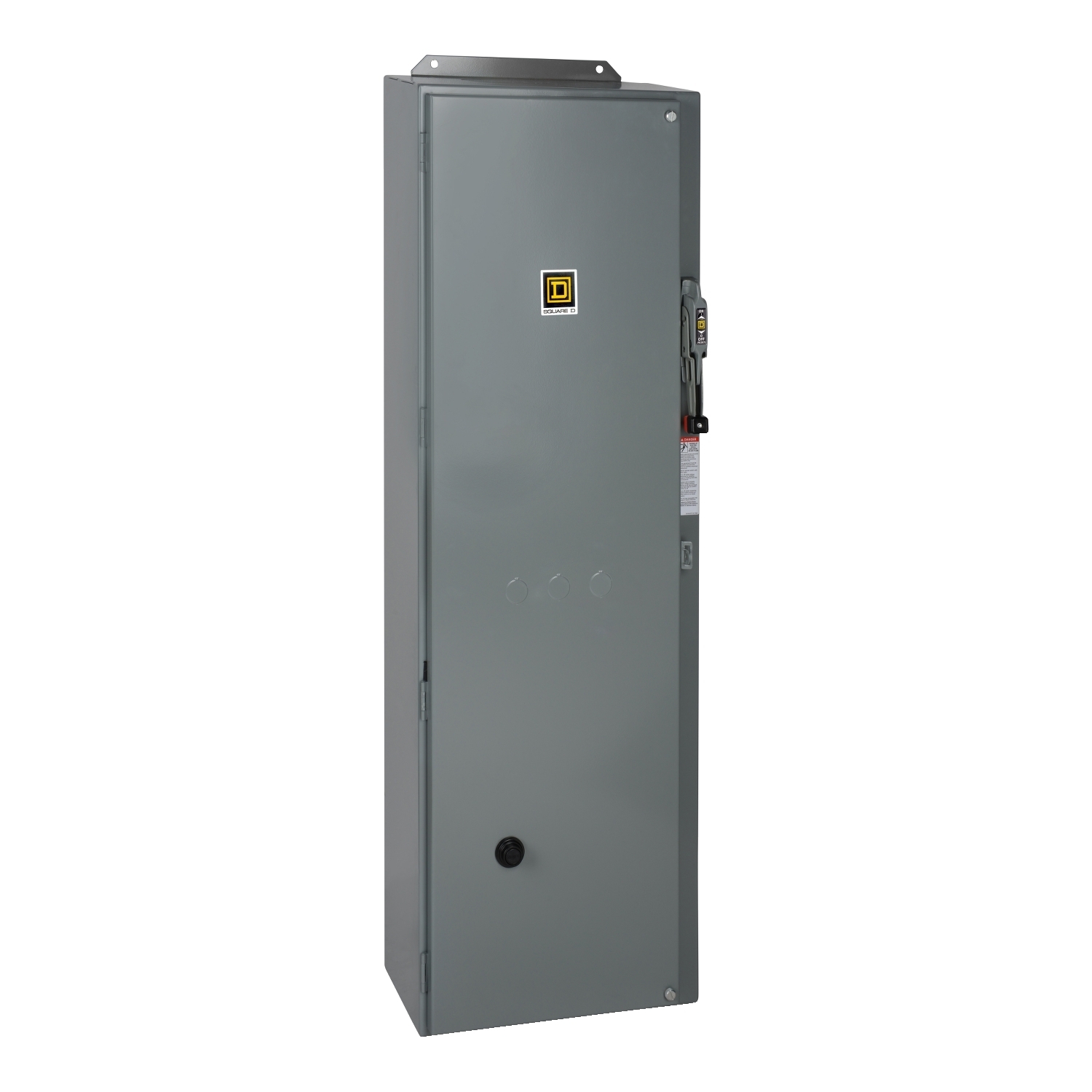

8538SFG13V02S Type S Combination Magnetic Starter With Fusible Disconnect Switch, 110 VAC at 50 Hz/120 VAC at 60 Hz Coil, Non-Reversing Action, 3 Poles, NEMA 1

MFR:
Schneider Electric
MFR #:
8538SFG13V02S
UPC:
785901858362
Item #:
340286

Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 4 starters have ratings of up to 100 HP at 480 and 600 VAC three phase. Combination starter has 200 ampere Class H fuse clips. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type CC thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 52.50 inches tall, 16.00 inches wide and 10.53 inches deep. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified.

Manuals & Documentation
Catalog Number 8538SFG13V02S
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Unknown
Made in USA No
UPC 785901858362
GTIN 00785901858362
