SQUARE D

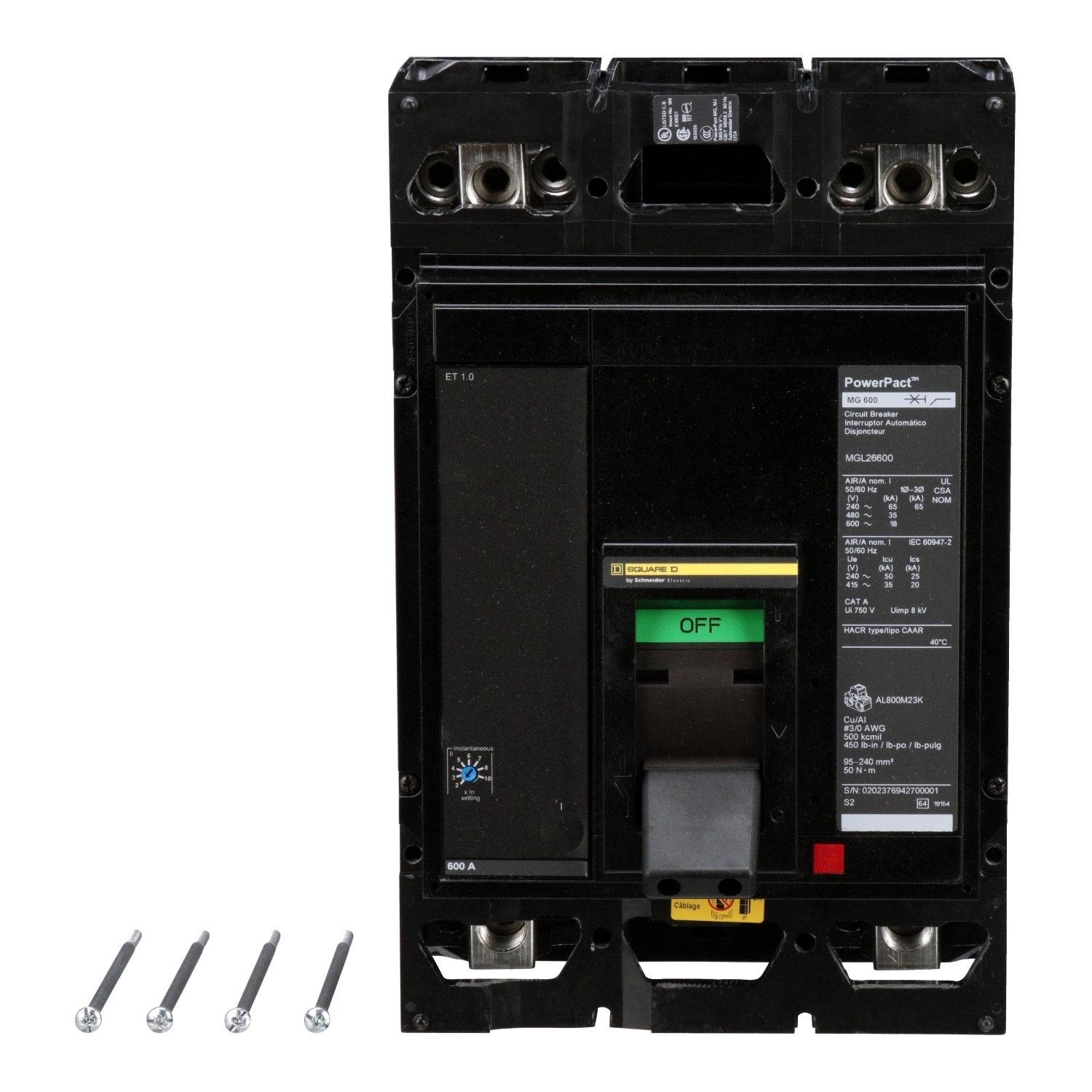

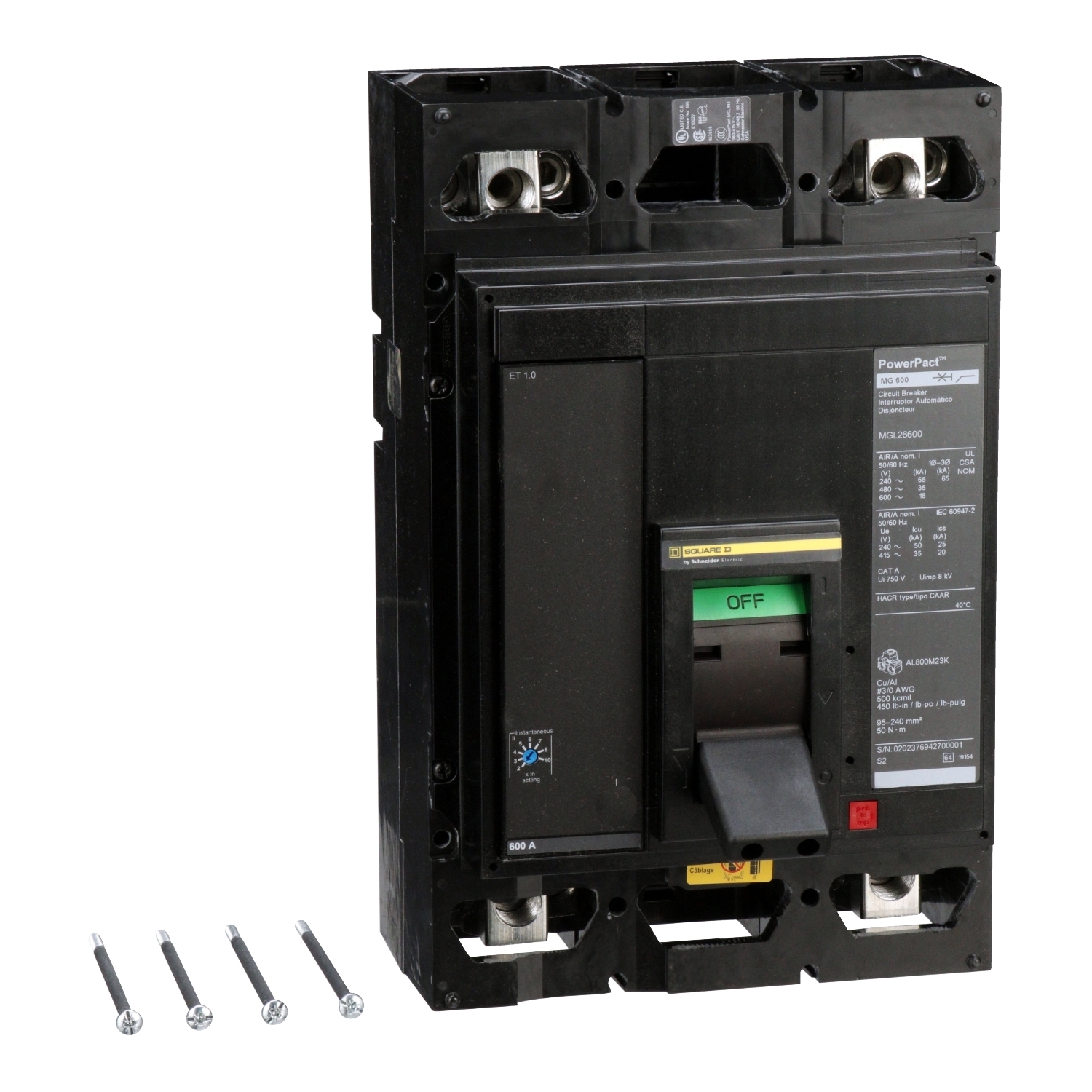

MGL26600 PowerPact Type MGL 80% Rated Molded Case Circuit Breaker, 600 V AC/250 V DC, 600 A, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Interrupt, 2 Poles, Electronic Trip

MFR:
Schneider Electric
MFR #:
MGL26600
UPC:
785901507604
Item #:
33922

PowerPacTM-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has lugs on both the line and load sides. This PowerPacT M, 600A, 2 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals & Documentation
Catalog Number MGL26600
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Actuator Operating handle
Application Distribution;HACR rated
Color Black
Connection Lugs, load;lugs, line; 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
Frequency Rating 50/60 Hz
Number of Poles 2
Special Features 1
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=430887&lang=en-us
UPC 785901507604
GTIN 00785901507604
Item Type Circuit breaker
Width 8.27
Width UOM Inch
Height 12.86
Height UOM Inch
Depth 8.05 IN
Trip Type Electronic, basic, ET 1.0,
