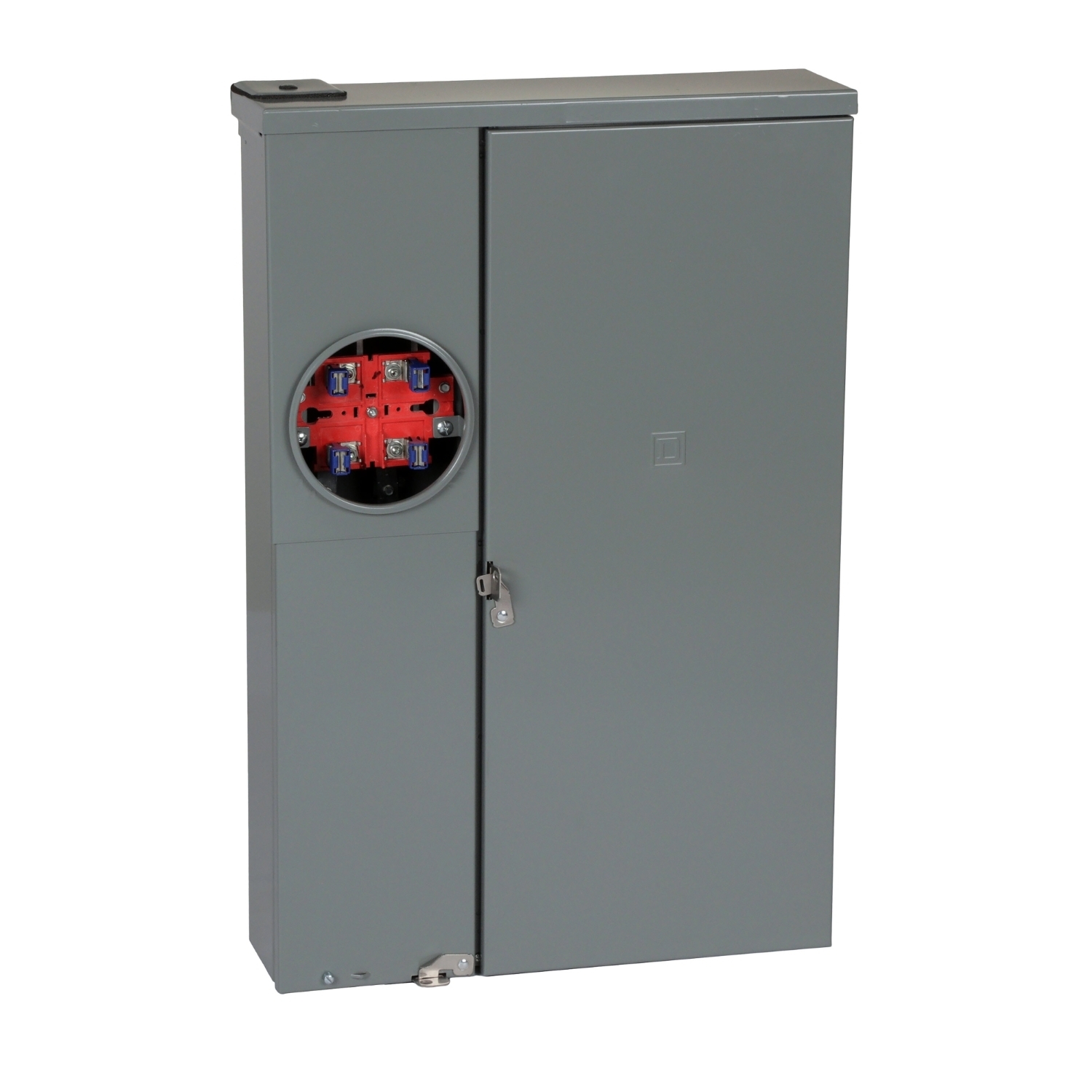

SC3042M200PS All-in-one, Homeline, CSED, Ringed Socket, 200 Amp, Surface Mount, 30 Spaces, 42 Circuits, 22 kA SCCR, No Bypass, Solar-ready
- MFR:
- Schneider Electric
- MFR #:
- SC3042M200PS
- UPC:
- 785901219767
- Item #:
- 338332
SC3042M200PS All-in-one, Homeline, CSED, Ringed Socket, 200 Amp, Surface Mount, 30 Spaces, 42 Circuits, 22 kA SCCR, No Bypass, Solar-ready
- MFR #:
- SC3042M200PS
- UPC:
- 785901219767
- Item #:
- 338332
The Square D Homeline Load Centers and HomelineSolar Ready PoN CSEDs, SC3042M200PS, provides metered service and a main circuit breaker and 16 full branch spaces up to 24 circuits using tandems. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2.Supplied with load side feed-thru lugs, for 4AWG-250 kcmil Al/Cu conductors.
Manuals & Documentation
| Catalog Number | SC3042M200PS |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Country of Origin | Mexico |
| Made in USA | No |
| Bypass Type | No Bypass |
| Mounting | Surface |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431809770&lang=en-us |
| UPC | 785901219767 |
| GTIN | 00785901219767 |

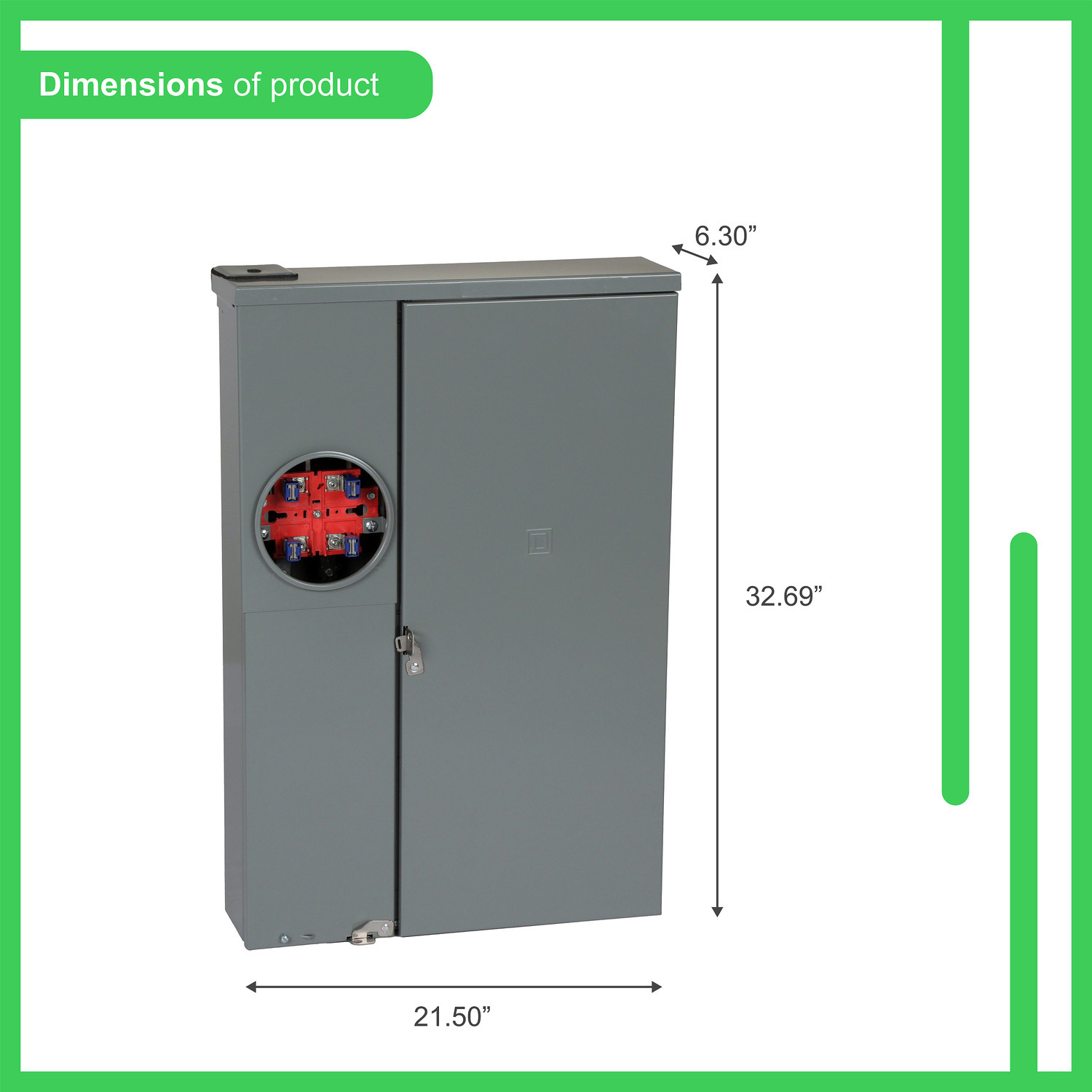

| Width | 21.5 |
| Width UOM | Inch |
| Height | 32.69 |
| Height UOM | Inch |
| Depth | 6.3 IN |
