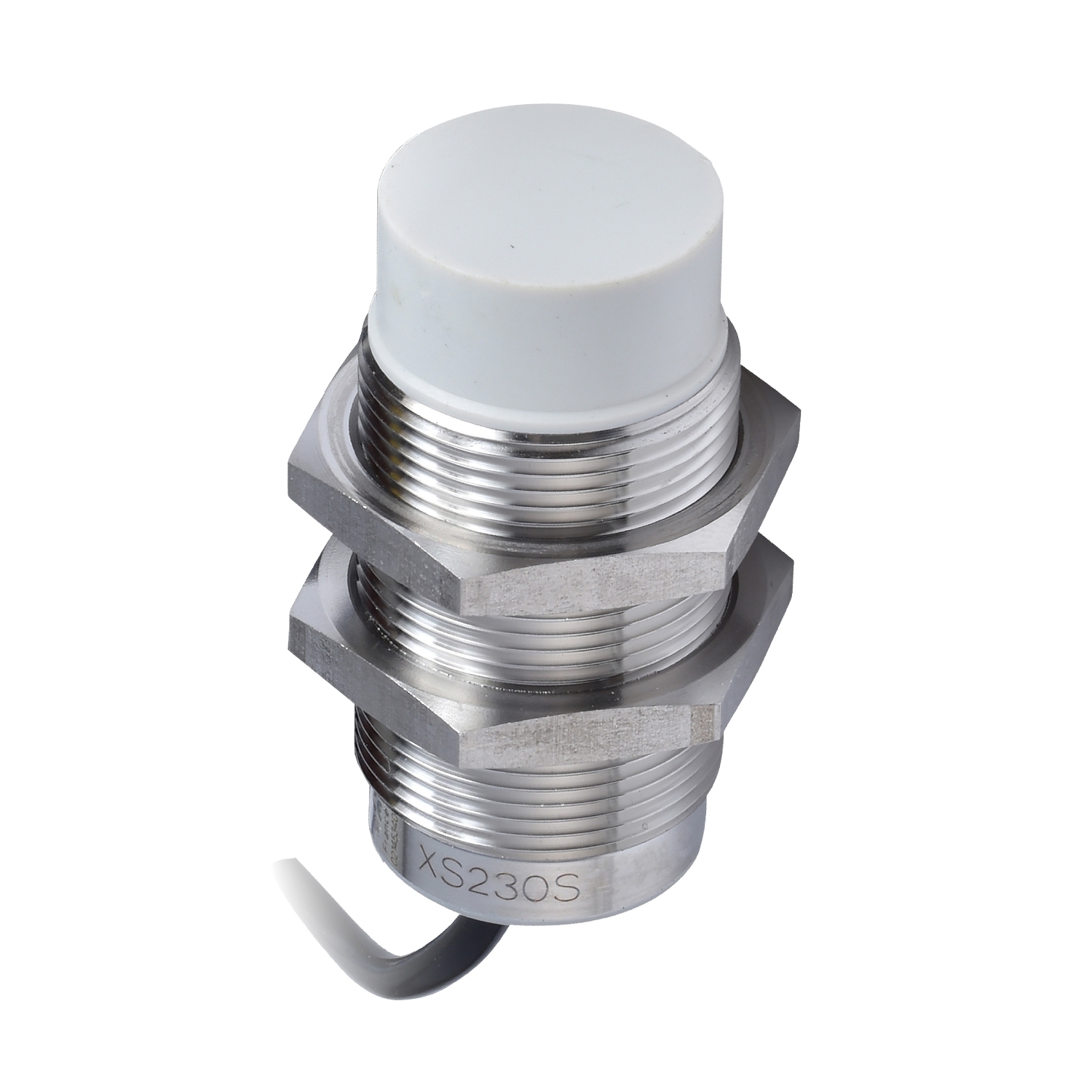

XS230SAMAL2 OsiSense XS Fixed Cylindrical Proximity Sensor, Inductive, Discrete Output, 1NO Contact, 20 to 264/24 to 240 V AC/V DC
- MFR:
- Telemecanique Sensors
- MFR #:
- XS230SAMAL2
- UPC:
- 785901932161
- Item #:
- 337358
XS230SAMAL2 OsiSense XS Fixed Cylindrical Proximity Sensor, Inductive, Discrete Output, 1NO Contact, 20 to 264/24 to 240 V AC/V DC
- MFR #:
- XS230SAMAL2
- UPC:
- 785901932161
- Item #:
- 337358
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. This sensor is part od the food and beverage processing series. It is a cylindrical, non flush mountable sensor. Diameter 30mm, threaded M30 x 1.5. It features a stainless steel cylindrical boby and a 2m long cable. It has a sensing distance of 22mm. Two-wire, 24V to 240V AC/DC , NO function, discrete output signal.
Manuals & Documentation
| Catalog Number | XS230SAMAL2 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Food and beverage |
| Connector | Cable |
| Control Output | 1 NO |
| Enclosure | Stainless steel 316 L |
| Indicator | Output state 1 LED yellow) |
| Material | Stainless steel |
| Mounting | Flush |
| Sensing Range | > 0.59...1.57 in (> 15...40 mm) |
| Sensor | 63 MM,INDUCTIVE PROXIMITY SENSOR |
| Special Features | STAINLESS STEEL |
| Standard | IP68 double insulation conforming to IEC 60529;IP69K conforming to DIN 40050;CE |
| Supply Voltage | 24...240 V AC 50/60 Hz;24...240 V DC |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=867862&lang=en-us |
| UPC | 785901932161 |
| GTIN | 03389119113380 |
| Item Type | Inductive proximity sensor;Cylindrical M30 |
| Operating Temperature | -25-85 A Degrees C |
