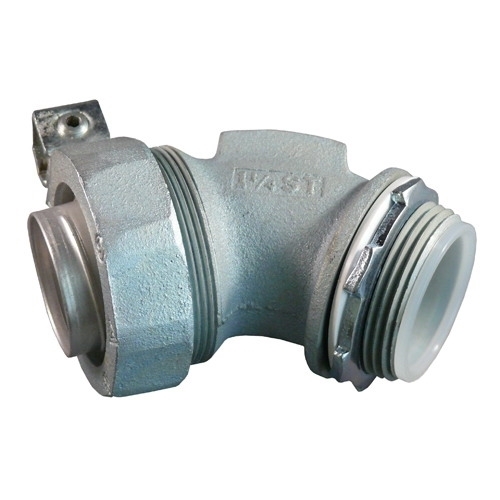

STB-45150L Liquid Tight Oiltight Raintight Conduit Connector With Insulated Throat, 1-1/2 in Trade, 8 to 1/0 AWG Cable Openings, 45 deg, Malleable Iron, Triple Coated
- MFR:
- Appleton Electric
- MFR #:
- STB-45150L
- UPC:
- 781381403733
- Item #:
- 336381
STB-45150L Liquid Tight Oiltight Raintight Conduit Connector With Insulated Throat, 1-1/2 in Trade, 8 to 1/0 AWG Cable Openings, 45 deg, Malleable Iron, Triple Coated
- MFR #:
- STB-45150L
- UPC:
- 781381403733
- Item #:
- 336381
STB Series 45 DEG Liquidtight Connector, Size: 1-1/2 IN, Connection: Threaded X Compression, Conductor Range: 8 - 1/0 AWG, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Thread Length: 0.63 IN, Standa
Manuals & Documentation
| Catalog Number | STB-45150L |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Liquidtight Flexible Metal Conduit |
| Conductor Range | 8 - 1/0 AWG |
| Connection | Threaded X Compression |
| Finish | Chromate, Epoxy Powder Coat/Zinc Electroplated |
| Material | Malleable Iron |
| Special Features | Includes insulated throat, external grounding lug; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection; Suitable for outdoor use; Full, machined tapered threads (NPT) |
| Standard | Class I, Division 2; UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1 |
| UPC | 781381403733 |
| GTIN | 00781381403733 |
| Item Type | STB Series 45 DEG Liquidtight Connector |
| Size | 1-1/2 |
