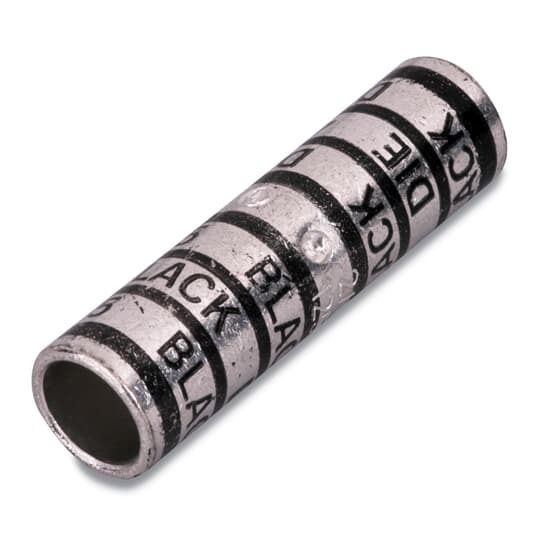

54811 Color-Keyed 2-Way Long Barrel Splice Connector, 3/0 AWG Copper Conductor, Die Code: 50, 2-1/4 in L, Copper
- MFR:
- ABB - Installation Products
- MFR #:
- 54811
- UPC:
- 786210548111
- Item #:
- 33572
54811 Color-Keyed 2-Way Long Barrel Splice Connector, 3/0 AWG Copper Conductor, Die Code: 50, 2-1/4 in L, Copper
- MFR #:
- 54811
- UPC:
- 786210548111
- Item #:
- 33572
Manuals & Documentation
| Catalog Number | 54811 |
| Manufacturer | ABB - Installation Products |
| Brand | COLOR-KEYED |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Applications certified to 600 V and recommended up to 35 kV¥ |
| Color | Orange |
| Conductor Range | 3/0-3/0 |
| Finish | Tin-Plated |
| Material | Copper |
| Special Features | Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost |
| Standard | UL E9809, CSA 4503 |
| UPC | 786210548111 |
| GTIN | 00786210548111 |
| Item Type | Splice Connector |
| Voltage Rating | 600 V |
| Cross Reference Products | 3M 11006|3M 11007|ABBInstall 54011|ABBInstall 54811|ABBInstall C-3/0 D|ABBInstall C30|ABBInstall CU30|Amprobe 03LBS|Anderson VHS30|Burndy YS27 |
