Telemecanique

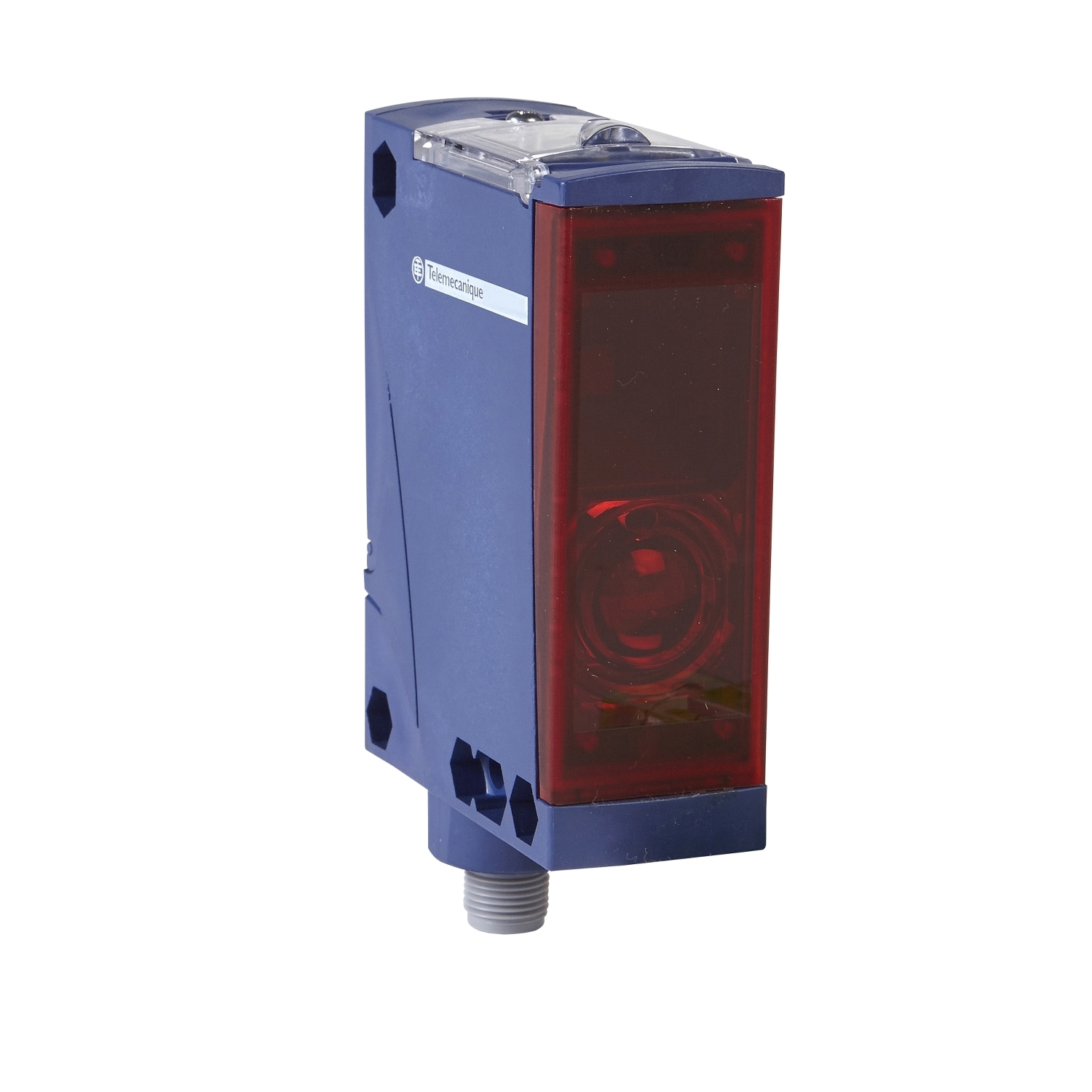

XUX8AKSAM12 OsiSense XU XUX Series Singlemode Compact Photoelectric Sensor, 2 m, Infrared Sensing Beam, 2.5 ms Response, NPN/PNP 1NO-1NC/Programmable Output

MFR:
Telemecanique Sensors
MFR #:
XUX8AKSAM12
UPC:
785901736271
Item #:
334640

This photo-electric sensor is part of the XU range. It is a compact design, 92mm x 77mm, plastic sensor, with an M12 connector. It is a diffuse system sensor with adjustable background suppression, with infrared transmission. 2m nominal sensing distance with high accuracy. 3-wire, PNP or NPN programmable, with NO or NC programmable function. This sensor is suitable for wrapping and outer wrapping applications.

Manuals & Documentation
Catalog Number XUX8AKSAM12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application Long sensing distance with high accuracy
Connection 1 male connector M12, 4 pins
Enclosure IP30 (WITH COVER OPEN) CONFORMING TO IEC 60529-IP65 (DOUBLE INSULATION) CONFORMING TO IEC 60529-IP67 (DOUBLE INSULATION) CONFORMING TO IEC 60529,PC
Output PNP or NPN;1 NO or 1 NC programmable;Discrete;Solid state
Response Time < 3.5 MS
Sensing Range 2-2 M,> 3.28...16.4 FT (> 1...5 M)
Special Features Supply on 1 LED green);instability 1 LED red);output state 1 LED yellow)
Standard CE-CSA-UL,IP30 IEC 60529 WITH COVER OPEN)-IP65 IEC 60529 DOUBLE INSULATION)-IP67 IEC 60529 DOUBLE INSULATION)
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=7052776&lang=en-us
UPC 785901736271
GTIN 03389119039888
Item Type General purpose single mode;Diffuse with background suppression;Compact 92 x 71;Photo-electric sensor
Size COMPACT 92 X 71
Operating Temperature -25-55 A�C
Voltage Rating 12...24 V DC reverse polarity protection
