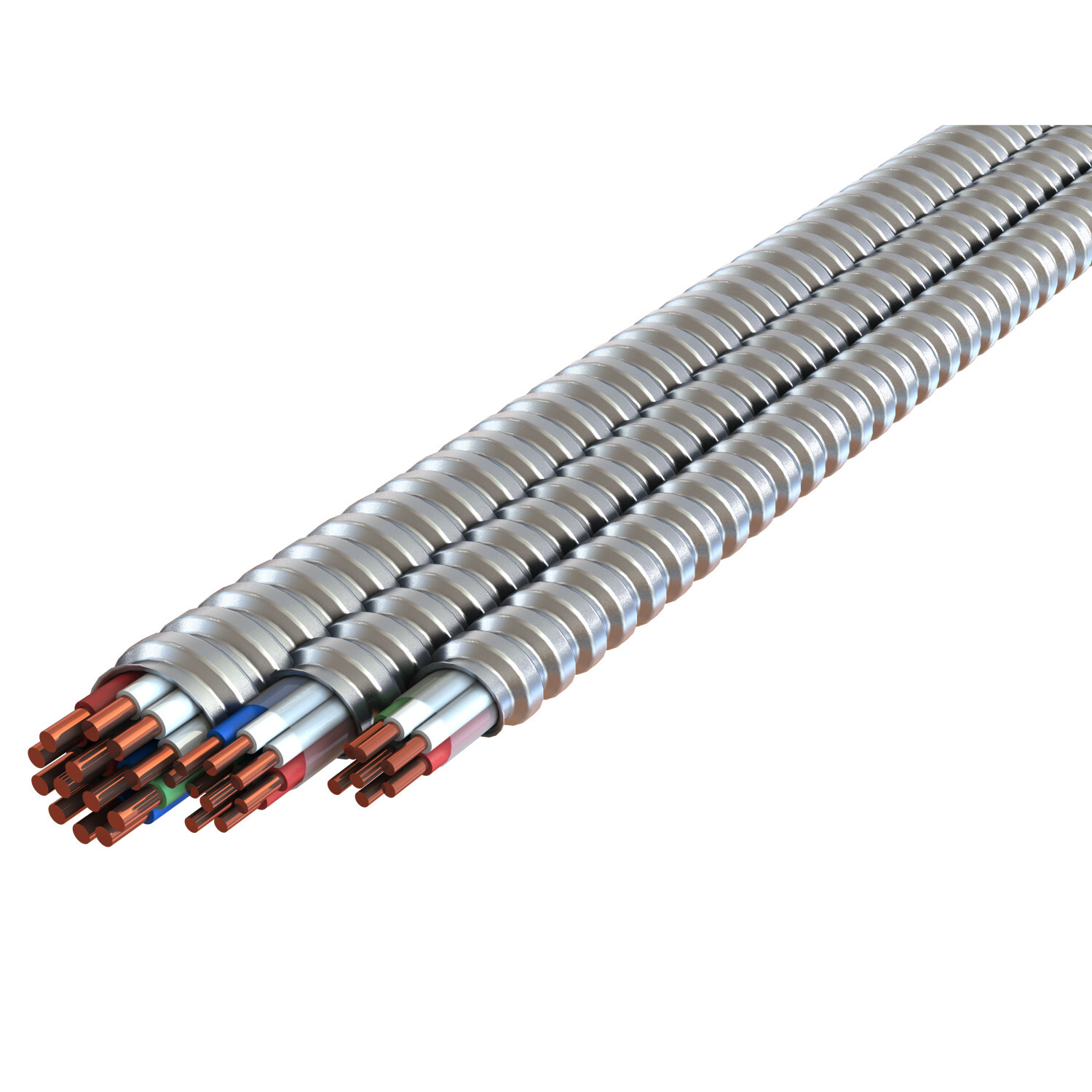

1901-60-00 Type MC Traditional Home Run Cable With Grounding Conductor, Reel Packaging, 600 V AC, (6) 12 AWG Solid Copper Conductor, 1000 ft L
- MFR:
- ATKORE - AFC CABLE
- MFR #:
- 1901-60-00
- UPC:
- 077680111852
- Item #:
- 333300
1901-60-00 Type MC Traditional Home Run Cable With Grounding Conductor, Reel Packaging, 600 V AC, (6) 12 AWG Solid Copper Conductor, 1000 ft L
- MFR #:
- 1901-60-00
- UPC:
- 077680111852
- Item #:
- 333300
Introduced in the 1980s, Atkore's Home Run Cable is a multi-conductor Type MC cable for power & lighting, with color-coded phase conductors with separate circuit markings. Suitable for use in hotels, office buildings, and warehouses, it meets UL Standard 1569 and NEC 330, and has no conductor limit. Derating is required per NEC Table 310.15(B)(3)(a). It has polypropylene tape, insulated green grounding, and galvanized steel armor (aluminum available). See Atkore's MC Plus for a modern Neutral per-phase design.
Manuals & Documentation
| Catalog Number | 1901-60-00 |
| Manufacturer | ATKORE - AFC CABLE |
| Brand | AFC CABLE SYSTEMS |
| Sub Brand | Home Run Cable |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Multi-conductor runs from panel board to junction box for power, lighting, control and signal circuits, also used in repetitive home runs in multi-story hotels, dormitories, commercial office buildings and warehouse applications. |
| Armour | Interlocked Galvanized Steel Strip |
| Bend Radius | 9.345 |
| Color | Plain |
| Conductor Material | Copper |
| Conductor Size | 6 AWG |
| Finish | Galvanized |
| Material | Galvanized Steel |
| Number of Conductors | 7 |
| Standard | NEC® 230.43, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 645 |
| UPC | 077680111852 |
| GTIN | 00077680111852 |
| Length | 1000 |
| Length UOM | Foot |
| Weight | 0.2918 LB/FT |
| Inside Diameter | 0.423 IN |
| Outside Diameter | 0.623 IN |
| Temperature Rating | 194 |
| Trade Size | 12-6 |
| Voltage Rating | 600V |
