Telemecanique

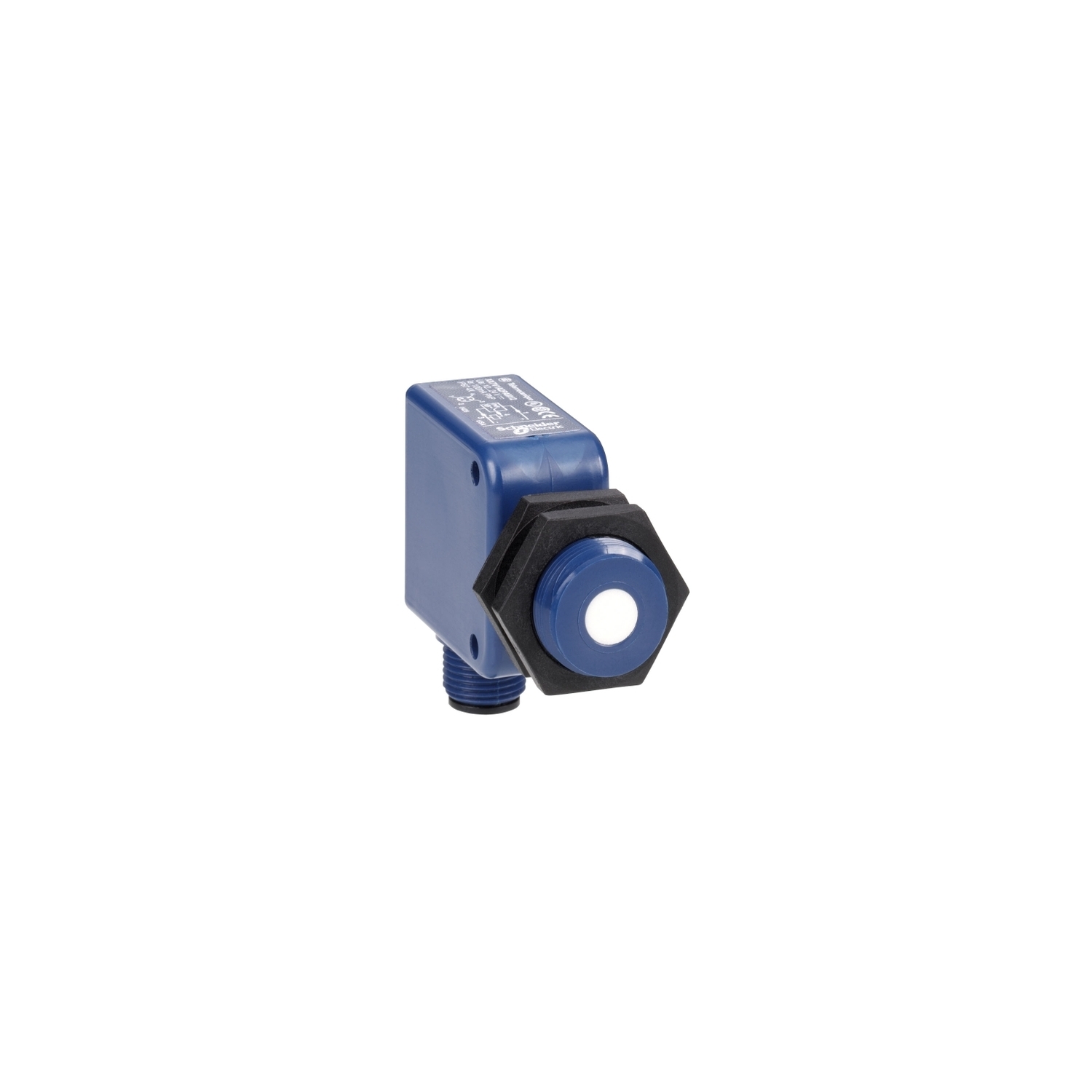

Hyde Park, ultrasonic sensor flat form + M18, Sn508mm, 0...10 V, M12

MFR:
Telemecanique Sensors
MFR #:
VM1VAQ
UPC:
785901546795
Item #:
333236

This product is part of the Hyde Park range, an offer of ultrasonic sensors. This ultrasonic sensor in a flat form, cylindrical M18 design and adjustable sensing type window. It supports 508mm nominal sensing distance and 0V to 10V autoslope analog output. It is an ultrasonic sensor with a rated supply voltage of 15V to 24V DC with overload, short circuit protection and current consumption of 40mA. It is furnished with 4-pin M12 male connector for electrical connection. It is an IP67 and NEMA 4X rated product. The enclosure is made of Valox with glass epoxy front. Its dimensions are 65.61mm (length) x 18mm (width) x 43.7mm (height). It weighs 0.033kg. It is suitable for packaging, automotive, food and beverage processing applications. This product is certified by CE and UL. The Hyde Park ultrasonic sensors operate in diffuse, reflex and thru beam modes. This range of sensors even includes long distance detection models. Hyde Park ultrasonic sensors perform contactless, reliable and high performance detection regardless of the target's shape, texture, color or transparency.

Manuals & Documentation
Catalog Number VM1VAQ
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application -
Connector Male connector M12 4 pins
Enclosure Valox
Indicator Off when object is within range 1 LED green)
Material Plastic
Sensing Range 50.8...508 MM
Sensor 43.7 MM 65.61 MM ULTRASONIC SENSOR
Special Features PLASTIC
Standard UL
Supply Voltage 15...24 V DC overload and short-circuit protection
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=56038757&lang=en-us
UPC 785901546795
GTIN 00785901546795
Item Type Ultrasonic sensor;Flat form + cylindrical M18
Environmental Conditions 100 WITHOUT CONDENSATION
Operating Temperature -30...70 A Degrees C
Target Size CYLINDER DIAMETER 2.5 MM - UP TO 200 MM SENSING DISTANCE
