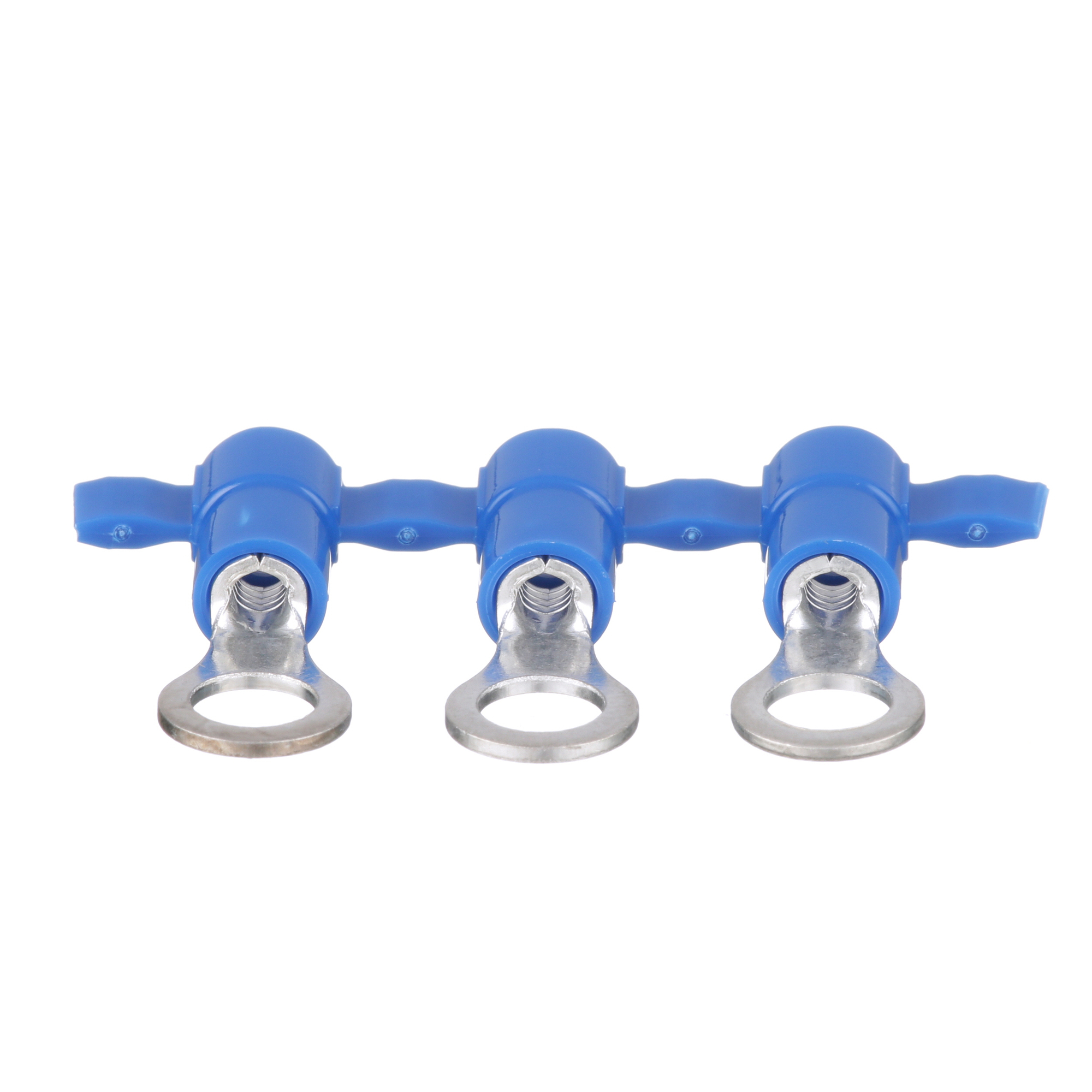

PV14-10RB-3K Reel Smart Type PV-RB Reel Ring Terminal, 14 AWG Conductor, 0.86 in L, Funnel Entry/Insulation Support Barrel, Copper, Blue
- MFR:
- Panduit
- MFR #:
- PV14-10RB-3K
- UPC:
- 074983803576
- Item #:
- 33291
PV14-10RB-3K Reel Smart Type PV-RB Reel Ring Terminal, 14 AWG Conductor, 0.86 in L, Funnel Entry/Insulation Support Barrel, Copper, Blue
- MFR #:
- PV14-10RB-3K
- UPC:
- 074983803576
- Item #:
- 33291
The PV14-10RB-3K Reel Smart Terminal is a continuously molded and fully insulated ring terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength
| Catalog Number | PV14-10RB-3K |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Blue |
| Connection | Funnel Entry |
| Enclosure | Ring shape |
| Finish | Tin-Plated |
| Insulation | Vinyl |
| Material | Copper |
| Standard | cULus Listed 587H E52164, CSA Certified LR31212 |
| UPC | 074983803576 |
| GTIN | 00074983803576 |
| Item Type | Ring Terminal |
| Size | #10 |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #14 AWG |
