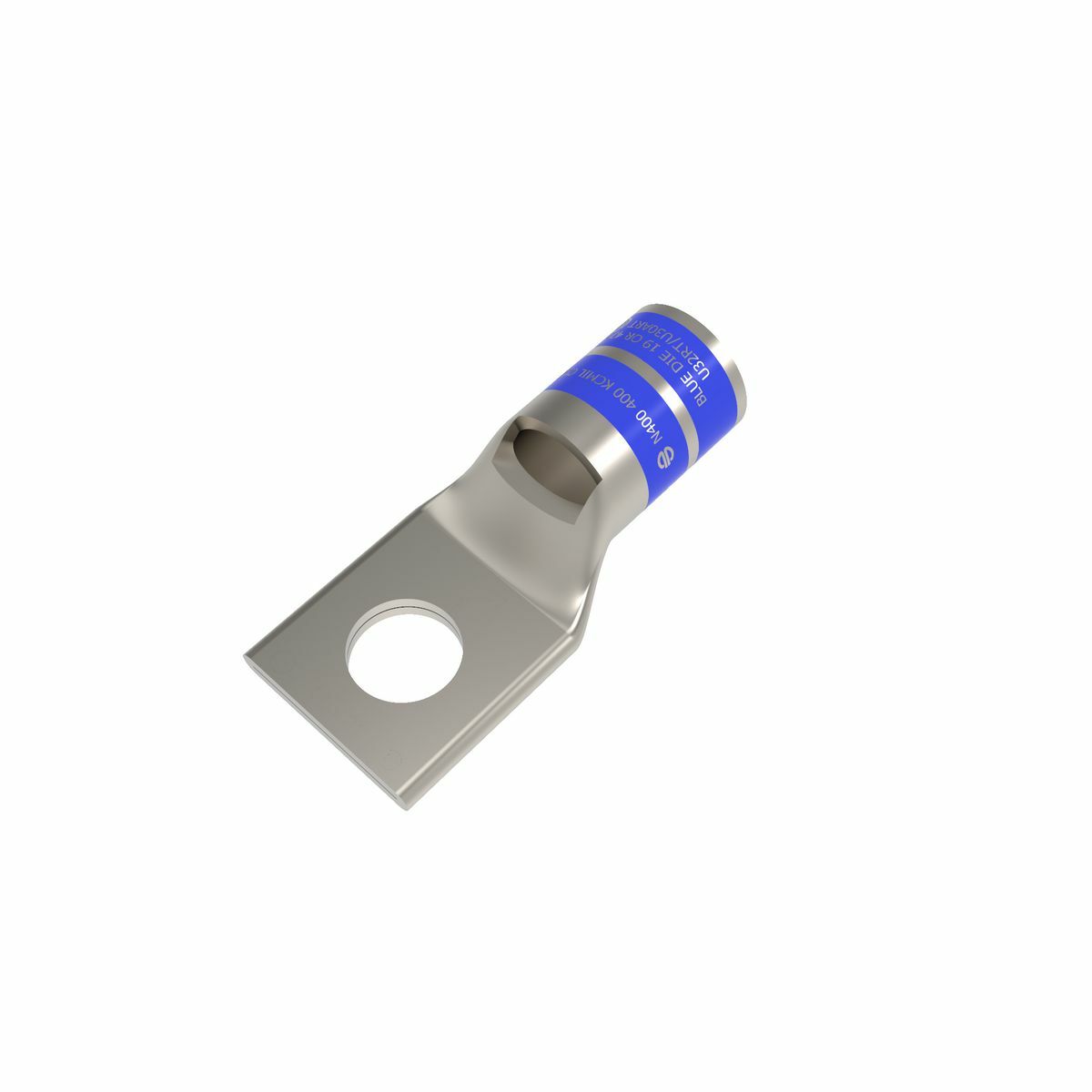

YA32L YA-L 1-Hole Compression Lug With Inspection Window, 400 kcmil Stranded Copper Conductor, Die Code: 19, 5/8 in Stud, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YA32L
- UPC:
- 781810505656
- Item #:
- 332763
YA32L YA-L 1-Hole Compression Lug With Inspection Window, 400 kcmil Stranded Copper Conductor, Die Code: 19, 5/8 in Stud, Copper
- MFR #:
- YA32L
- UPC:
- 781810505656
- Item #:
- 332763
Manuals & Documentation
| Catalog Number | YA32L |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 1-1/4 IN, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Tongue Angle: Straight, Die Index: 19, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W32VT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W32VT, W32RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U32RT, U30ART Die, (2), Y46 Tool, U32RT, U30ART Die With PUADP-1 Adapter, (2), Color Code: Blue, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Conductor Type: Commercial Stranded Copper |
| Standard | UL 486A-486B |
| UPC | 781810505656 |
| GTIN | 00781810505656 |
| Item Type | Standard Barrel, Tin Plated |
| Voltage Rating | 35 |
