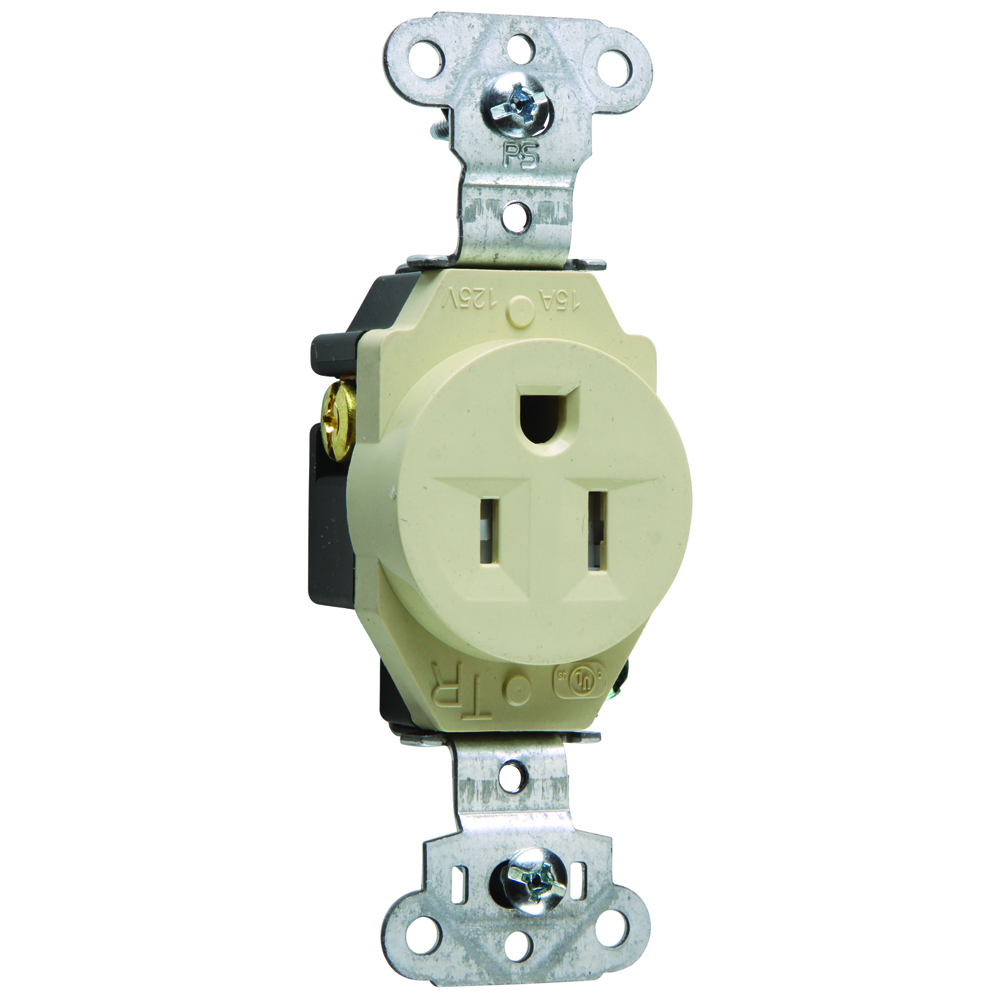

TR5251I 15 Amp 125V Construction Spec-Grade Single Receptacle, Back and Side Wire, Ivory
- MFR:
- Legrand-Pass & Seymour
- MFR #:
- TR5251I
- UPC:
- 785007241969
- Item #:
- 33196
TR5251I 15 Amp 125V Construction Spec-Grade Single Receptacle, Back and Side Wire, Ivory
- MFR #:
- TR5251I
- UPC:
- 785007241969
- Item #:
- 33196
Tamper-Resistant Construction Spec Grade Single Receptacles, Back and Side Wire, 15A, 125V
| Catalog Number | TR5251I |
| Manufacturer | Legrand-Pass & Seymour |
| Brand | Legrand-Pass & Seymour |
| Warranty Description | 1-Year Limited Warranty |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 15 |
| Application | Commercial |
| Color | Ivory |
| Connection | Back and side wire |
| Material | Nylon |
| Mounting | Wall |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Special Features | Dual mechanical shutter system to help prevent insertion of foreign objects. Two drive screws anchor strap to back body and face where abrupt removal torque is greatest. Heavy-duty corrosion-resistant zinc-plated steel strap for added strength. Backed-out tri-drive steel terminal screws for faster installation. Internal screw-pressure-plate back and side wire capability. Two back wire holes for additional wiring flexibility. One-piece brass triple-wipe power contacts for lasting retention. |
| Standard | UL498, CSA C22.2 No. 42 |
| UPC | 785007241969 |
| GTIN | 00785007241969 |
| Item Type | Tamper-Resistant Construction Spec Grade Single Receptacle |
| Size | 1.296 L x 1.190 W x 3.28 H |
| Environmental Conditions | Flammability: UL94 V2 |
| Temperature Rating | -40° - 60° C |
| Voltage Rating | 125 |
| Wire Size | 14 - 10 AWG |
