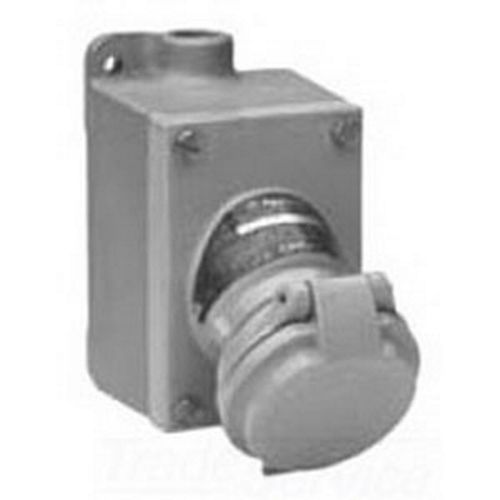

CPS152201 Contender CPS 1-Gang Dead End Explosionproof Receptacle Assembly With Mounting Box, 125 to 250 V AC/18 V DC, 20 A, 3 Poles, 2 Wires
- MFR:
- Appleton Electric
- MFR #:
- CPS152201
- UPC:
- 781381090599
- Item #:
- 330292
CPS152201 Contender CPS 1-Gang Dead End Explosionproof Receptacle Assembly With Mounting Box, 125 to 250 V AC/18 V DC, 20 A, 3 Poles, 2 Wires
- MFR #:
- CPS152201
- UPC:
- 781381090599
- Item #:
- 330292
Contender CPS Series 1-Gang Receptacle With Mounting Box, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 125 - 250 VAC, 18 VDC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Cover, Malleable Iro
Manuals & Documentation
| Catalog Number | CPS152201 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | For CPP516 Plug |
| Connection | Pressure Wire Terminal |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum Cover, Malleable Iron Mounting Box |
| Mounting | Surface |
| Number of Poles | 3 |
| Number of Wires | 2 |
| Special Features | Explosionproof, delayed action; Covers are UL Listed when used with Contender series mounting bodies; CPS factory sealed: external seals not required; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; Captive hex head slotted, stainless steel screws; Receptacles are supplied with pressure terminal connectors; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps; Fiberglass reinforced thermoset polyester insulating blocks |
| Standard | Class I, Division 1 And 2, Groups C, D; UL 1010 (UL 1203), UL 894; UL Listed: E10784 |
| UPC | 781381090599 |
| GTIN | 00781381090599 |
| Item Type | CPS Series 1-Gang Receptacle With Mounting Box |
| Voltage Rating | 125 - 250 VAC, 18 VDC |
