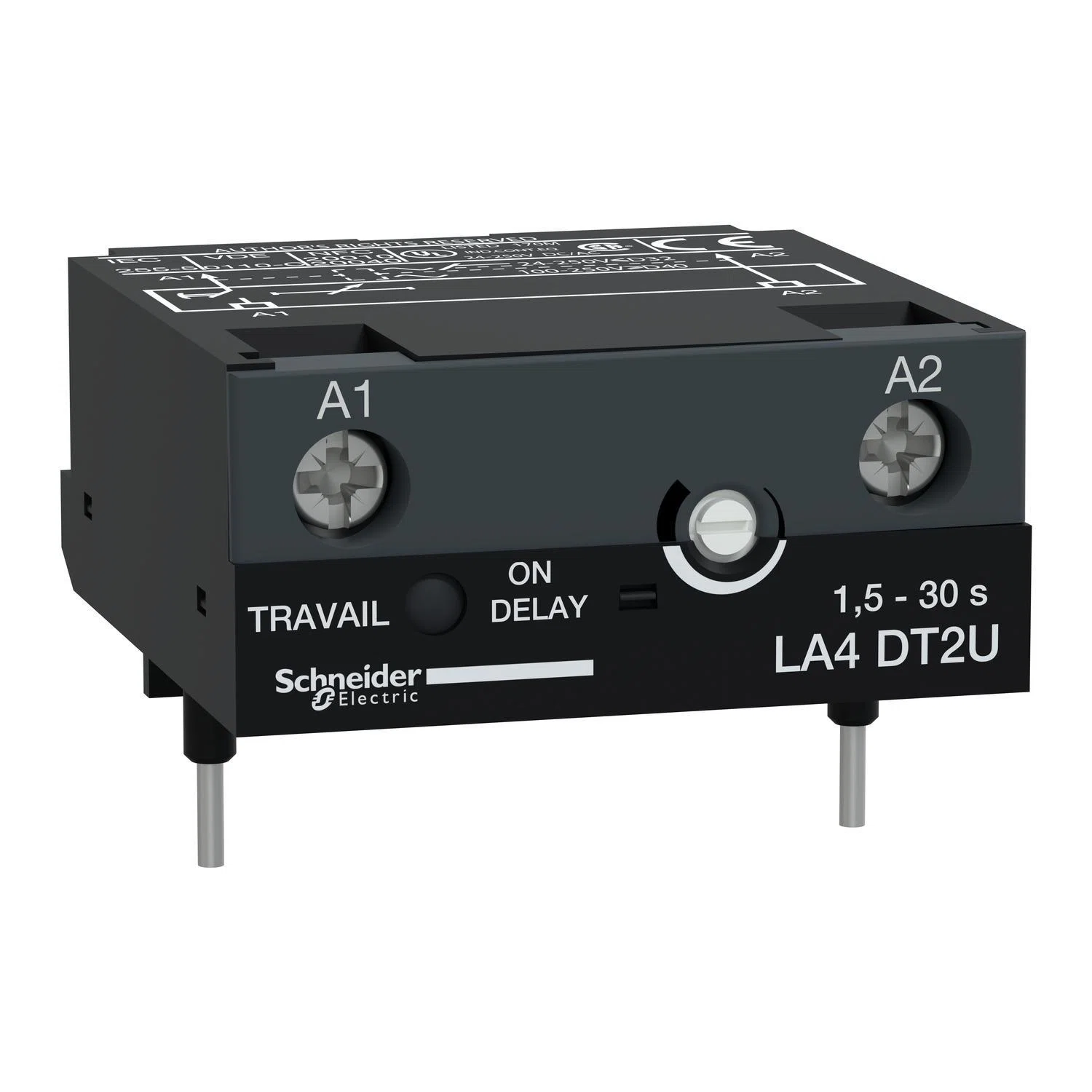

LA4DT2U TeSys On-Delay Screw-In Electronic Timer Module, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LA4DT2U
- UPC:
- 785901260998
- Item #:
- 329932
LA4DT2U TeSys On-Delay Screw-In Electronic Timer Module, 3 Poles
- MFR #:
- LA4DT2U
- UPC:
- 785901260998
- Item #:
- 329932
TeSys Deca electronic timer module for LC1D09-D38, LC1D40A-D80A, LC1D80-D150 (3P) contactors. To be used with 24-250V AC control circuit voltages, it provides a manual ajustable on-delay time 1.5 to 30 sec. The time delay period is signalling by LED. Mounting on contactors LC1D09-D38 using adapter LAD4BB, on contactors LC1D40A-D80A using adpater LAD4BB3, on contactors LC1D80-D150 (3P) directly on coil terminals. Multi standards certified (IEC, UL, CSA), it conforms to RoHS/REACh regulation.
Manuals & Documentation
Features
- Meet the need for relay control contact of TeSys Deca contactor and control relay
- Top mounted on device
- Replacable
| Manufacturer Part Number | LA4DT2U |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901260998 |
| EAN | 3389110236460 |
| Country Of Origin | TN |
| Series | LA4D |
| Type | On-Delay Screw-In |
| Alternative Part Number | 8110172 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 3 years |
| Standards Approvals | CSA Certified | ECCN: EAR99 | IEC 60255-5 | RoHS Compliant | UL Listed |
| Number Of Poles | 3 |
