BURNDY

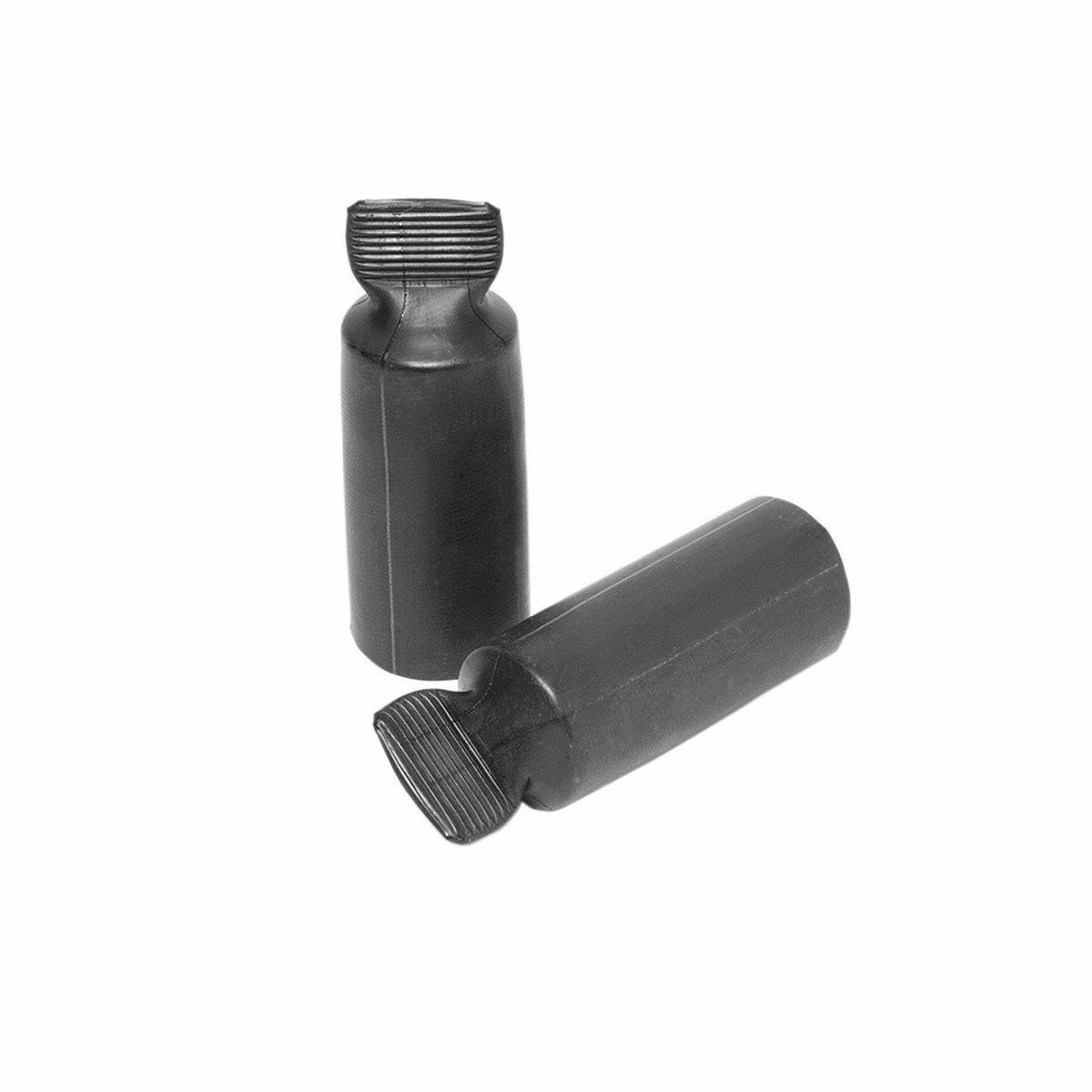

HSIC10500FR 1-Outlet Cross-Linked Fire Retardant Heavy Wall Heat Shrinkable End Cap, 600 V AC, 1.1 in ID Expanded, 0.35 in ID Recovered, 01-03-2019 Shrink Ratio, Copper Free Aluminum

MFR:
Burndy, a Hubbell affiliate
MFR #:
HSIC10500FR
UPC:
781810266557
Item #:
329521
Manuals & Documentation
Catalog Number HSIC10500FR
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin Canada
Made in USA No
Application For Used To Insulating Exposed Conductors In Energized Applications
Color Black
Special Features Features: Type HSIC-FR, Heat Shrink Insulating End Cap Fire Retardant Is A Heavy Wall, Fire Retardant End Cap Made Of Cross-Linked Thermally Stabilized Black Polyolefin, Used To Insulate Exposed Conductors In Energized Applications, The 3:1 Shrink Ratio Offers Greater Range, Accommodating Copper Wire Sizes, 8 AWG Thru 2500+ KCMIL, Performs Effectively Over Lead, Aluminum, Steel, Polyethylene, EPR, And PVC Jacketed Materials, Blue Thermal Chromatic Lines Disappear Indicating Correct Installation Temperature And Provide Inspectability, I.D. Adhesive Provides Superior Moisture And Weather Resistant Characteristics, Minimum 28 Oxygen Index, UL94-VO Rated: Self-Extinguishing Flame Retardant Properties, 3:1 Shrink Ratio: Minimum Inventory Required, Thermal Chromatic Lines: Indicate Proper Installation, Low Shrink Temperature 150 DEG C: Only Requires Common Hot Air Gun To Apply, Meets Sealing Requirements: ANSI-C119.1, UL486D, Weather And Moisture Resistant, Inner Diameter Expanded: 1.1 IN Minimum, Inner Diameter After Recovery: 0.35 IN Maximum, Conductor Range: 1/0 AWG - 500 KCMIL (Code), 1 AWG - 313.1 KCMIL (Flex), Material: Cross-Linked Thermally Stabilized Black Polyolefin
UPC 781810266557
GTIN 00781810266557
Item Type HSIC-FR, Heavy Wall, Fire Retardant
