Appleton

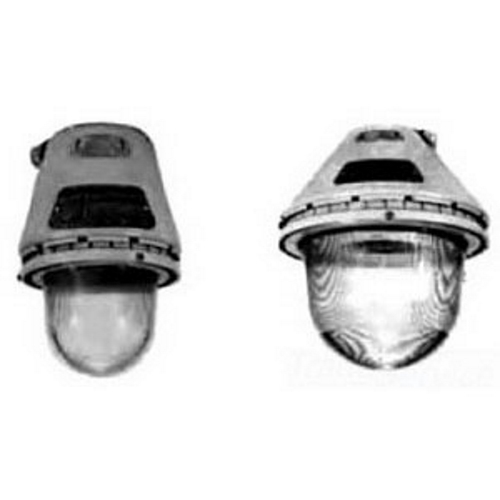

AAU-15N Unilets A-51 Explosionproof Factory Sealed Incandescent Luminaire, (1) Lamp, 150 to 300 W Fixture, Epoxy Clad/Powder Coated Housing

MFR:
Appleton Electric
MFR #:
AAU-15N
UPC:
781381130837
Item #:
328825

UNILETS A-51 Series Incandescent Factory Sealed Luminaire Without Guard, Lamp Type: 150 - 300 WTT A23/PS25 Medium Incandescent, Lamp Wattage: 150 - 300 WTT, Number Of Lamps: 1, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Fixture

Manuals & Documentation
Catalog Number AAU-15N
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application Ideal For Use In Chemical And Petrochemical Plants And In Other Heavy Process Areas Where Ignitable Vapors, Dust, Moisture And Corrosive Atmospheres May Be Present; Suitable For Use In Wet Locations; Use With Threaded Metal Conduit
Lamp Type 150 - 300 WTT A23/PS25 Medium Incandescent
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum Fixture And Guard
Special Features All A-51 fixtures are factory-sealed, no external sealing fittings required; New high temperature phenolic connection block in mounting hood has rugged leaf spring contacts - loosen two screws, rotate and remove for quick wiring; Safe, easy servicing or relamping without disconnecting any wiring; Wireless fixture unit easily threads off mounting hood for convenient servicing or for immediate exchange with stand-by unit; All joints are flame-tight; Specially formulated two-coat baked epoxy enamel provides superior protective finish to resist corrosion; New high temperature glass-reinforced phenolic socket block in fixture unit has collector ring and pin that automatically make electrical contact as fixture unit is threaded onto mounting hood; Prismatic configuration on globe interior provides light control while allowing smooth exterior surface for cleaning; All fixtures have aluminum inner reflector for increased lumen efficiency; Easily mount to globe ring with 3 screws
Standard Group A And B: Class I, Division 1 And 2, Groups A , B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III; Group C And D: Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III; UL 1598, UL 844, UL E10444, C22.2 No. 250, C22.2 No. 137, CSA 025428
UPC 781381130837
GTIN 00781381130837
Item Type A-51 Series Incandescent Factory Sealed Luminaire Without Guard
