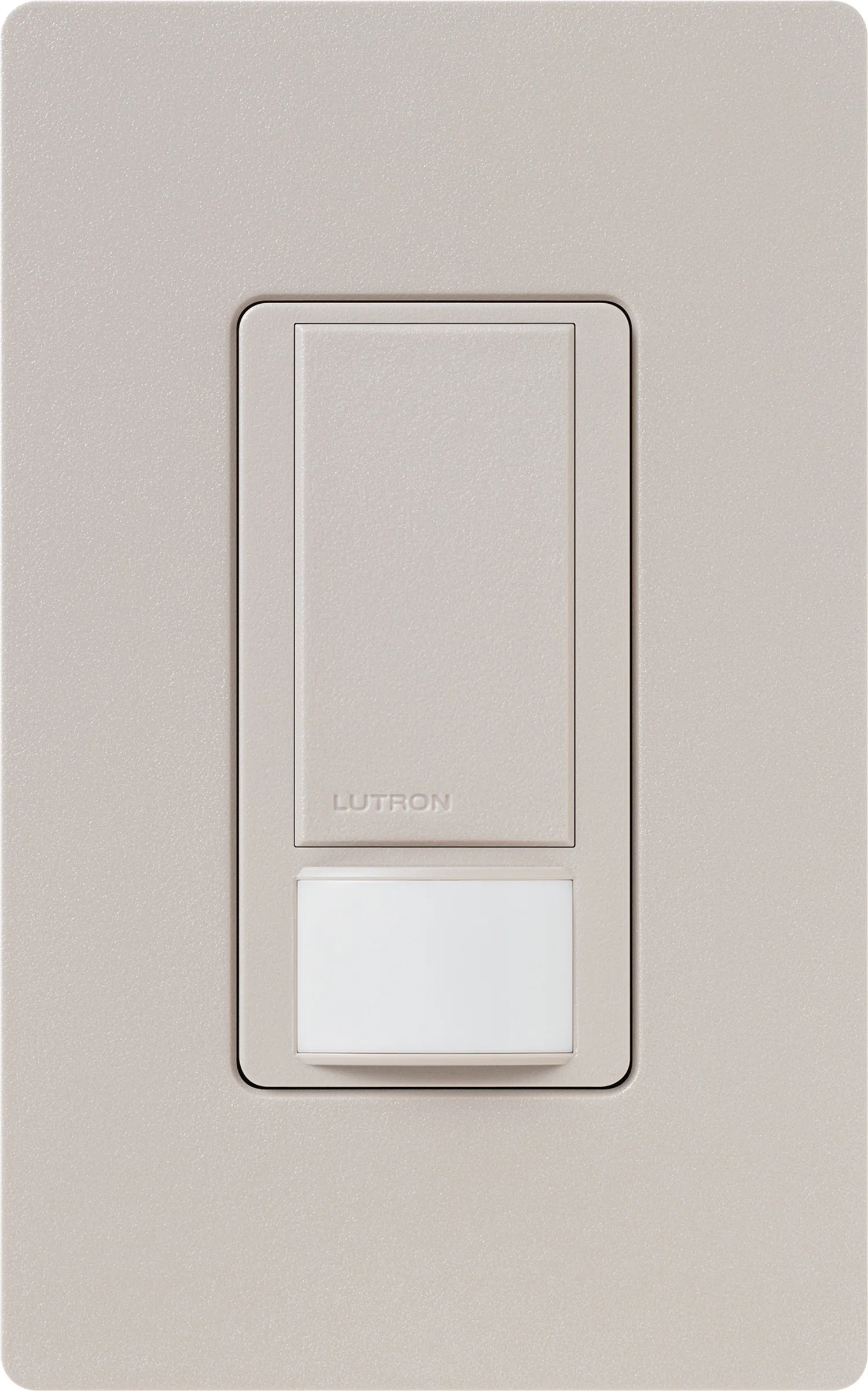

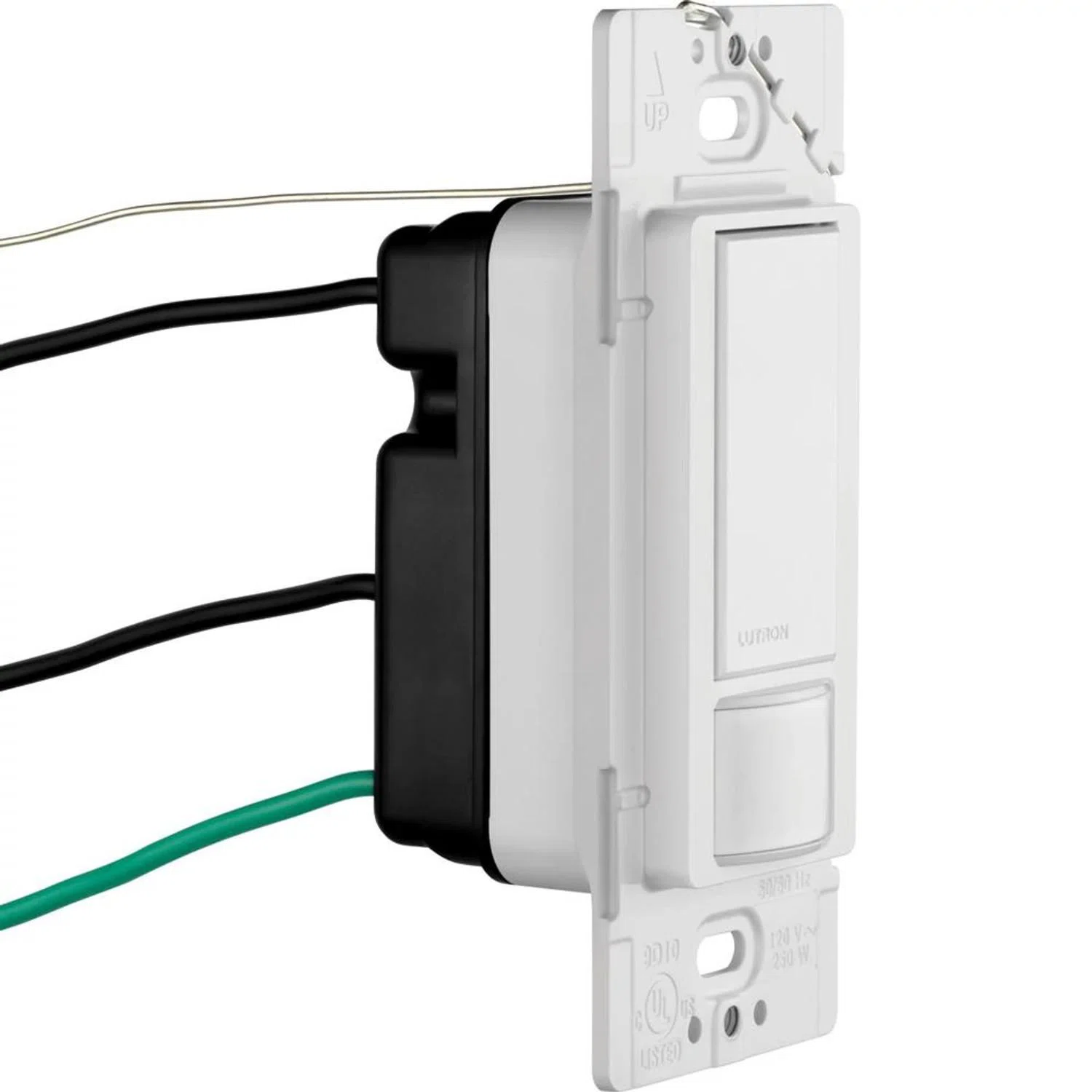

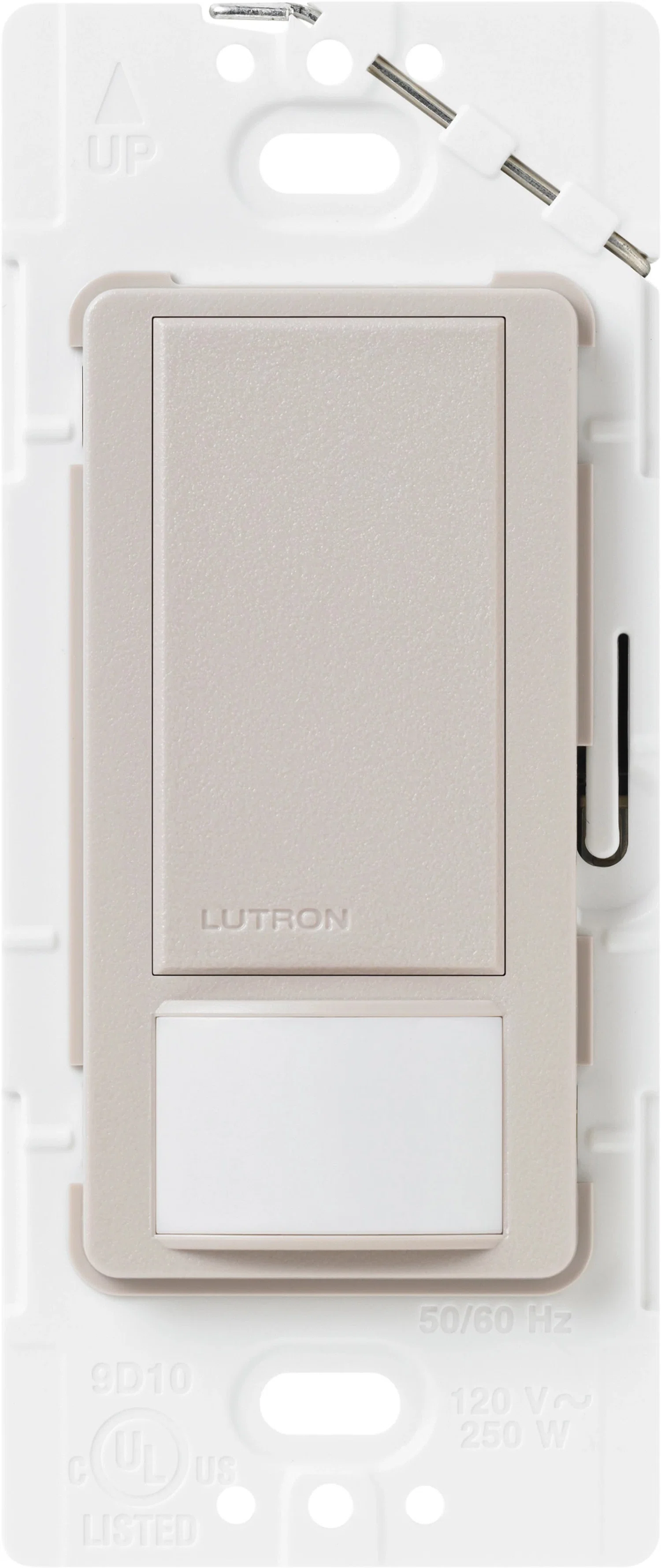

MS-OPS2-TP Ceiling Mount Occupancy Sensor, 120 V
- MFR:
- Lutron Electronics
- MFR #:
- MS-OPS2-TP
- UPC:
- 027557982801
- Item #:
- 328683
MS-OPS2-TP Ceiling Mount Occupancy Sensor, 120 V
- MFR #:
- MS-OPS2-TP
- UPC:
- 027557982801
- Item #:
- 328683
The Lutron Maestro Motion Sensor Switch features Lutron’s advanced motion sensing technology to automatically turn the lights on and off, or manually toggle the lights with the tap switch. The Motion Sensor Switch is rated up to 2A for any lighting type and is single pole only. The passive infrared (PIR) sensor, covered by a tamper resistant lens, detects heat from occupants moving and has a 180-degree field of view (900 sq ft major motion & 400 sq ft minor motion coverage). Equipped with smart ambient light detection (ALD), you can customize your sensor to detect daylight, so lights don't turn on when enough natural light is present in the room. Unlike other manufacturers, Lutron sensors use Cross Correlation Technology (XCT) to also detect fine motion, such as typing at a desk or reading a book – ensuring lights won’t turn off inadvertently when you’re still in the room. Lutron sensors also have an adjustable timeout (1, 5, 15 or 30 minutes) to control how long the lights stay on after leaving the room. Switch the sensor to vacancy mode to meet Title 24 requirements: lights only turn on with a manual press of the tap switch but automatically turn off if the sensor no longer detects motion. The sensitivity of the PIR sensor can also be changed so it only detects larger motion Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Manuals & Documentation
Features
- Single Pole only
- Wire-Lead installation, Ground or Neutral Required
- Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
- 180 deg sensor field of view (900 sq ft major motion and 400 sq ft minor motion coverage), Tamper-resistant lens
| Manufacturer Part Number | MS-OPS2-TP |
| Stripped Manufacturer Part Number | MSOPS2TP |
| Brand | Lutron® |
| Manufacturer | Lutron Electronics |
| UPC | 027557982801 |
| Country Of Origin | CN |
| Amperage Rating | 2 A |
| Color | Taupe |
| Lamp Type | Occupancy Sensor Switch |
| Mounting Type | Wall |
| Temperature Rating | 0 to 40 deg C |
| Voltage Rating | 120 V |
| Alternative Part Number | 11717136 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | Limited |
| Standards Approvals | UL/cUL Listed | NOM |
| Application | Lighting Control |
