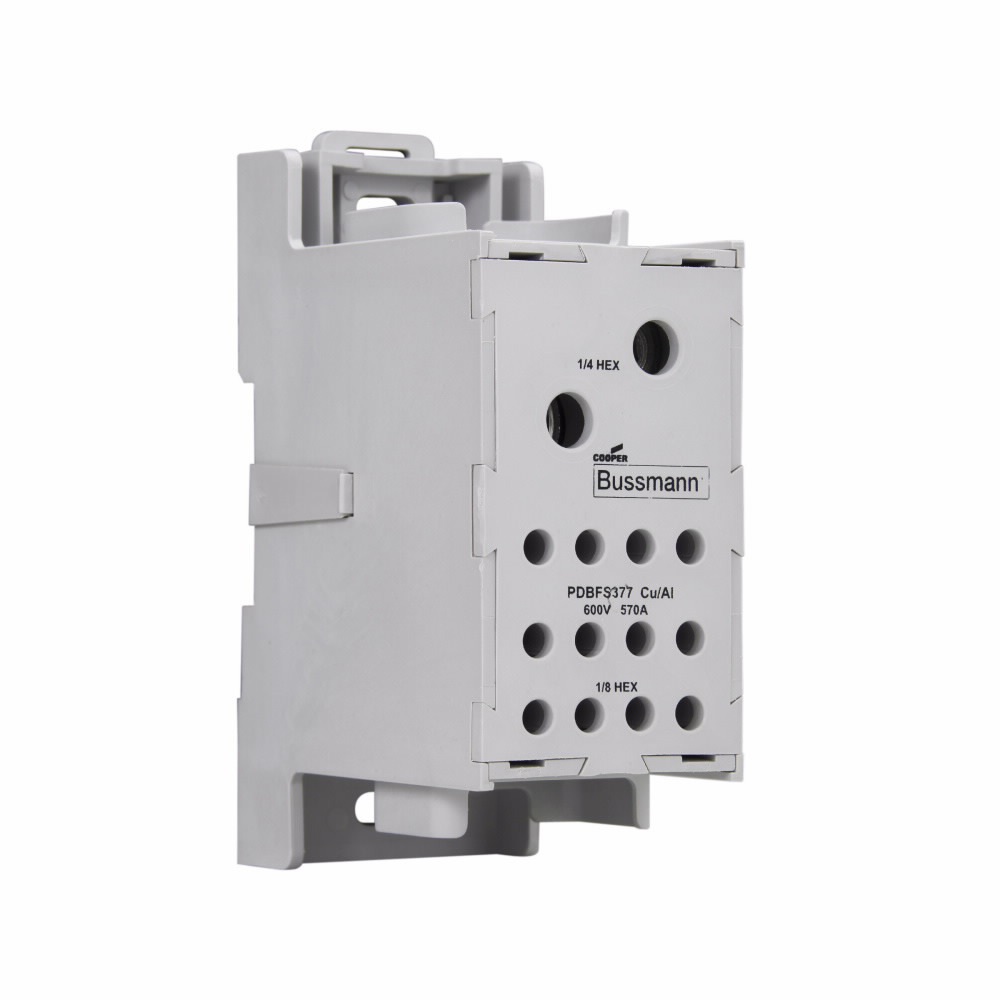

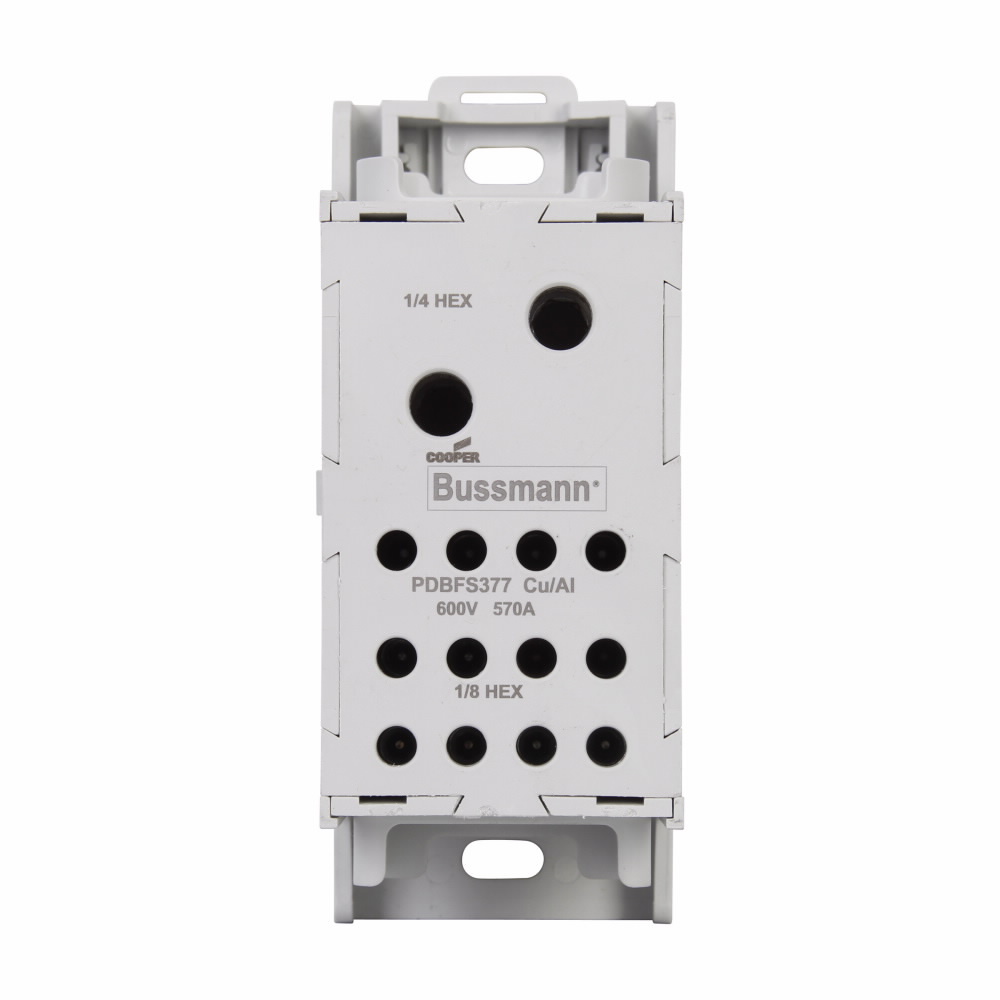

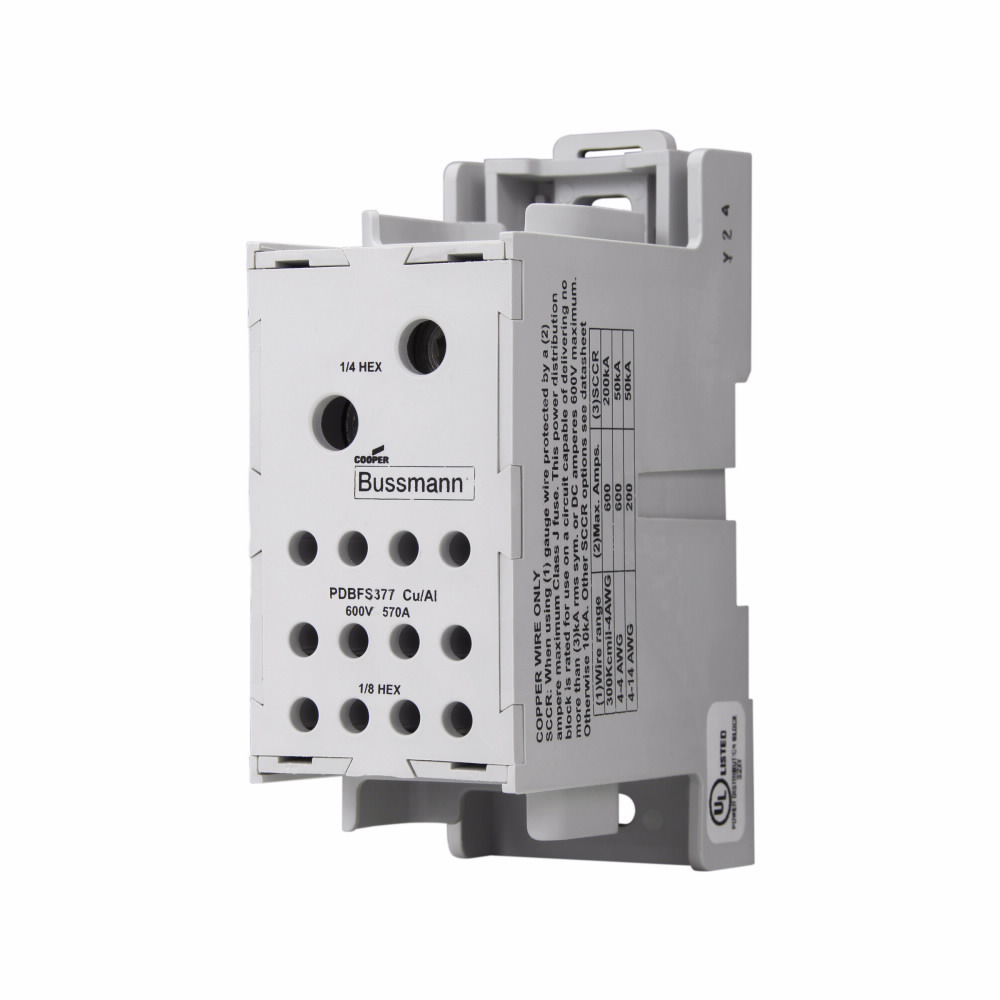

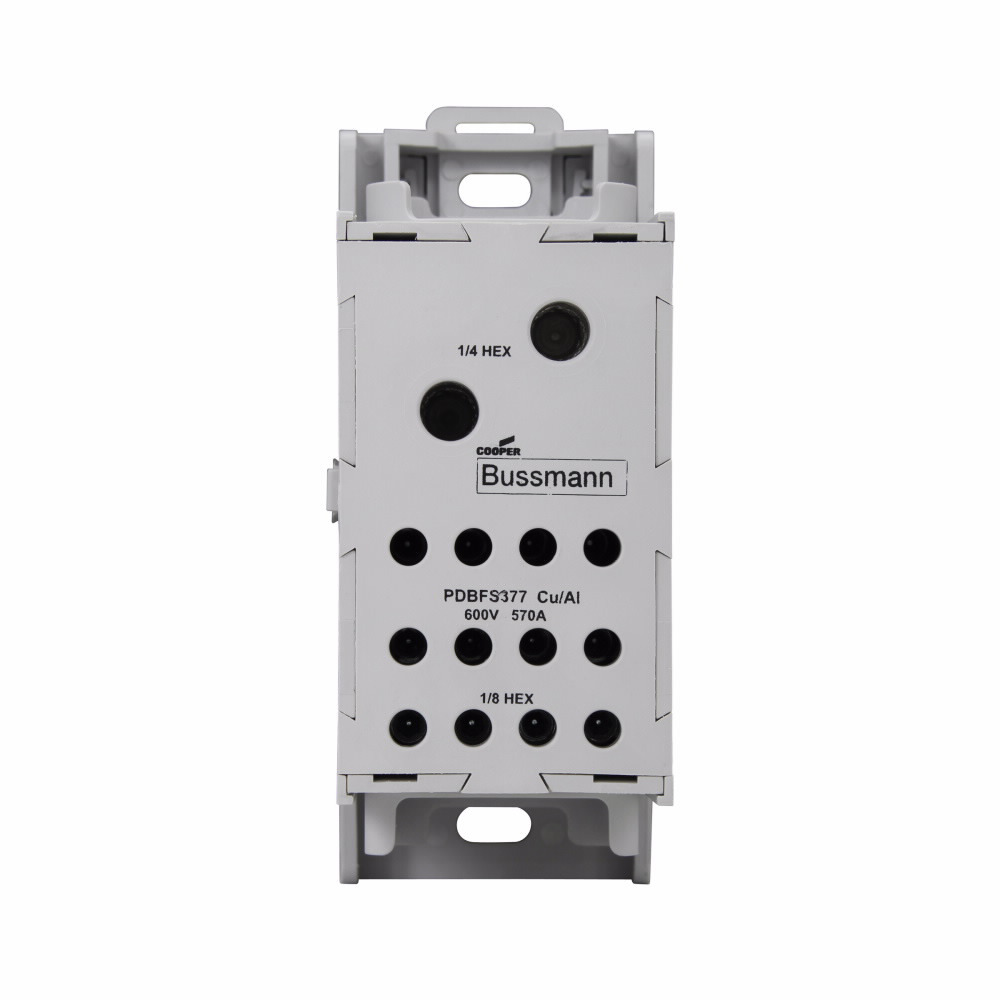

Eaton Bussmann series PDBFS power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 570A, Power distribution block, SCCR: 200 kA (8 To 4 AWG), 100 kA (14 To 4 AWG), DIN rail, panel, Tin-plated aluminum connectors
- MFR:
- Eaton Bussmann
- MFR #:
- PDBFS377
- UPC:
- 051712659901
- Item #:
- 32861
Eaton Bussmann series PDBFS power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 570A, Power distribution block, SCCR: 200 kA (8 To 4 AWG), 100 kA (14 To 4 AWG), DIN rail, panel, Tin-plated aluminum connectors
- MFR #:
- PDBFS377
- UPC:
- 051712659901
- Item #:
- 32861
Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limiters and accessories. With products rated for AC or DC applications to suit your specific application requirements.
Manuals & Documentation
| Catalog Number | PDBFS377 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 570 |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| Material | Tin plated aluminum connectors |
| Mounting | Din Rail |
| Special Features | IP-20 Finger-safe |
| Standard | Contact Manufacturer,RoHS Compliant,Contact factory |
| UPC | 051712659901 |
| GTIN | 00051712659901 |
| Item Type | Power distribution block |
| Weight UOM | Pounds |
| Size | 4.665 In Length X 1.875 In Width X 2.933 In Height |
| Voltage Rating | 600 Vac, 600 Vdc |
