LGA36400U43X I-Line PowerPact 80% Rated L Molded Case Circuit Breaker, 600 V AC, 400 A, 65 kA at 240 V AC/35 kA at 480 V AC/18 kA at 600 V AC Interrupt, 3 Poles, Electronic Trip
- MFR:
- Schneider Electric
- MFR #:
- LGA36400U43X
- UPC:
- 785901702641
- Item #:
- 328471
LGA36400U43X I-Line PowerPact 80% Rated L Molded Case Circuit Breaker, 600 V AC, 400 A, 65 kA at 240 V AC/35 kA at 480 V AC/18 kA at 600 V AC Interrupt, 3 Poles, Electronic Trip
- MFR #:
- LGA36400U43X
- UPC:
- 785901702641
- Item #:
- 328471

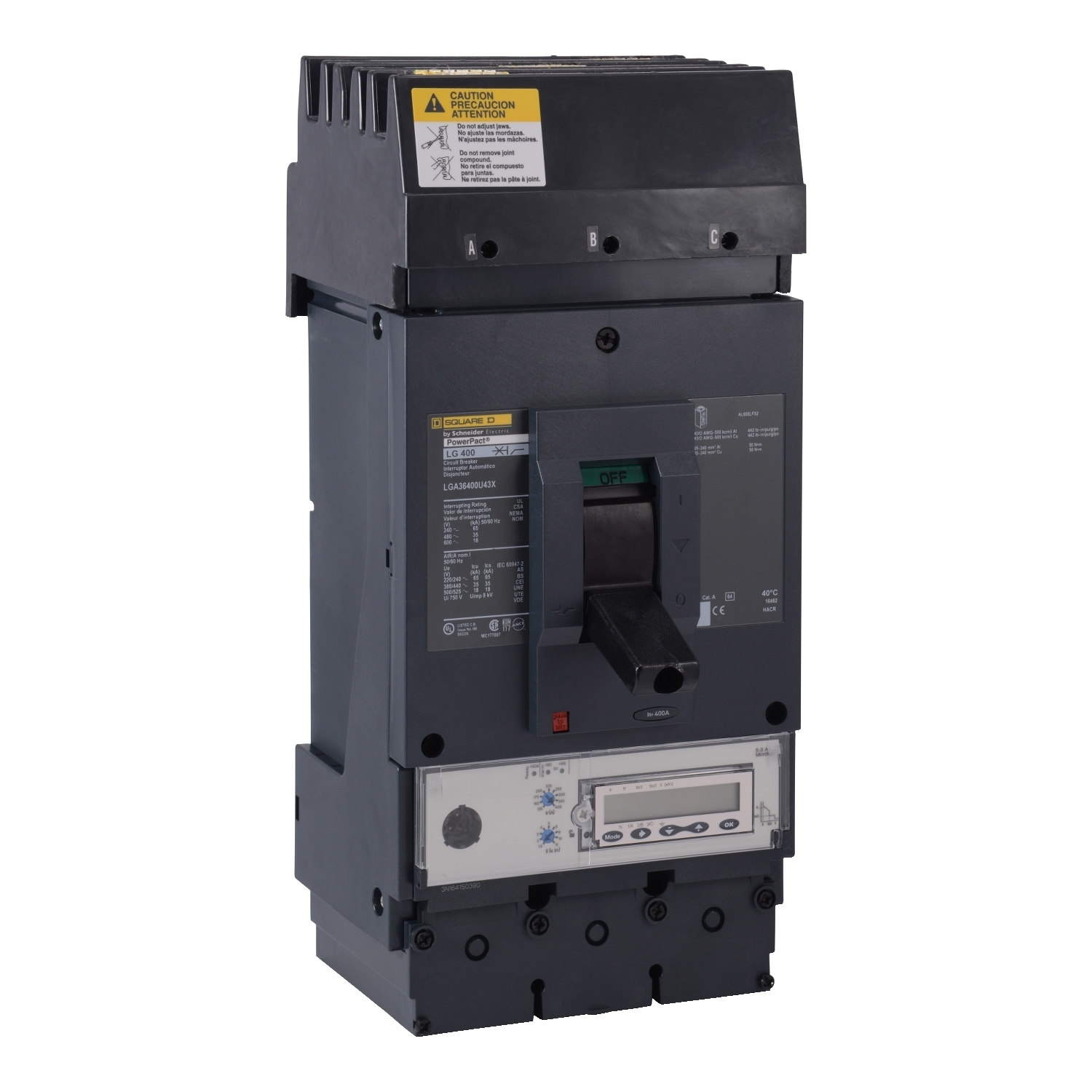

PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker provides MicroLogic Ammeter with a 5.3A trip unit and an LSI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Manuals & Documentation
| Catalog Number | LGA36400U43X |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Color | Black |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980578&lang=en-us |
| UPC | 785901702641 |
| GTIN | 00785901702641 |
