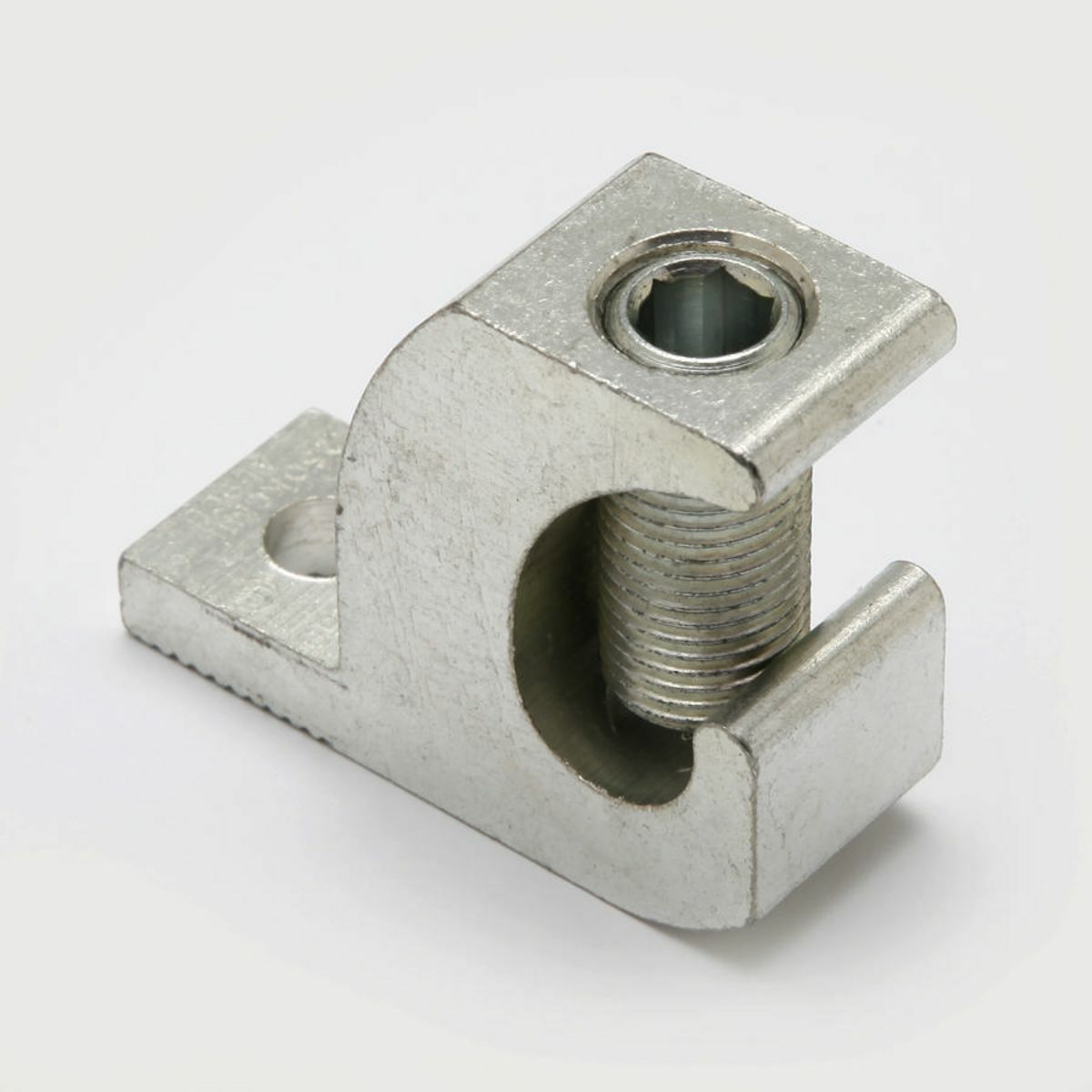

CL501TN Open Faced Direct Burial Lay-In Lug, 14 to 4 AWG Stranded Solid Copper Conductor, #10, 0.22 in Stud, 1 Bolt Holes, Electrolytic Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- CL501TN
- UPC:
- 781810352342
- Item #:
- 328306
CL501TN Open Faced Direct Burial Lay-In Lug, 14 to 4 AWG Stranded Solid Copper Conductor, #10, 0.22 in Stud, 1 Bolt Holes, Electrolytic Copper
- MFR #:
- CL501TN
- UPC:
- 781810352342
- Item #:
- 328306
Manuals & Documentation
| Catalog Number | CL501TN |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | Canada |
| Made in USA | No |
| Application | For Direct Burial Applications In Concrete Or Earth, For Fast Lay-In Of The Conductor Without The Need For Cutting Or Breaking, For Solar Panel Grounding |
| Material | Copper |
| Special Features | Features: The Lay-In QIKLUG Is Manufactured From High Strength Pure Electrolytic Copper To Ensure Maximum Strength And Conductivity, UL467 Listed For Direct Burial In Earth Or Concrete, The Open-Faced Design Allows For Fast Lay-In Of The Conductor Without The Need For Cutting Or Breaking, TN Version Is Tin Plated, Commonly Used For Solar Panel Grounding, Stud/bolt Size: #10, Stud/bolt Hole Size: 0.22 IN, Installation Torque: Yes, Set Screw Type: Slot, Length: 1.13 IN, Height: 0.85 IN, Tongue Width : 0.38 IN |
| Standard | UL467 |
| UPC | 781810352342 |
| GTIN | 00781810352342 |
| Item Type | Open-Faced |
| Cross Reference Products | GBL-4DBT |
