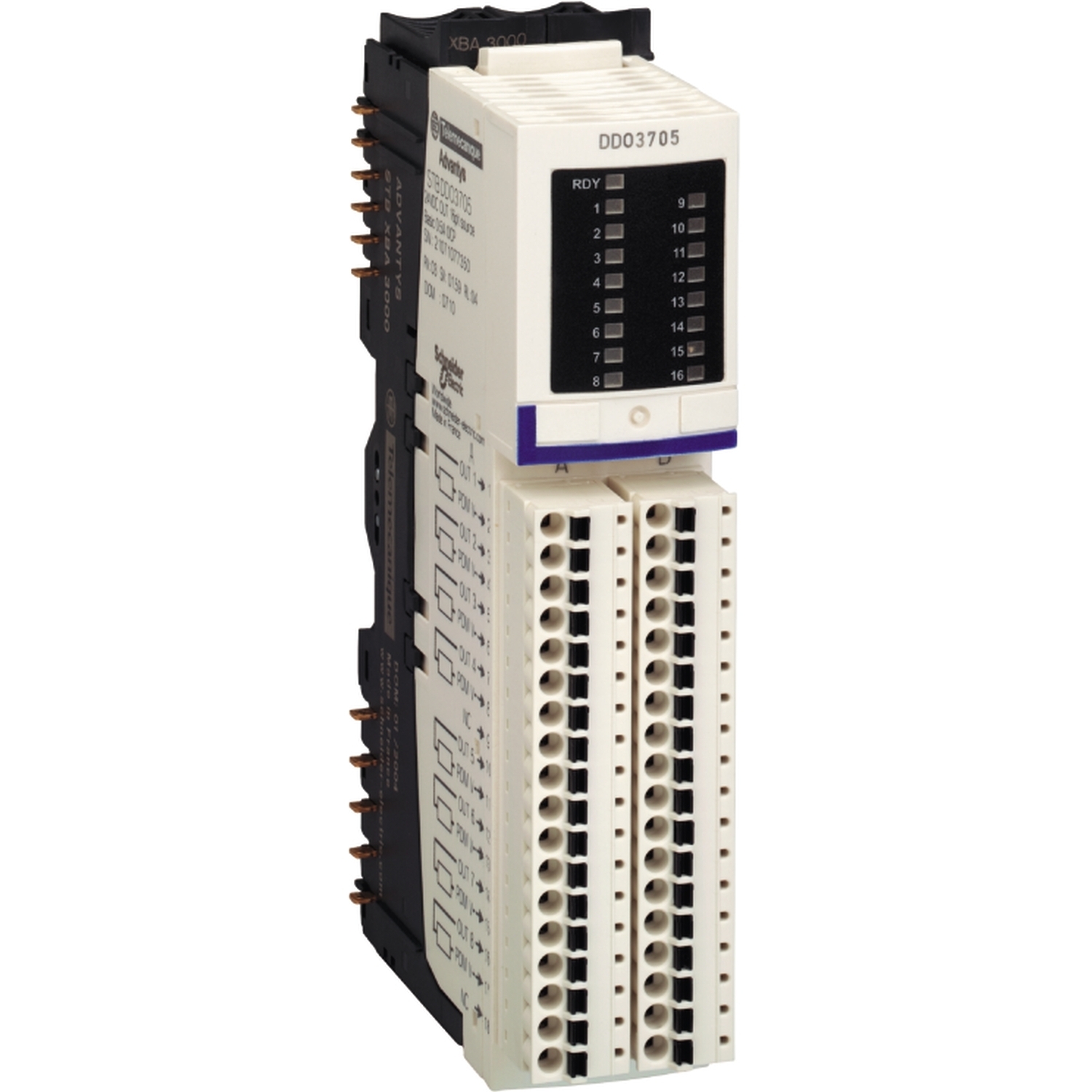

This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete output kit has 16 discrete outputs with solid state output. It is a discrete output kit with a rated supply voltage of 24V DC and a current consumption of 135mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with power distribution module STBPDT3100/3105 and I/O base STBXBA3000. The kit includes STBDDO3705 module, STBXBA3000 base and STBXTS1180, 18-terminal screw type connector. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
