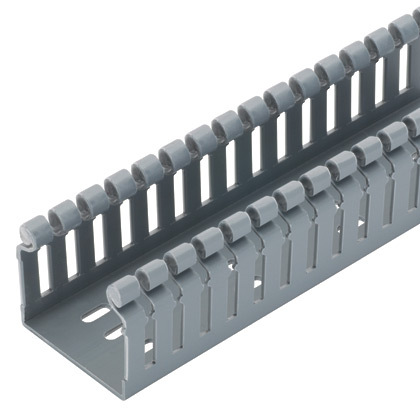

The H2X4LG6 PVC Hinged-Cover Wide Slot Wiring Duct features a hinged cover and wide finger/slot design that provides greater rigidity and allows for use with a range of wire/bundle sizes. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with UL recognized continuous-use temperature up to 122F (50C). Mounting holes provided. Lead-Free PVC. 4.1 x 2.17 (104.1 mm x 55.1 mm) and 6' (1.83 m) long. Cover sold separately. Light Gray. 6 per package.
Manuals & Documentation
| Catalog Number | H2X4LG6 |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Hinged Cover Wide Slot Wiring Duct provides wire management in general purpose applications where it is beneficial to retain cover during wire changes |
| Color | Light Gray |
| Connection | Mounting Holes |
| Material | PVC |
| Slot Pitch | 0.31 IN |
| Slot Style | Slotted |
| Special Features | Hinged Cover |
| Standard | RoHS Compliant; cURus Recognized; CE Compliant; CSA Approved |
| UPC | 074983582396 |
| GTIN | 00074983582396 |
| Item Type | Base Wiring Duct |
| Width | 2.17 |
| Width UOM | Inch |
| Size | 2.00 x 4.00 |
| Thickness | 0.1 IN |
