Square D

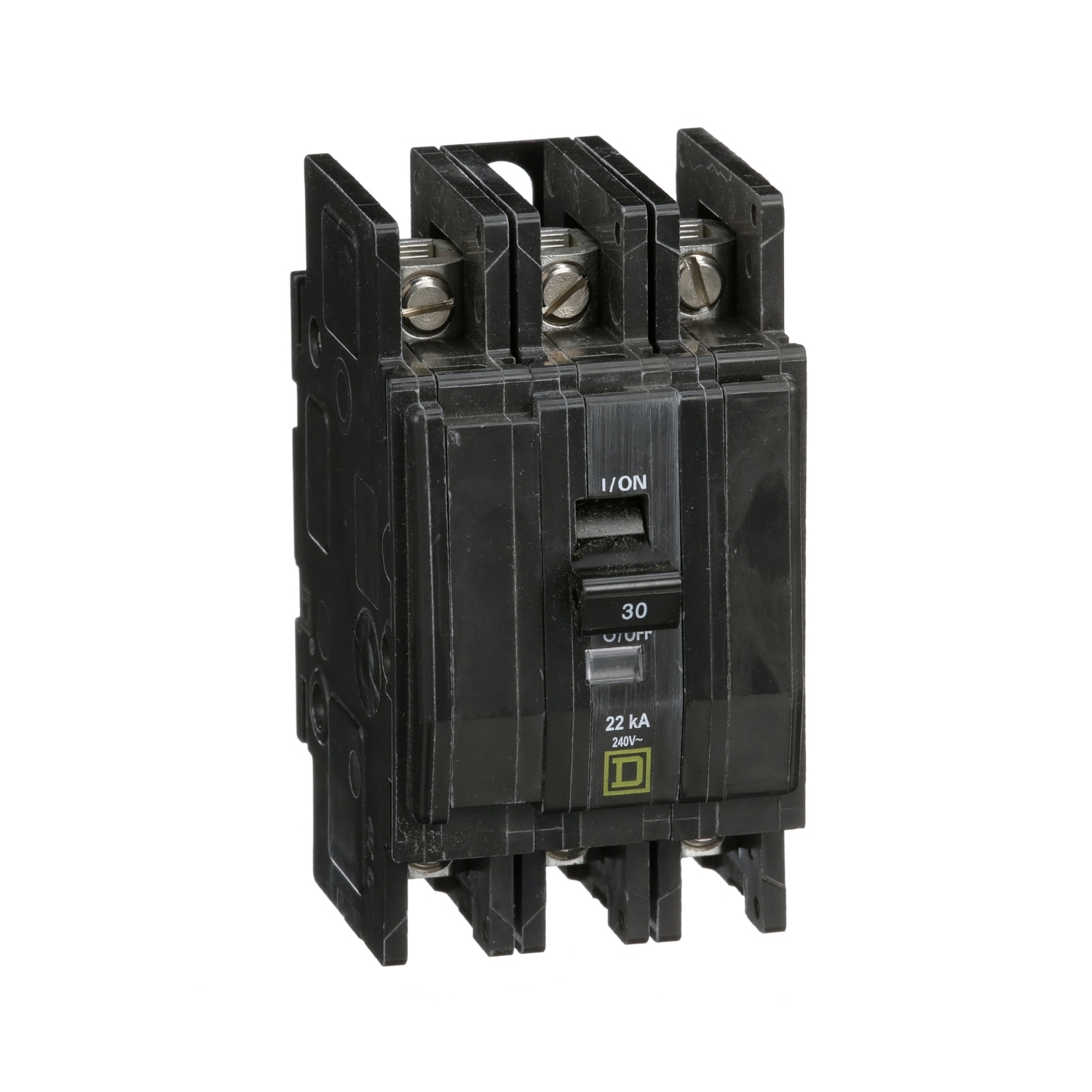

QOU330VH Miniature Circuit Breaker, 30 Amp, 3 Pole, 120/240V

MFR:
Schneider Electric
MFR #:
QOU330VH
UPC:
785901560067
Item #:
326924

QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA. A range of accessories can be found for these breakers with their product range and are versatitle in their mounting. [Delete]

Manuals & Documentation
Catalog Number QOU330VH
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application HACR rated
Connection Slotted box lugs, line side;slotted box lugs, load side;AWG 14...AWG 2 aluminium/copper
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402835&lang=en-us
UPC 785901560067
GTIN 00785901560067
Item Type Miniature circuit-breaker
Width 2.250000000000000
Width UOM Inch
Height 4.050000000000000
Height UOM Inch
Depth 2.95 IN
Voltage Rating 120/240 V AC
