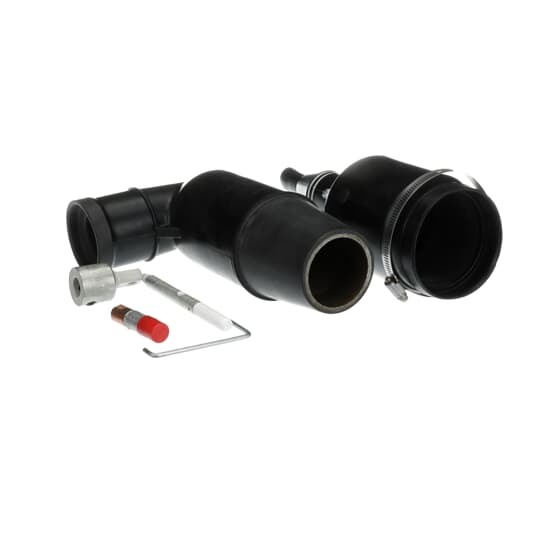

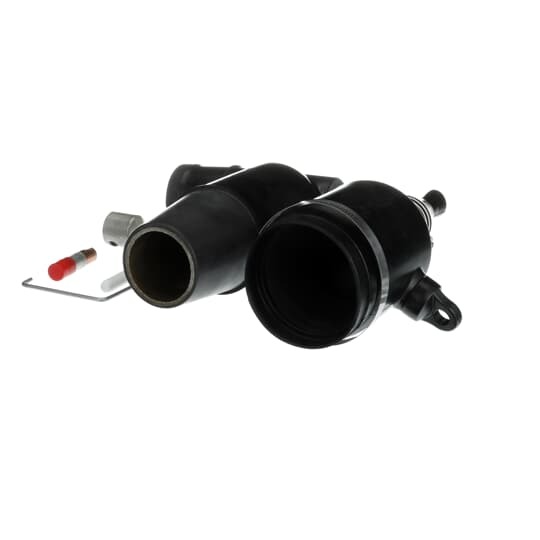

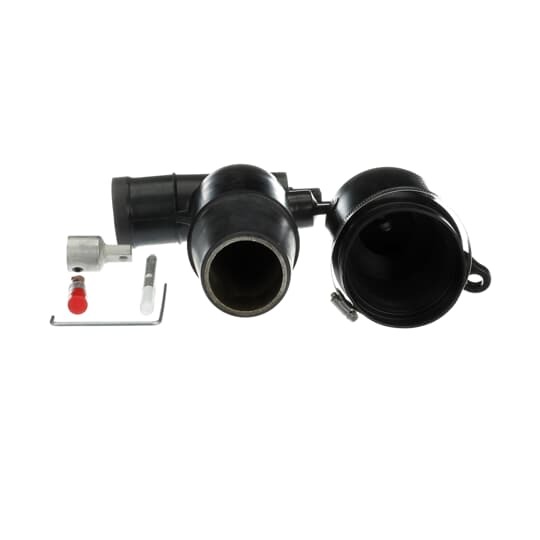

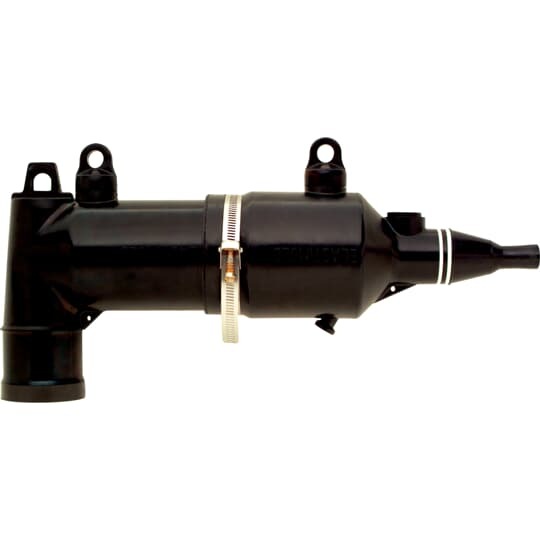

168FLR1-B0220 Elastimold Loadbreak Fused Elbow Connector With Test Point, 8.3 kV, 200 A, 2 AWG Stranded, 1 AWG Solid Conductor, 0.635 to 0.905 in Dia Insulation, EPDM Rubber
- MFR:
- ABB - Installation Products
- MFR #:
- 168FLR1-B0220
- UPC:
- 783786460878
- Item #:
- 324900
168FLR1-B0220 Elastimold Loadbreak Fused Elbow Connector With Test Point, 8.3 kV, 200 A, 2 AWG Stranded, 1 AWG Solid Conductor, 0.635 to 0.905 in Dia Insulation, EPDM Rubber
- MFR #:
- 168FLR1-B0220
- UPC:
- 783786460878
- Item #:
- 324900
Manuals & Documentation
| Catalog Number | 168FLR1-B0220 |
| Manufacturer | ABB - Installation Products |
| Brand | Elastimold |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 200 |
| Application | Protect Light Duty Underground Distribution Systems |
| Color | Black |
| Conductor Range | #2 STR/COMPR AWG , #1 SOL/COMPT AWG |
| Insulation | Yes, EPDM Rubber |
| Material | EPDM Rubber |
| Special Features | Full-Range Current-Limiting Fusing with 50kA Interrupting Capability. Hotstick Operable 15kV Loadbreak Elbow Switching |
| Standard | IEEE 386, ANSI C37.40, ANSI C37.41, ANSI C37.47 |
| UPC | 783786460878 |
| GTIN | 00783786460878 |
| Item Type | Loadbreak Fused Elbow Connector |
| Size | Length 16.87 inches from bottom to center of Bushing |
| Temperature Rating | -40 to +65 C |
| Voltage Rating | 8.3 kV |
