Appleton

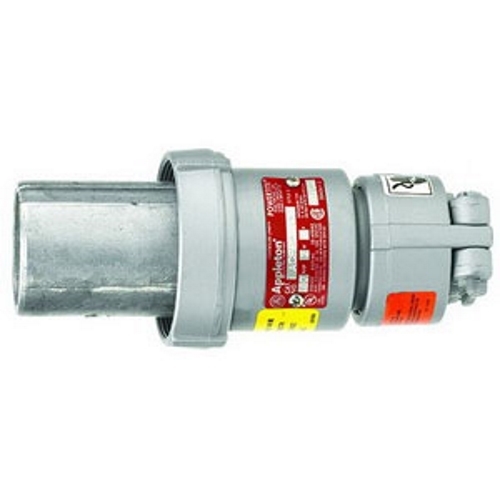

Powertite; Shell and Extra Pole Only Grounding Style 2 Clamping Ring Plug; 60 Amp, 600 Volt AC at 50 - 400 Hz/250 Volt DC, 4-Pole, 3-Wire, 3 Phase, Pressure Wire Terminal

MFR:
Appleton Electric
MFR #:
ACP6034BC
UPC:
781381440226
Item #:
32447

Powertite Grounding Style 2 Metallic Clamping Ring Plug, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex), Amperage Rating: 60 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3

Manuals & Documentation
Catalog Number ACP6034BC
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 60
Application For ADR6034 Receptacle And ARC6034BC Connector Body
Connection Pressure Wire Terminal
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
NEMA Rating 3, 3R, 4, 4X
Number of Poles 4
Number of Wires 3
Phase 3
Special Features Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Locking screw and slot prevents plug cable collar from backing off; Wire recess diameter: 5/16 IN; Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle
Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
UPC 781381440226
GTIN 00781381440226
Item Type Grounding Style 2 Metallic Clamping Ring Plug
Environmental Conditions Temperature Rating: -40 To 107 DEG C
Voltage Rating 600 VAC At 50 - 400 HZ, 250 VDC
Wire Size 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex)
