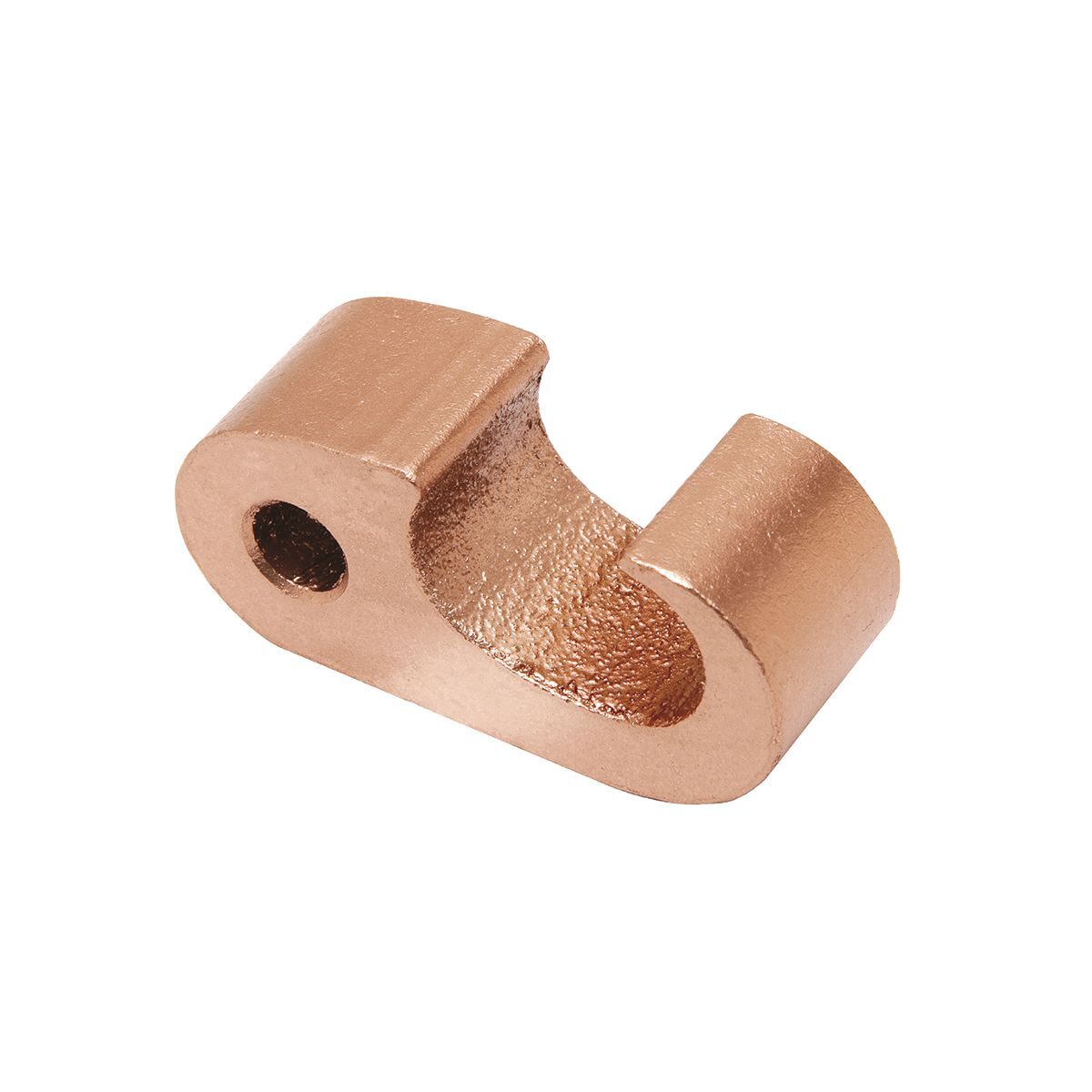

YGHP2C2 Type YGHP-C Mechanical Compression Ground Tap Connector, Figure 6 Shape, 6 to 2 AWG Main/Run, 6 to 2 AWG Tap, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YGHP2C2
- UPC:
- 781810220917
- Item #:
- 32445
YGHP2C2 Type YGHP-C Mechanical Compression Ground Tap Connector, Figure 6 Shape, 6 to 2 AWG Main/Run, 6 to 2 AWG Tap, Copper
- MFR #:
- YGHP2C2
- UPC:
- 781810220917
- Item #:
- 32445
Manuals & Documentation
| Catalog Number | YGHP2C2 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Direct Burial In Earth And Concrete |
| Material | Copper |
| Special Features | Features: Irreversible Compression Ground Tap Figure 6 Can Be Used As A Tap Connector Or As A Tap Splice Connector, Four Die Sets And Eight Connectors Can Accommodate A Conductor Range From #8 AWG Solid Through 500 KCMIL Plus 1/2 , 5/8 And 3/4 IN Copper Bonded Ground Rods, UL467 Listed, Acceptable For Direct Burial In Earth And Concrete, Prefilled With PENETROX Compound And Strip Sealed, Die Index: O Element A, Tools, Die Set Catalog Number, And (number Of Crimps): HYPRESS: Y35, Y39, Y750 Tool, U0 Die, (1), Y45 Tool, U0 Die With PT6515 Adapter, (1), Y46 Tool, U0 Die With PUADP-1 Adapter, (1), PAT750-18V Tool, U0 Die, (1), Conductor Type: Run: Commercial Stranded Copper, Tap: Commercial Stranded Copper, Shape: 6, Conductor Size (tap Range): 6 - 2 AWG, Conductor Size (run - Range): 6 - 2 AWG |
| Standard | Direct Burial |
| UPC | 781810220917 |
| GTIN | 00781810220917 |
| Item Type | Taps |
