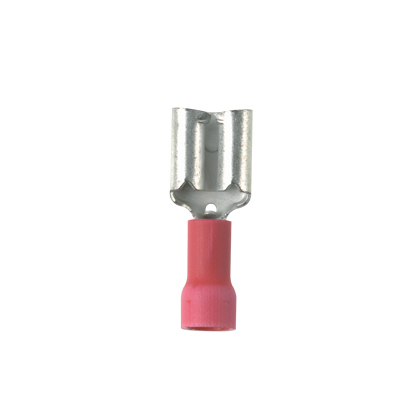

DV18-250B-MY Pan-Term Type DV-B Loose Piece Vibration-Resistant Female Disconnect, 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Red, Barrel Insulated
- MFR:
- Panduit
- MFR #:
- DV18-250B-MY
- UPC:
- 074983409204
- Item #:
- 32362
DV18-250B-MY Pan-Term Type DV-B Loose Piece Vibration-Resistant Female Disconnect, 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Red, Barrel Insulated
- MFR #:
- DV18-250B-MY
- UPC:
- 074983409204
- Item #:
- 32362
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm). It is 0.81 (20.6 mm) long and 0.29 (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.
Manuals & Documentation
| Catalog Number | DV18-250B-MY |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Red |
| Connection | Funnel Entry |
| Finish | Tin-Plated |
| Insulation | Vinyl |
| Material | Brass |
| Standard | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| UPC | 074983409204 |
| GTIN | 00074983409204 |
| Item Type | Disconnect |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #18 AWG |
| Cross Reference Products | 3M B-29-1101|3M MVU18-250DFK|ABBInstall KV18-250FD-M|ABBInstall RA257-170|ABBInstall V18-250FD|ABBInstall WCTR-187-2-D|GCWaldom N-5629-SP|GCWaldom ST-2727-SP|Ideal 83-9571|Morris 10314 |
