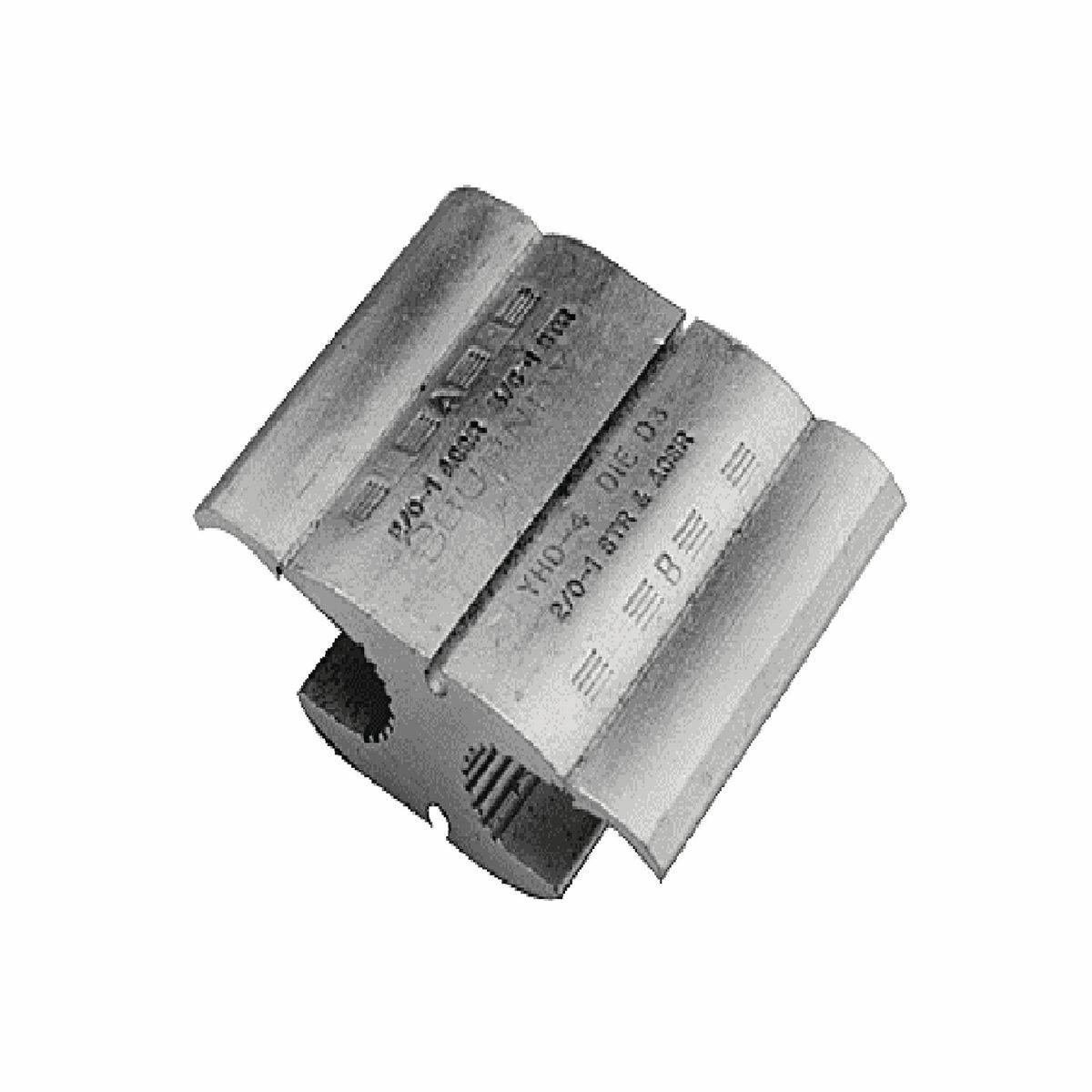

YHD6 Type YHD Compression Line Tap Connector, Figure H Shape, 3/0 to 300 kcmil Main/Run, 1 to 3/0 AWG Tap, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YHD6
- UPC:
- 781810139134
- Item #:
- 320079
YHD6 Type YHD Compression Line Tap Connector, Figure H Shape, 3/0 to 300 kcmil Main/Run, 1 to 3/0 AWG Tap, Aluminum
- MFR #:
- YHD6
- UPC:
- 781810139134
- Item #:
- 320079
Manuals & Documentation
| Catalog Number | YHD6 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Accommodate Combinations Of Aluminum To Copper, And Aluminum To Aluminum Conductors |
| Material | Aluminum |
| Special Features | Features: LOKTAP Compression Connectors Are High Quality, Range-Taking Devices Which Accommodate Combinations Of Aluminum To Copper, And Aluminum To Aluminum Conductors, Burndy Seven Connector Program Accommodates A Conductor Range From 6 AWG Solid To 4/0 ACSR, In Addition, LOKTAP Products Feature A C Groove On Both Sides Of The Connector For Use In Street Lighting Applications From 14 AWG Solid To 10 AWG Solid, LOKTAP Connectors Are Designed To Be Installed With Burndy Mechanical Or Hydraulic Tools And Matching O And D3 Die Set, Cable Diameter Range (tap): 0.332 - 0.419 IN, Cable Diameter Range (run): 0.461 - 0.563 IN, Die Index: D3 Element A, Conductor Type: Run: ACSR, ACSR Compact, Aluminum Compact, Copper Compact, Aluminum Solid, Copper Solid, Aluminum Stranded, Copper Stranded, Tap: ACSR Compact, ACSR, Aluminum Compact, Copper Compact, Aluminum Solid, Copper Solid, Aluminum Stranded, Copper Stranded, Conductor Size (run - Range): 3/0 AWG - 300 KCMIL, Shape: H, Conductor Size (tap Range): 1 - 3/0 AWG |
| UPC | 781810139134 |
| GTIN | 00781810139134 |
| Item Type | YHD |
| Cross Reference Products | WR399, WR389, WR369 |
