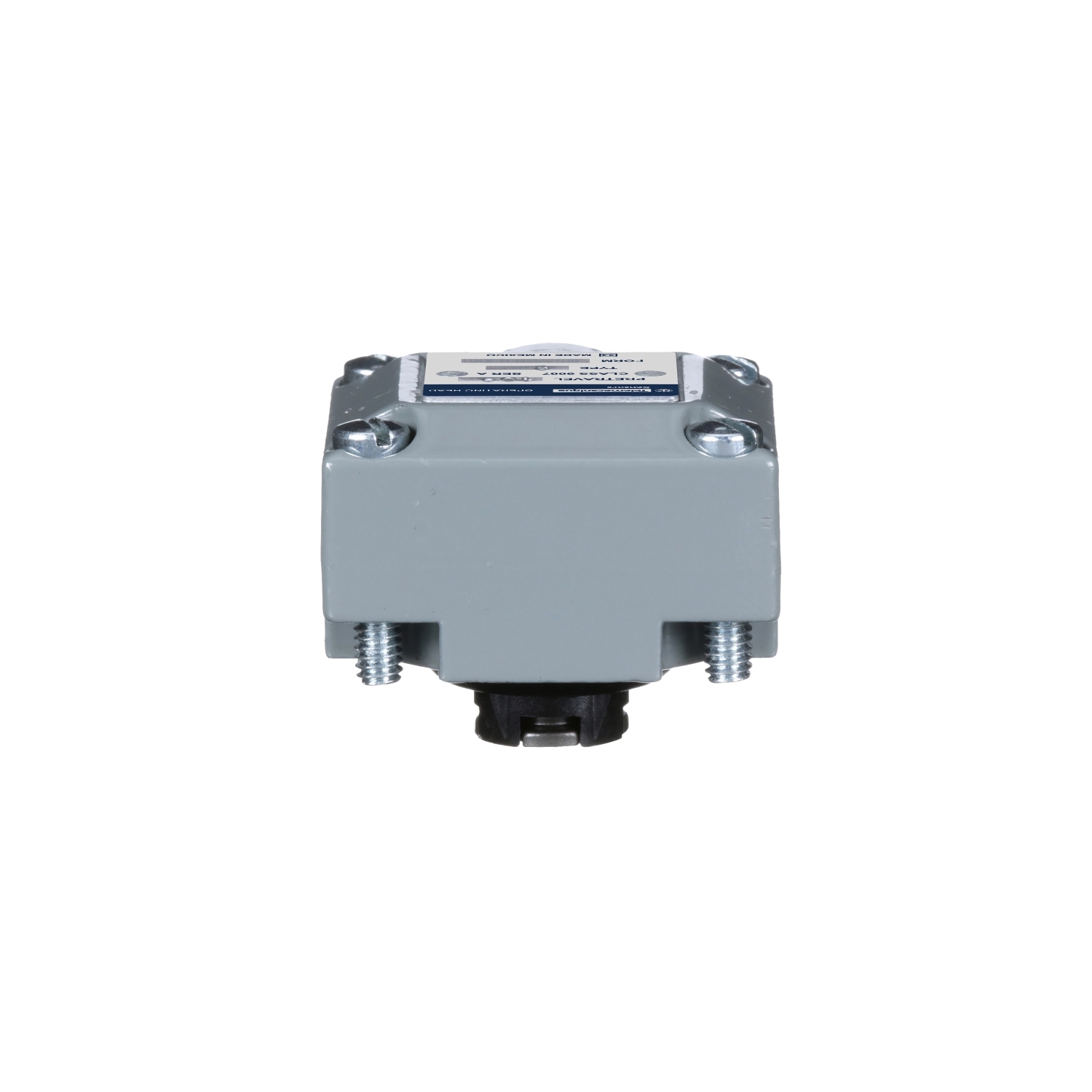

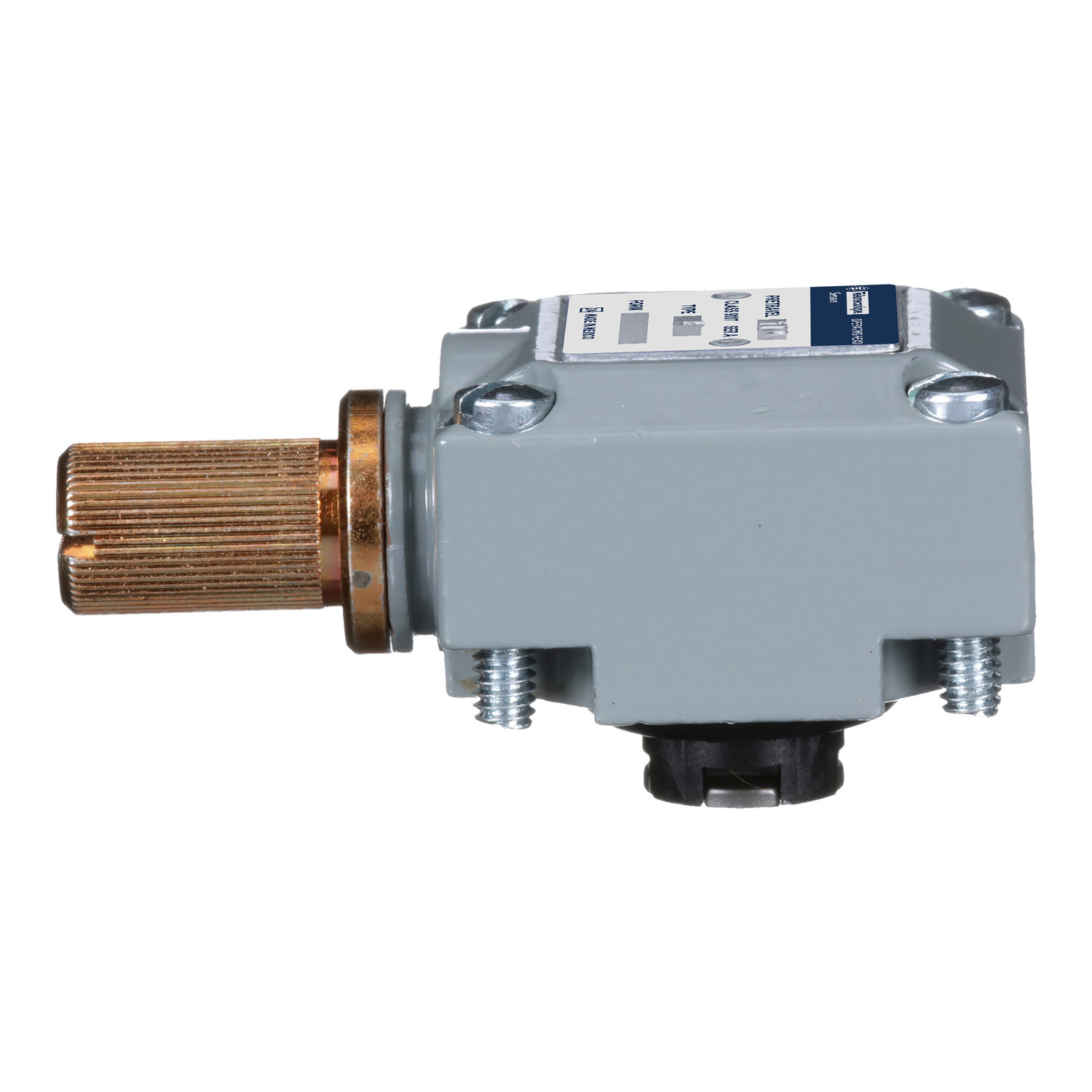

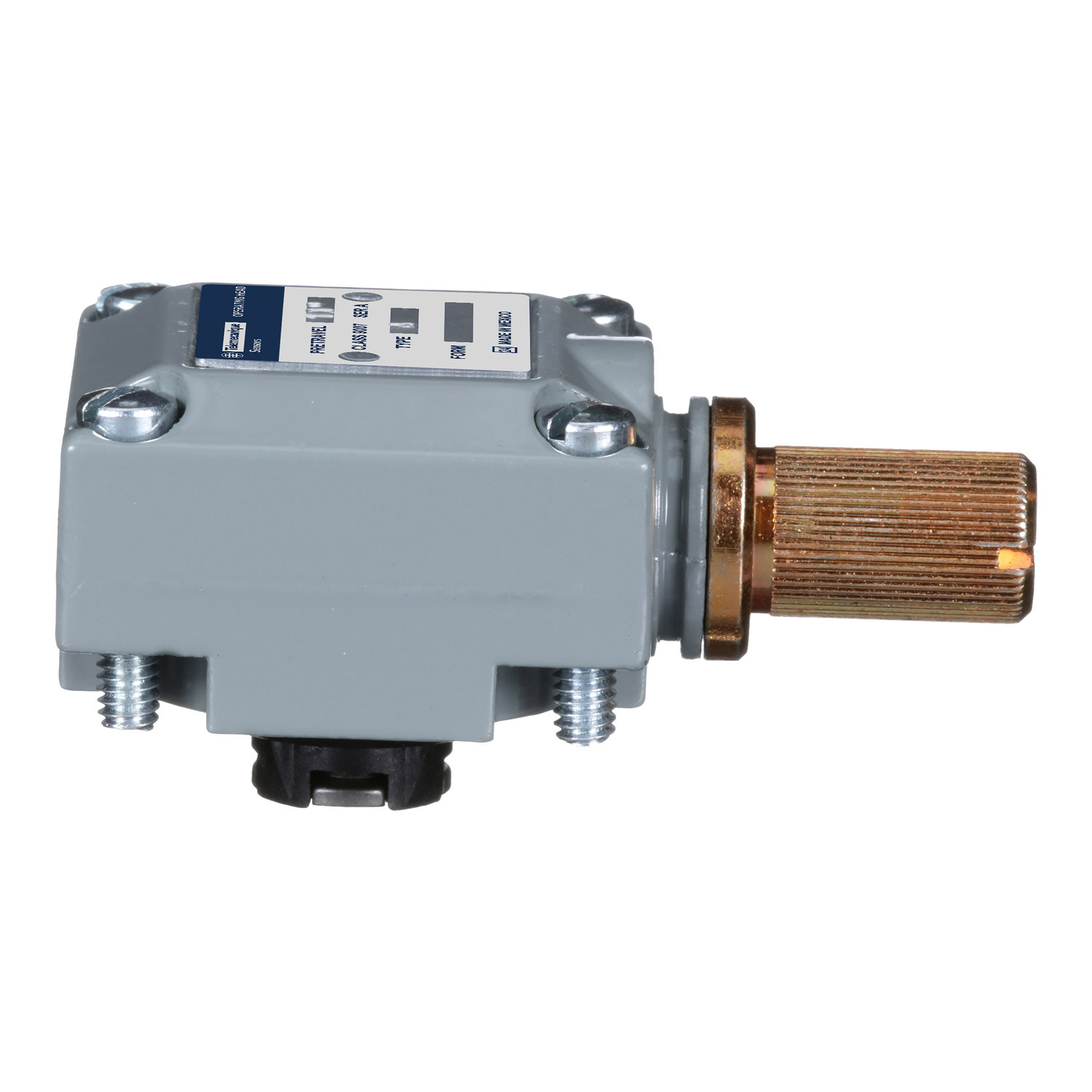

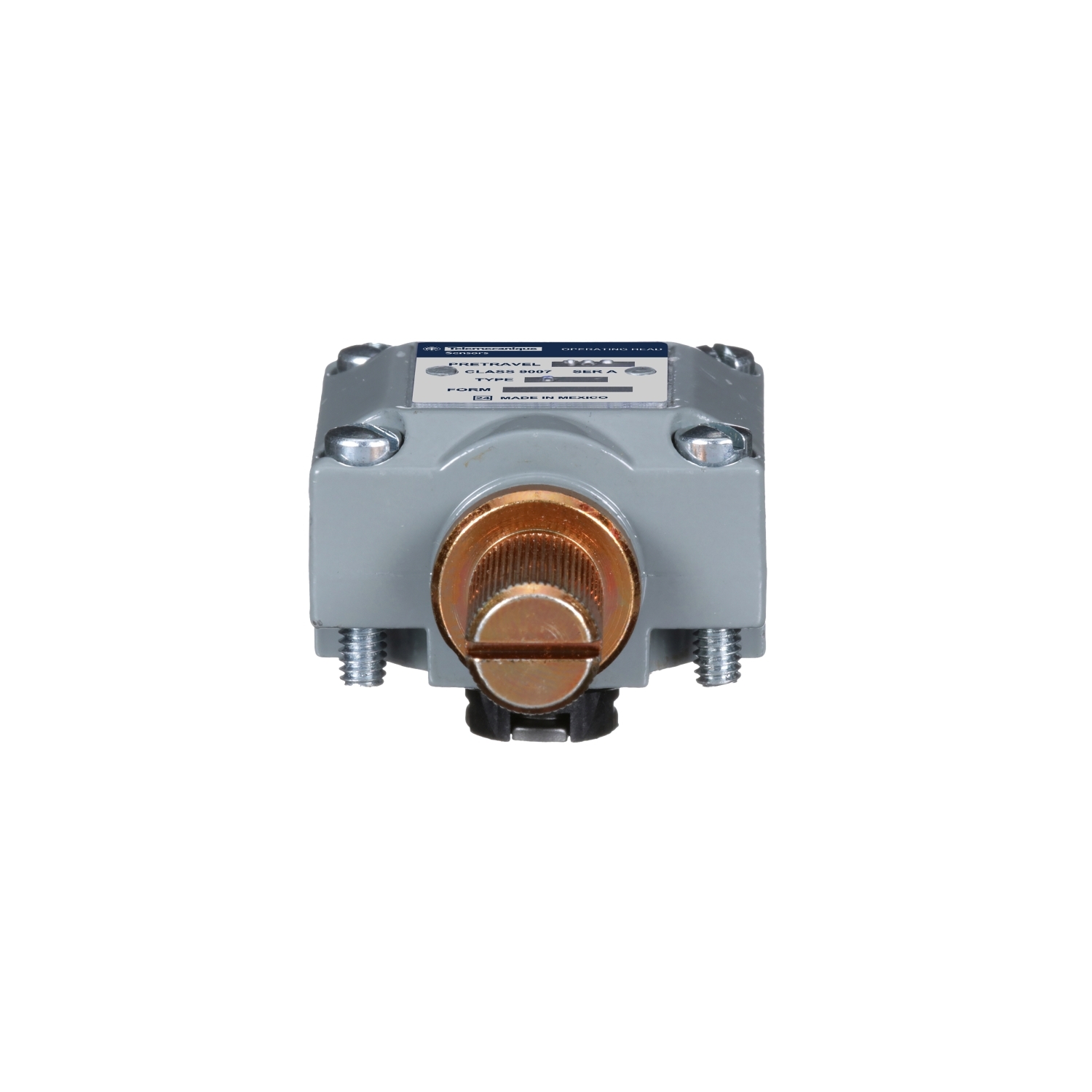

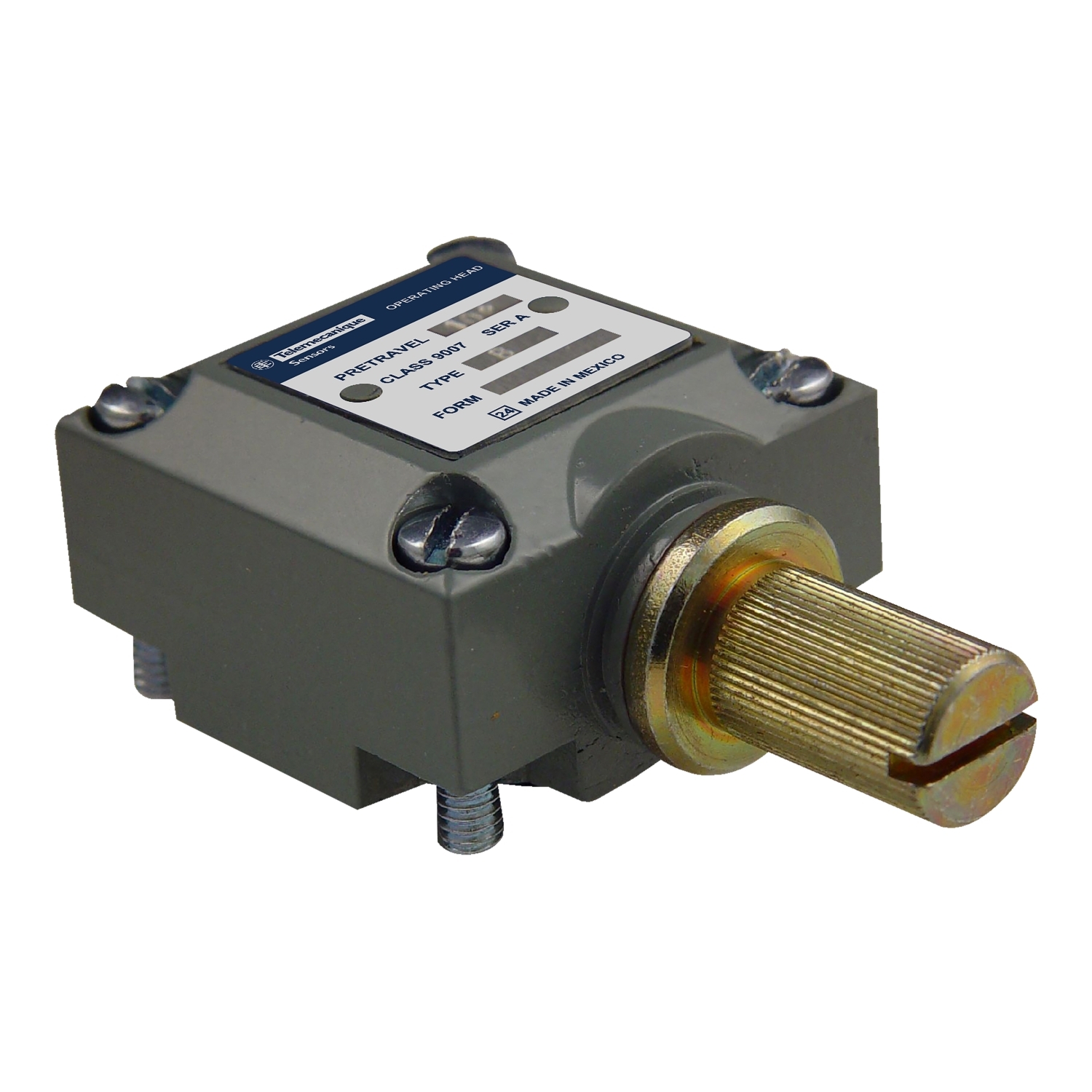

limit switch head, 9007C, rotary lever arm, standard pretravel, spring return, clockwise only operation, NEMA 4 and 13

MFR:
Telemecanique Sensors
MFR #:
9007B
UPC:
785901500872
Item #:
31945

9007C NEMA heavy duty industrial limit switches are designed to meet many domestic and international standards. The metal body of these limit switches can withstand the impact of heavy industry. This modular limit switch line has five bodies types, 20 different heads and more than 200 lever arms. The 9007C limit switches are UL Listed and CSA certified. 9007C limit switches can be used in material working, packaging, material handling, conveying, food and beverage, mining and mineral, construction, oil and gas, and crane and hoist applications. This limit switch rotary head is made of metal. It weighs 0.19kg. It is compatible with 9007C heavy duty industrial limit switch lever and body. Compact and standard limit switch for hazardous locations. Compliant with US and international standards, the 9007 series limit switches can withstand the impact of heavy industry.

Manuals & Documentation
Catalog Number 9007B
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Lateral approach, 1 or 2 programmable direction;CW and CCW;from left and right
Actuator Spring return without operating lever zinc CW & CCW programmable
Application 9007C
Standard UL LISTED FILE NUMBER E42259 CCN NKCR - CSA CERTIFIED FILE NUMBER LR25490 CLASS 3211-03 - CE MARKED
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=373609&lang=en-us
UPC 785901500872
GTIN 03389119057585
Item Type Limit switch head
Environmental Conditions STANDARD ENVIRONMENT
Operating Temperature -20-185 A Degrees F
