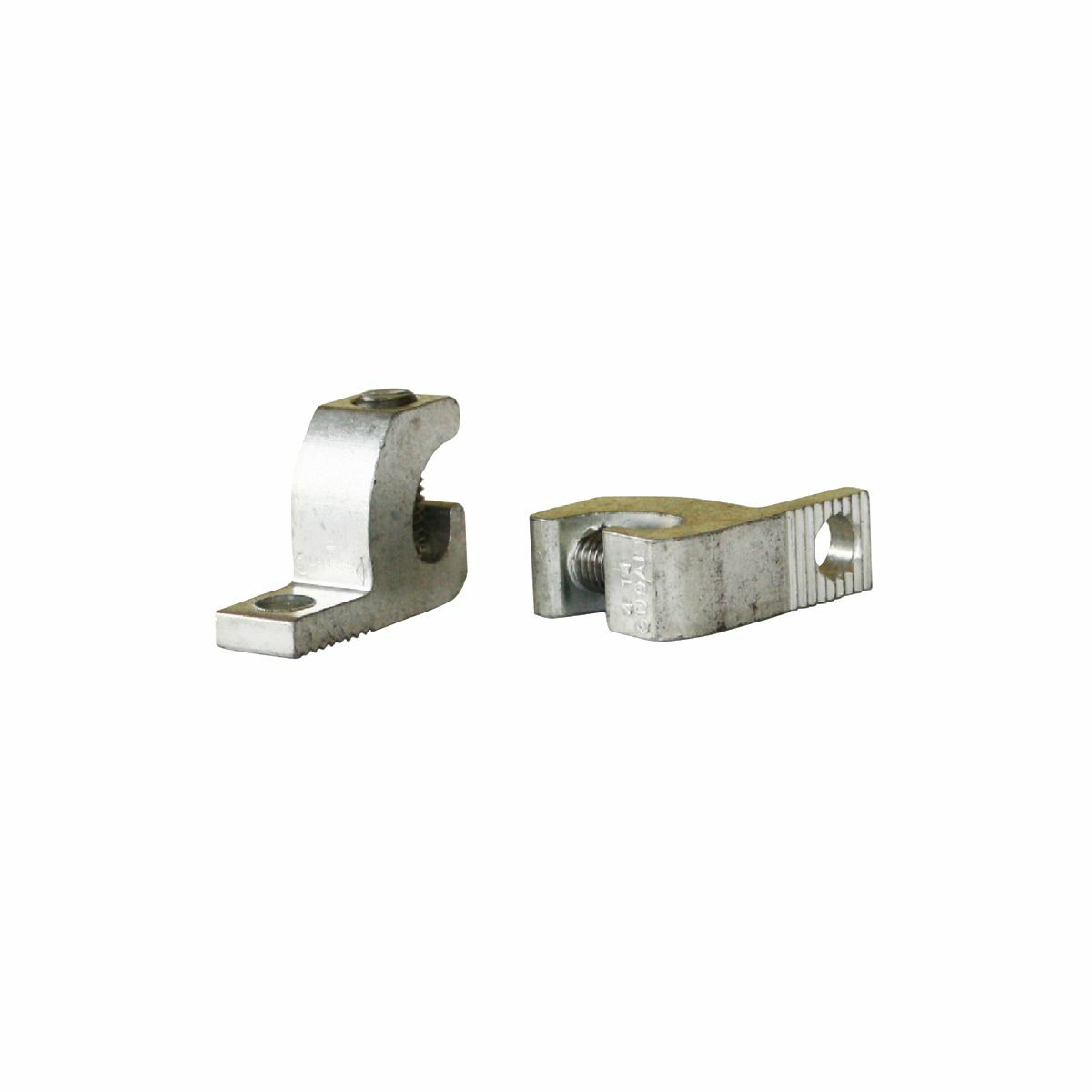

BGBL1/0 Lay-In Mechanical Connector Lug, 14 to 1/0 AWG Solid/Stranded Aluminum/Copper Conductor, 3/8 in Stud, 1 Bolt Holes, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- BGBL1/0
- UPC:
- 781810124840
- Item #:
- 316556
BGBL1/0 Lay-In Mechanical Connector Lug, 14 to 1/0 AWG Solid/Stranded Aluminum/Copper Conductor, 3/8 in Stud, 1 Bolt Holes, Aluminum
- MFR #:
- BGBL1/0
- UPC:
- 781810124840
- Item #:
- 316556
Manuals & Documentation
| Catalog Number | BGBL1/0 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Copper And Aluminum Conductor Combinations Up To 90 DEG C |
| Material | Aluminum |
| Special Features | Features: The Lay-In QIKLUG, Type BGBL Is Manufactured From High Strength 6061-T6 Aluminum, UL486B Listed, AL9CU Rated, For Copper And Aluminum Conductor Combinations Up To 90 Degrees C, UL Recognized For Grounding And Bonding, Ensures Reliability, Electro-Tin Plated, Provides Low Contact Resistance, Lay-In Feature, Eases Installation, Stud/bolt Hole Size: 0.28 IN, Dimension D: 0.8 IN, Dimension T: 0.19 IN, Dimension E: 0.83 IN, Dimension K: 0.28 IN, Dimension N: 0.44 IN, Tongue Width: 0.63 IN, Set Screw Type: Slot, Length: 1.63 IN, Height: 1.16 IN, Installation Torque: Yes |
| Standard | UL 486A-B |
| UPC | 781810124840 |
| GTIN | 00781810124840 |
| Item Type | BGBL, Lay-In |
| Temperature Rating | 194 |
| Cross Reference Products | GBL-1/0, GLA-0, LL1014 |
