SQUARE D

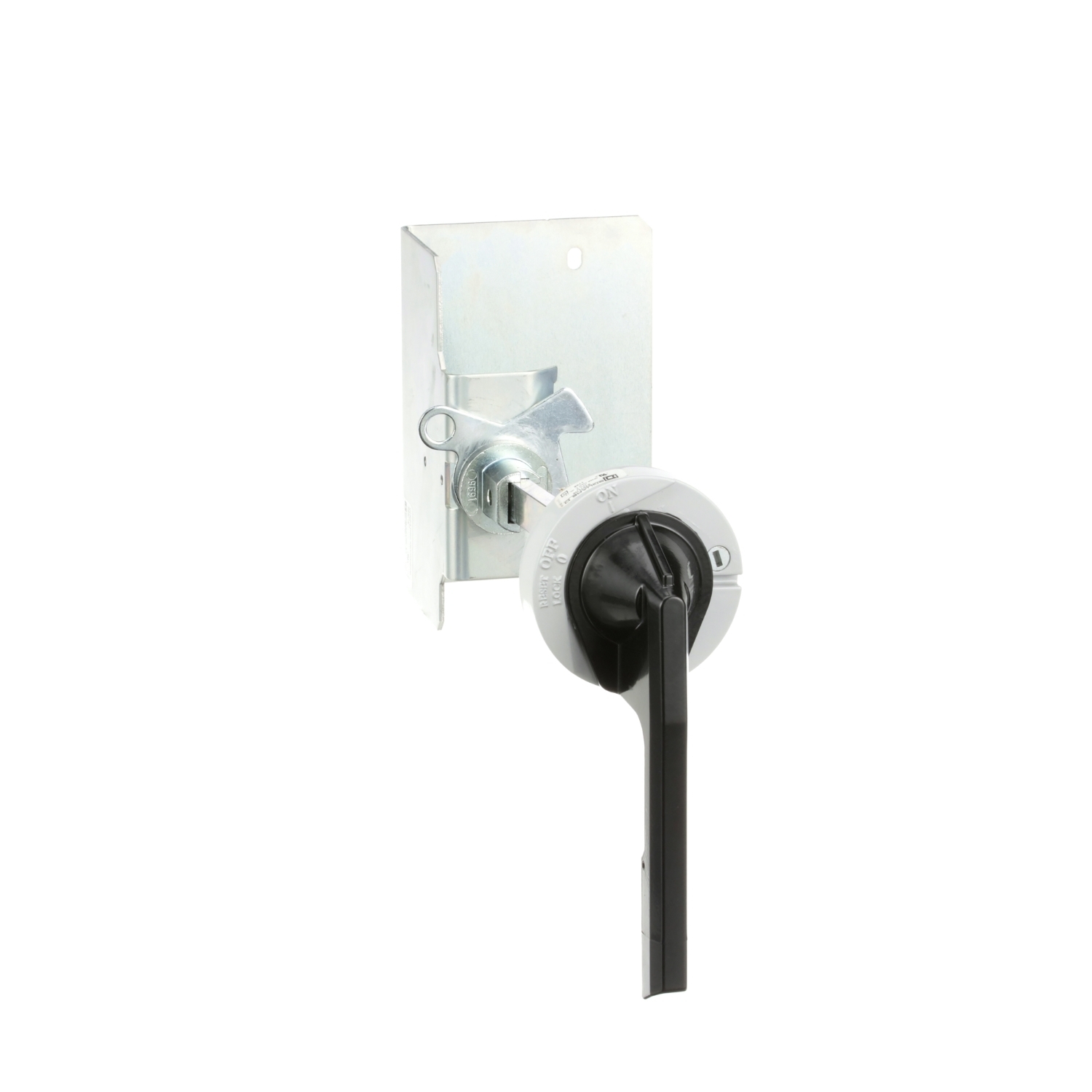

9421LJ1 Standard Shaft Circuit Breaker Operating Mechanism, NEMA 1/3R/12/250 NEMA Rating, Rotary Handle Handle/Operation, Direct Mount Handle Mounting, For Use With PowerPact H or J Frame and MG-NSF 250 A Circuit Breaker

MFR:
Schneider Electric
MFR #:
9421LJ1
UPC:
785901831303
Item #:
31548

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed Mechanism will work with PowerPacT H and PowerPacT J and Compact NSF circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 250A. Proper circuit breaker must be ordered separately. Kit contains a 6 inch long handle that is rated NEMA 1/3R/12. The kit contains a standard shaft. The mounting depth of this kit is 5.5 to 10.75 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Kit is UL component recognized and CSA certified.

Manuals & Documentation
Catalog Number 9421LJ1
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=565433&lang=en-us
UPC 785901831303
GTIN 00785901831303
Cross Reference Products Eaton EHMFS03|Eaton EHMFS04|Eaton EHMVD12B|Klockner 3VL92004EC30|Rockwell ABKT3VDM|Rockwell ABOXP6X430|Rockwell CB2FH|Rockwell K2VDM|Rockwell KT3VD|Rockwell KT3VDM
