XS8C4A1MPP20 OsiSense XS Fixed Proximity Sensor, Inductive, Discrete Output, 1NO-1NC (Programmable) Contact, 24 to 240 V AC
- MFR:
- Telemecanique Sensors
- MFR #:
- XS8C4A1MPP20
- Item #:
- 314337
XS8C4A1MPP20 OsiSense XS Fixed Proximity Sensor, Inductive, Discrete Output, 1NO-1NC (Programmable) Contact, 24 to 240 V AC
- MFR #:
- XS8C4A1MPP20
- Item #:
- 314337

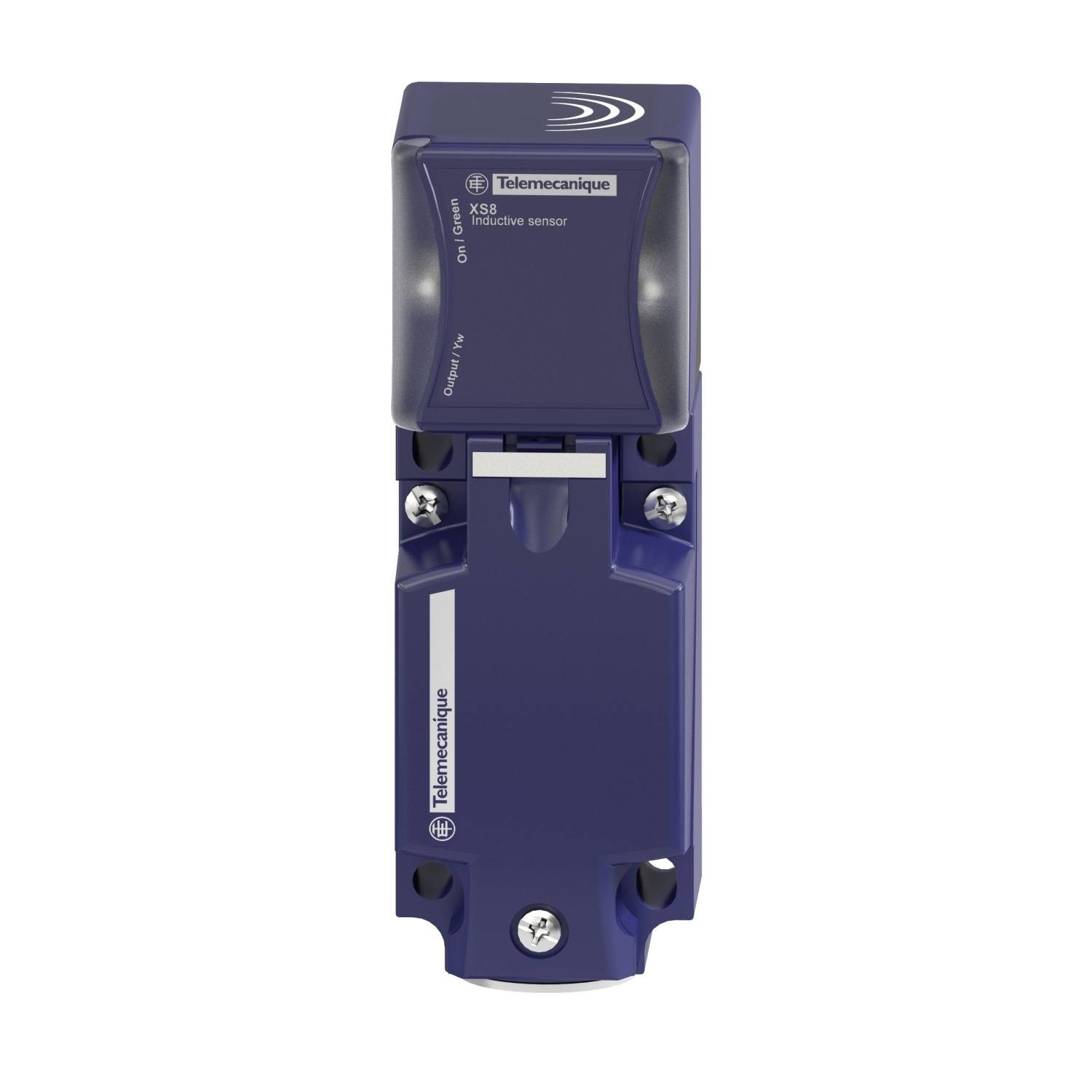

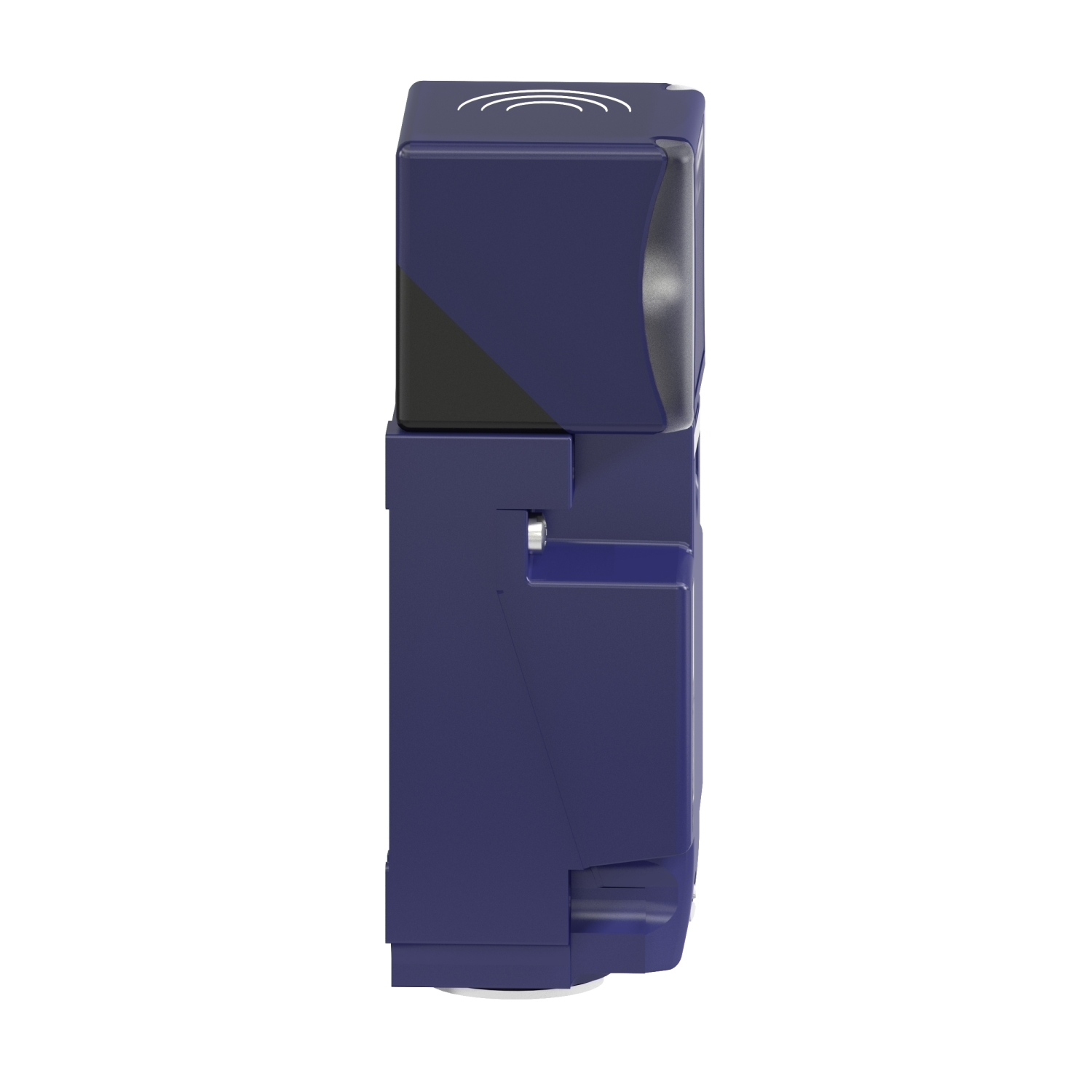

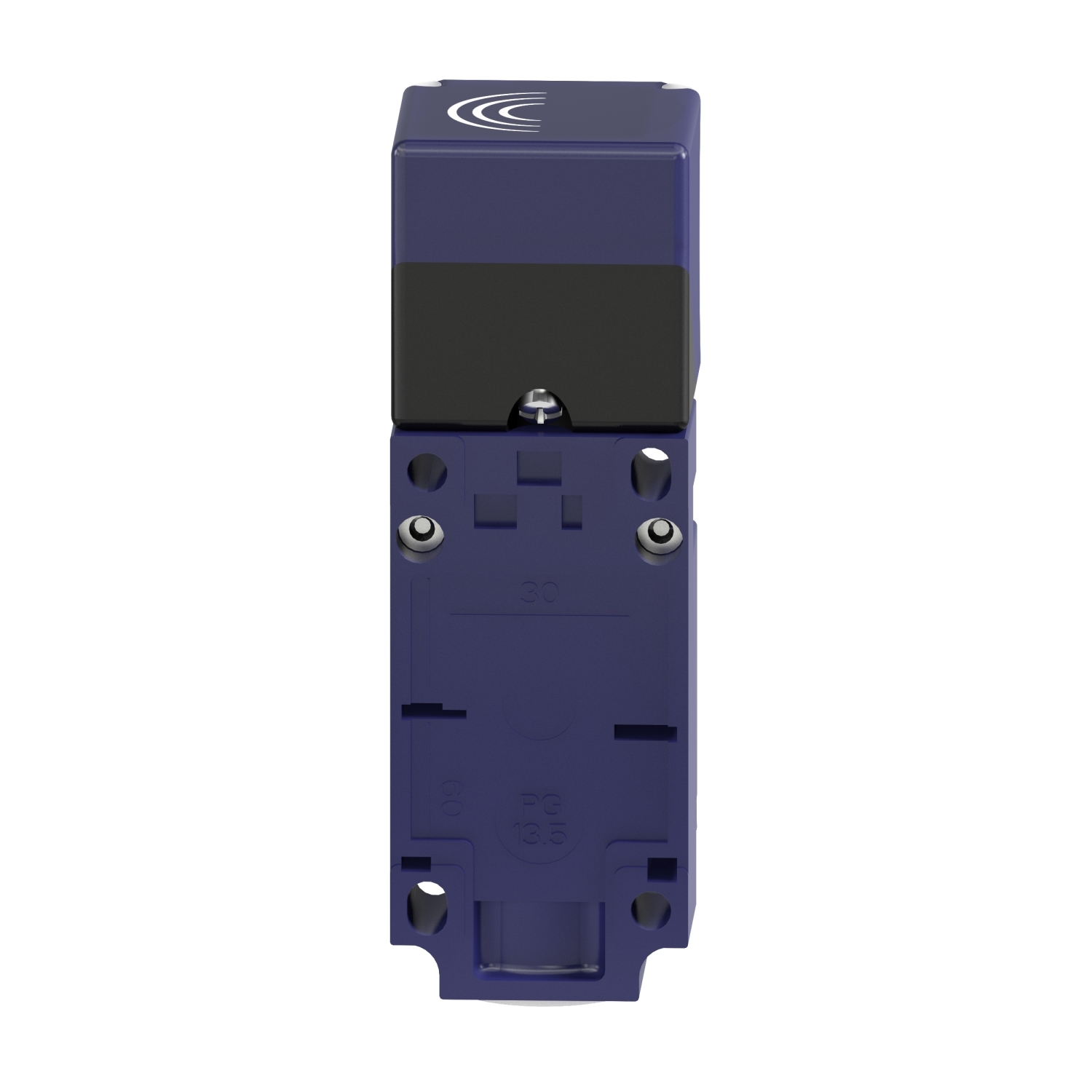

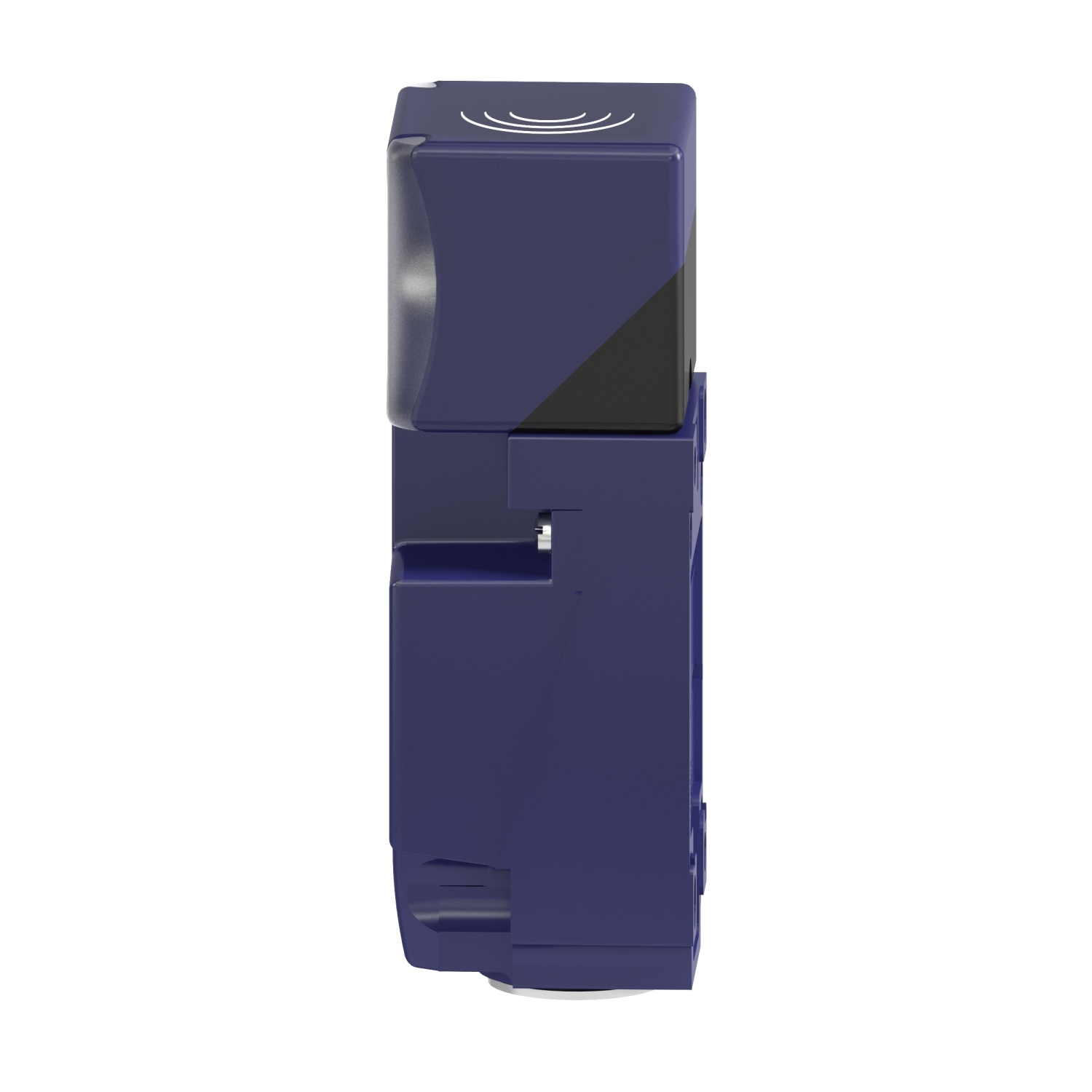

This XS turret head (40 x 40 x 117 mm) with an inductive proximity sensor has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This general purpose flat inductive proximity sensor has an increased range. It is mountable directly on a surface, thanks to 4 screws fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. It can operate in very cold (-25C) and hot environments (+70C). Its increased sensing range makes it ideal for process where precise circulation of objects is not possible. It is CCC, ECOLAB, CSA, UL certified.
Manuals & Documentation
| Catalog Number | XS8C4A1MPP20 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | - |
| Connector | Screw-clamp terminals, 4 x 1.5 mm² |
| Enclosure | PBT |
| Indicator | Supply on 1 LED green);output state 1 LED yellow) |
| Material | Plastic |
| Mounting | Flush |
| Sensing Range | 20 MM,> 0.59...1.57 IN (> 15...40 MM) |
| Sensor | 40 MM,40 MM,INDUCTIVE PROXIMITY SENSOR |
| Special Features | PLASTIC |
| Standard | IP67 conforming to IEC 60529;IP65 conforming to IEC 60529;IP69K conforming to DIN 40050;CE |
| Supply Voltage | 24...240 V AC 50/60 Hz;24...240 V DC |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=181658554&lang=en-us |
| GTIN | 03389119058186 |
| Item Type | Inductive proximity sensor;Form 40 x 40 x 117 |
| Operating Temperature | -25-70 A Degrees C |
